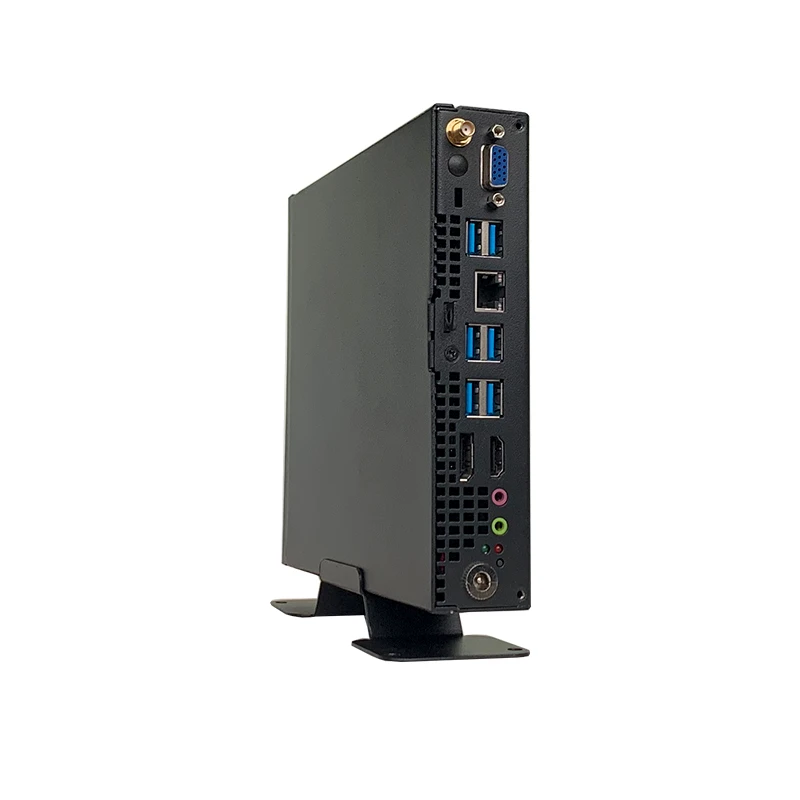

Haiguang HG series office computer host
Haiguang HG-3230 and HG-3350 processors are designed with four core eight threads and eight core 16 threads, respectively, the main frequency is 3.0GHz, the secondary cache is 4MB, and the 16nm process is used, and the power consumption is 55W. These processors provide sufficient computing power and stability in office environments, making them particularly suitable for enterprise environments where multitasking and high-load work are required.
HG-3230 (quad core, eight threads, 3.0GHz, 55W power consumption)
HG-3350 (OcTA-16 threads, 3.0GHz, 55W power consumption).
Specification
|
Processor |
CPU |
Haiguang HG-3230(quad-core, eight-thread /3.0GHz/4MB second-level cache /16nm/55W)
Haiguang HG-3350(OcTA-core, 16-thread /3.0GHz/4MB second-level cache /16nm55W |
|
Chipset |
SOC |
|
|
BIOS |
Centrino, support diskless boot, network wake-up, power-on, watchdog and other functions |
|
|
RAM |
Capacity |
4GB SO-DIMM DDR4 2666MHz memory , Max.32GB |
|
Storage |
SATA interface MINI PCIE M.2 |
2x SATA3.0 1X m.2 PCIE 128G M.2 SSD |
|
Display |
Graphics Output |
JM 7201/AMD RX520 2G Optional VGA+HDMI single display , dual display (same/asynchronous display) 1 × VGA (maximum supported resolution: 1920 x 1080) 1 × HDMI (maximum supported resolution: 4096x2304)
|
|
Internet |
Chip WIFI |
1 × 10/100/1000M(RJ45 LAN) 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
USB 3.0 USB 2.0 COM Power button LED light DC JACK Audio |
4x USB3.0 4× USB2.0up to 2 additional USB2.0 groups optional) 1x COM(Optional) 1 × power button 1 x Power indicator light&1xSSD indicator light 1 × 12-19V DC JACK 1 × LINE-OUT & MIC-IN |
|
Power supply |
Input Rated power |
DC 12-19V 90W |
|
Watchdog |
Output Interval |
Interrupt, System Restart 255 Levels Timing Interval |
|
Physical parameters |
Dimensions |
180mm (L) x 206mm (W) x 38mm (H) |
|
Environment |
Temperature Humidity |
Operating Temperature: 0°C ~50°C Storage Temperature: -20~70°C 5%~90% Non-condensing |
|
Operating system |
Version |
Kylin/UOS/NFS-China / Linux |
Ordering Info
|
Sales model |
Description |
|
AOS-SXD241SJ7T AOS-SXD241SR5T |
FT-D2000 2.3GHz(8-core) 4G RAM 128G SSD 7201 2G Graphics FT-D2000 2.3GHz(8-core) 4G RAM 128G SSD RX520 2G Graphics |
Areas of application
Suitable for education, restaurants, hotels, shopping malls,companymeetings, public affairs and other areas.
