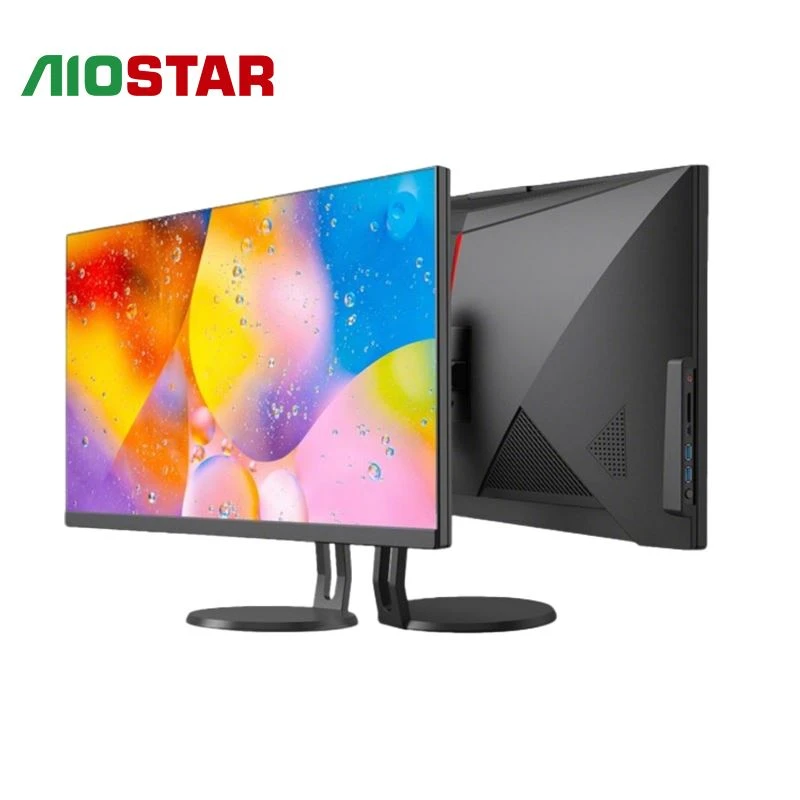

Designed for flexible configuration, this all-in-one PC supports Mini-ITX motherboards, up to 64GB memory depending on the selected platform, high-capacity SSD storage, dual-band WiFi, Bluetooth, and extensive I/O expansion. A push-button hidden camera, dual speakers, adjustable quick-release stand, and optional white or black chassis provide a practical solution for both professional and entertainment environments.
Specifications
|
Touch Size |
Size |
27-inch |
|
Processor |
CPU |
Supports J4125 / J6412 / etc.(optional according to requirements) |
|
Chipset |
Intel® SOC |
|
|
Compatible Motherboard |
Mini-Itx 170*170mm |
|
|
Compatible Discrete Graphics Card Size |
245*135*40mm |
|
|
Memory |
Capacity |
8GB/16GB(optional upgrade) |
|
Storage |
SATA Interface |
256G/512G/1TB SSD(optional) |
|
Display |
Panel Type |
IPS |
|
Network |
Chipset WIFI |
1 × 10/100/1000M Optional dual-band WiFi, Bluetooth 5.2 |
|
I/O |
I/O Interfaces
|
Bottom: DC, HDMI, VGA, COM, USB 2.0/3.0 ×4, RJ45, audio, security lock slot |
|
Power |
Power Supply |
According to motherboard configuration |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Unit Dimensions Screen Tilt Angle |
616mm(L) ×194mm(W) ×463mm(H) |
|
Environment |
Temperature Humidity |
Operating temperature: 0°C ~ 50°C Storage temperature: -20°C ~ 70°C 5% ~ 90%, non-condensing |
|
Operating System |
Version |
Windows 10 / Windows 11 64-bit / Linux / Kylin / UOS |
Ordering Information
|
Sales Model |
Description |
|
F270-ATOM |
N100/N200/N305/N5105/J4125/J6412 |
|
F270-CORE-U |
i3-1215U/i5-1235U/i7-1255U,i3-1315U/i5-1335U/i7-1355U,i5-1435U/i7-1455U |
Application Fields
Suitable for visual inspection, industrial automation, self-service terminals, industrial robots, laser cutting, CNC equipment, and other fields.
F&Q
Q1: What display options are available for this 27-inch all-in-one PC?
A: It supports a 27-inch IPS display with 1920 × 1080 or optional 2560 × 1440 resolution. Refresh rate options include 75Hz, 144Hz, and 165Hz, depending on the selected panel configuration.
Q2: Can this all-in-one PC support a discrete graphics card?
A: Yes. It supports discrete graphics cards with a maximum size of approximately 245 × 135 × 40mm and power consumption within 120W, depending on the motherboard and power supply configuration.
Q3: What processor, storage, and interface options are available?
A: It supports Intel N-series, Celeron, and 12th/13th/14th Gen Core processor platforms. Memory and SSD capacity can be customized, while available interfaces include HDMI, VGA, COM, Type-C, RJ45 LAN, USB 2.0/3.0, audio, a card reader, and a security lock slot.
