What scenarios are 2U Intel industrial PCs suitable for?
This 2U Intel 12th generation CPU industrial PC supports the LGA1700 interface, is compatible with 12th to 14th generation i3/i5/i7/i9 processors, has a maximum TDP of 125W, and has strong and stable performance. It has a built-in H610/B660 chipset, equipped with 64GB DDR4 memory, M.2 SSD and 4 SATA interfaces to meet the needs of high-speed storage and data processing. Equipped with NVIDIA RTX2060 independent graphics card, it supports multi-screen asynchronous display and is suitable for applications such as image recognition and industrial monitoring. It has dual Gigabit network ports, rich I/O and PCIe expansion capabilities, supports network wake-up, watchdog, and power-on start, and is suitable for complex working environments such as industrial automation, edge computing, and visual systems.
Specifications
|
Processor Memory |
CPU |
Support Intel LGA1700 (Gen12&13 i9/i7/i5/i3/G series CPU TDP up to 125W) /I5 12600 |
|
Chipset |
(3.3GHz/6 cores/18MB/Core Graphics 770/10nm/65W |
|
|
BIOS |
Intel® H610/B660 |
|
|
Storage |
Capacity |
2*DDR4 16GB , MAX 64G |
|
Display |
SATA interface |
4*SATA 1*M.2 256G SSD |
|
Network |
M.2 interface |
Independent graphics card NVIDIA RTX2060 VGA+2*HDMI+2*DP single display, dual display, (synchronous/asynchronous display) 1 × HDMI2.0B (maximum supported resolution: 5760x3240) 1 × DP1.4 (maximum supported resolution: 7680x4320) |
|
I/O |
Chipset |
2 × 10/100/1000M(RJ45 LAN) |
|
Onboard Features |
Output |
4x USB3.0 (optional 6 USB3.0 or more) 4× USB2.0 1 × PS/2 keyboard and mouse 1 × LINE-OUT & MIC-IN &1x LINE IN, integrated 6-channel high-fidelity sound |
|
Processor |
PCIE |
1*PCIE3.0 X16 1*PCIE X8 3*PCIEX4 1*PCIEX1 |
|
Power supply |
Input |
ATX 1*24Pin +1*8Pin 600W |
|
Watchdog |
Rated power consumption |
Interrupt, system restart |
|
Physical parameters |
Output |
255-level timer interval |
|
Environment |
Interval |
422mm (L) x 3513mm (W) x 88.8mm (H) |
|
Operating system |
Dimensions |
Windows 10/Windows 11 / Linux |
Ordering information
|
Sales model |
Description |
|
AOS-SSH61F162S262U |
Intel Core i5-12600 3.3GHz 16GMemory 256G SSD RTX2060 6G graphics card |
|
AOS-SSH61I81S2U |
Intel Core i3-12100 8GMemory 128G SSD Intel Core i3-13100 8GMemory 128G SSD Intel Core i3-14100 8GMemory 128G SSD |
|
AOS-SSH61F81S2U |
Intel Core i5-12400 8GMemory 128G SSD Intel Core i5-13400 8GMemory 128G SSD Intel Core i5-14400 8GMemory 128G SSD |
|
AOS-SSH61J81S2U |
Intel Core i7-12700 8GMemory 128G SSD Intel Core i7-13700 8GMemory 128G SSD Intel Core i7-14700 8GMemory 128G SSD |
|
AOS-SSH61X81S2U |
Intel Core i9-12900 8GMemory 128G SSD Intel Core i9-13900 8GMemory 128G SSD Intel Core i9-14900 8GMemory 128G SSD |

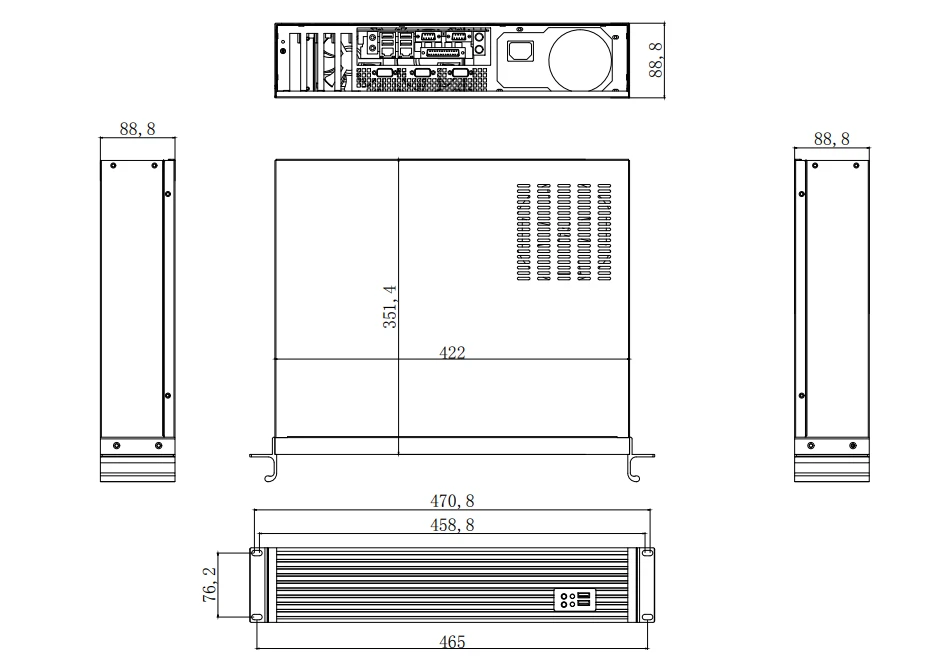

Dimensional drawing
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields.
