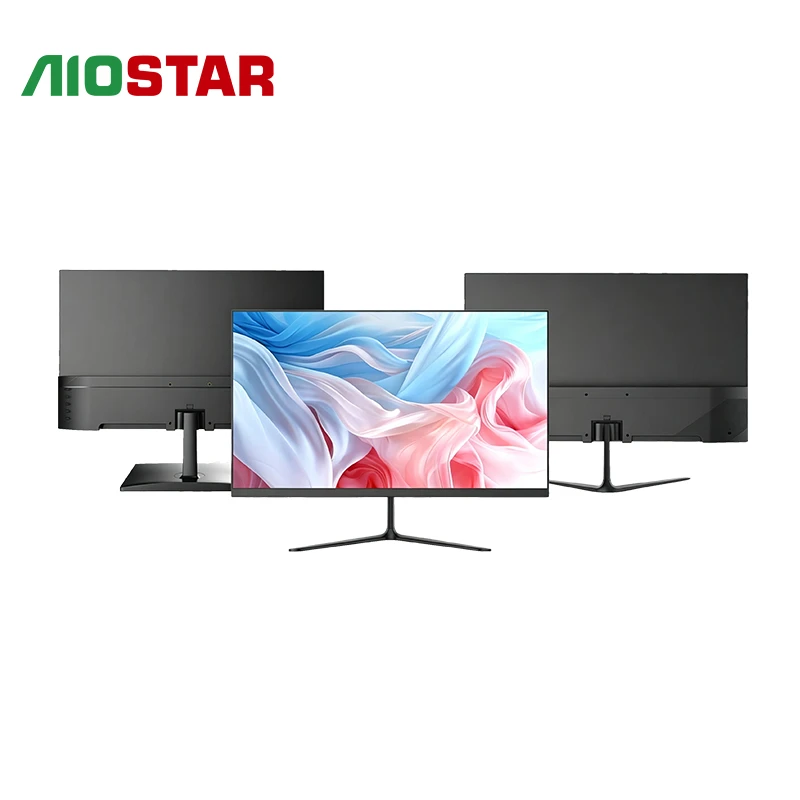

21.45 / 23.8 / 27-Inch IPS Monitor With Full HD Display And Flexible Installation

21.45 / 23.8 / 27-Inch IPS Monitor With Full HD Display And Flexible Installation
Details:
The 21.45 / 23.8 / 27-inch IPS monitor delivers clear Full HD visuals, wide 178° viewing angles, and smooth 60Hz or 75Hz performance. Its slim black design, optional speakers, and flexible size options make it suitable for commercial displays, industrial equipment, self-service terminals, office systems, and professional workstations.
Send Inquiry
Description
Send Inquiry
product-1-1

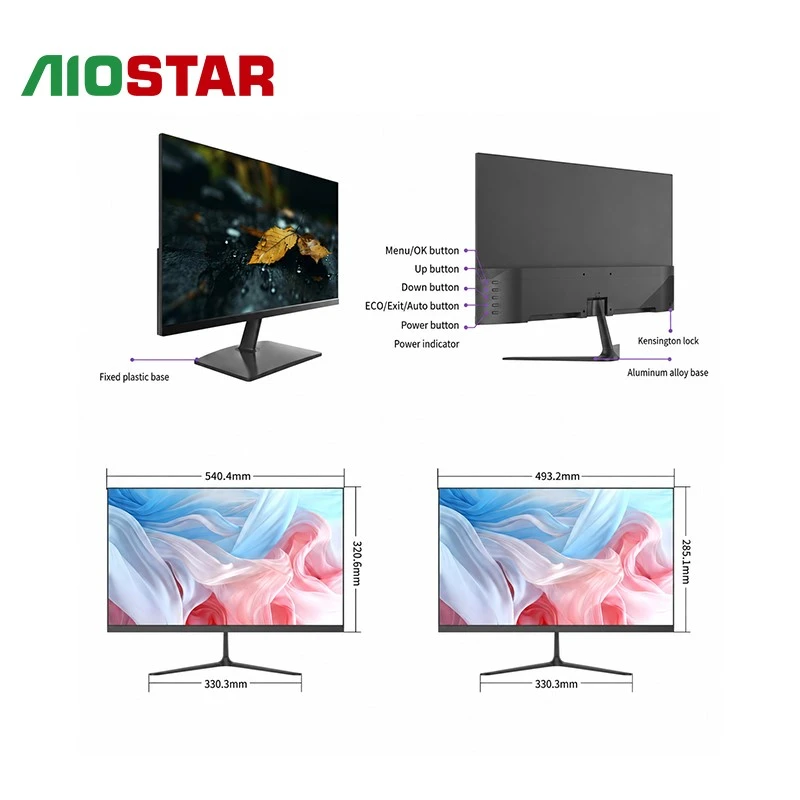

Designed for flexible installation, this IPS monitor supports wall mounting, an anti-theft lock, rear physical control buttons, and optional height-adjustable or fixed stands. With customizable interface configurations and a compact structure, it can be integrated into machine vision systems, automation equipment, CNC machines, digital terminals, and other commercial or industrial projects.

Specifications

Touch

Size

Size
Optional Color

21.45 inch / 23.8 inch
Black

Display

Panel Type
Screen Type
Aspect Ratio
Resolution
Refresh Rate
Brightness
Static Contrast Ratio
Color Temperature
Stand
Viewing Angle

IPS
Flat Screen
16:9
1920*1080
75Hz /60Hz
250cd/㎡
3000:1
Adjustable
Optional: adjustable square quick-release lifting base, fixed plastic base
178°/178°

I/O

Bottom Interface
Rear Buttons / Function

Buttons
Speaker
Installation

According to motherboard configuration
Power button, Menu / Confirm button, Up selection button, Down selection button, ECO Exit / Auto selection button, Anti-theft lock
Power button, Menu / Confirm button, Up selection button, Down selection button, ECO Exit / Auto selection button
Wall mounting

Power

Supply

According to motherboard configuration

Watchdog

Output

Interval

Interrupt, system restart

255-level timer interval

Physical Parameters

Overall Size
Package Size

Screen Tilt Angle
Function Buttons

540.4mm(L) ×330.3mm(W) ×320.6mm(H)
550*103*353mm
Tilt 5°, elevation 20°
Power switch, brightness adjustment

Environment

Temperature

Humidity

Operating temperature: 0°C ~ 50°C Storage temperature: -20°C ~ 70°C

5%~90%, non-condensing

Operating System

Version

Windows 10 / Windows 11 64-bit / Linux / Kylin / Tongxin UOS

Ordering Information

Sales Model

Description

Size Optional

21.45 / 23.8 / 27 inch

Application Fields

Suitable for machine vision inspection, industrial automation, self-service terminals, industrial robots, laser cutting, CNC equipment, and other fields.

F&Q

Q1: What screen sizes are available for this IPS monitor?
A: The monitor is available in 21.45-inch, 23.8-inch, and 27-inch sizes, allowing customers to select the most suitable display size for their equipment or application.

Q2: What display performance does this monitor provide?
A: It features an IPS flat panel with 1920 × 1080 resolution, 60Hz or 75Hz refresh rate, 250 cd/m² brightness, a 3000:1 contrast ratio, and 178° horizontal and vertical viewing angles.

Q3: What installation and stand options are supported?
A: It supports wall-mounted installation and offers an optional height-adjustable quick-release stand or fixed plastic stand. The display also supports approximately 5° downward tilt and 20° upward tilt.
