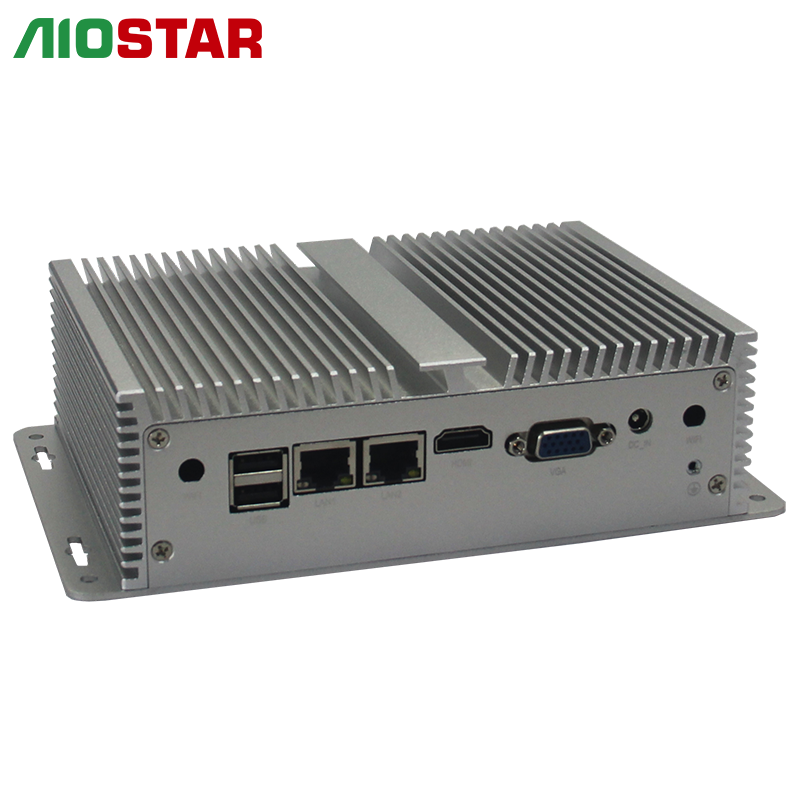

Compact and durable fanless industrial mini computer with dual LAN, multiple COM ports, HDMI/VGA asynchronous display, watchdog support, auto power-on, and CE/FCC/RoHS certification. Ideal for industrial control, POS systems, digital signage, and IoT projects.
Specification Parameters
|
processor |
CPU |
Intel Intel Baytrail J1900 2.0 GHz quad-core processor (J1900/J1800/N2840) Supports Skylake-U processors: I3 6100U, I5 6200U, and I7 6500U Whiskeylake-U I3 /I5 8265U/I7 8565U CPU I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P/Ultra 155H/U,255H/U/185H/U,285H/U |
|
|
chip set |
Intel® SOC |
|
|
BIOS |
AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more. |
|
internal storage |
capacity |
4GB SO-DIMM DDR3 1600MHz memory , Max.8GB 4GB SO-DIMM DDR4 2133 MHz memory , Max.16GB |
|
memory |
SATA Interface MSATA |
1*SATA 128G SSD |
|
show |
chip set output |
CPU-integrated graphics card: HD Graphics HDM + VGA single display; dual displays (同步/asynchronous display) 1 × HDMI (Maximum supported resolution: 920x1080) 1 × VGA (Maximum supported resolution: 1920x1080) |
|
network |
Chip WIFI |
2 × 10/100/1000 Mbit/s (Supports up to 2 RJ45 LAN ports) 1 x WIFI Module support 802.11b/g/n (M.2 half card) |
|
I/O |
USB 3.0 USB 2.0 Power button COM RJ45 LED lamp DC JACK audio frequency |

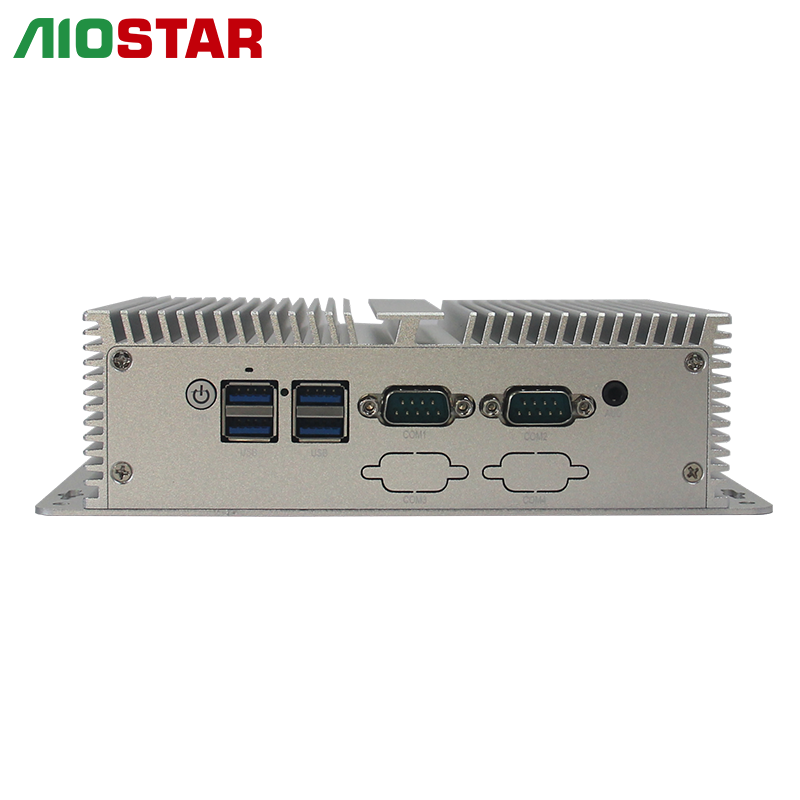

4x USB3.0 2× USB2.0 1 × power button 2 × COM (قابل to expand to 4 groups) 2 × RJ45 1 x Power indicator light & 1 x Hard drive indicator light 1 × DC JACK 1 × LINE-OUT & MIC-IN, featuring the integrated 6-channel audio effect ALC662 sound card chip |
|
source |
import rated dissipation |
DC 12V 45W |
|
watchdog |
output margin |
Intermittent, system restart Level 255 Fixed Time Interval |
|
Physical Parameters |
size |
202mm (L) x 126.5mm (W)x55mm(H) |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5% to 90% with no condensation |
|
operating system |
edition |
Windows 10/Windows 7 / windows8 / Linux |
Order Details
|
ATOM series |
J1800/J1900/J2900 CPU N4000/N4020/N4100/N4120/N5000 /N5030/J4025/J4125/J5005/J5040 J6413/J6412/J6426/N5095 N95/N97/N100/N105/N200/I3 N300/I3 N305 |
|
Core Union Series |
Intel Core U series built-in CPUs: I3 3217U, I5 3317U, I7-3537U, I3-4030U, I3-5005U I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/ I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7 I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P I5-12450H/I7-12800H/I5-13500H/I7-13260H/I5-12450HX/I5-12600HX/I5-13500HX Ultra series: Ultra3, Intel Ultra5 125H/135H/135U, Ultra7 155H/155U/255U/H, Ultra9 185H/185U/285U/H |

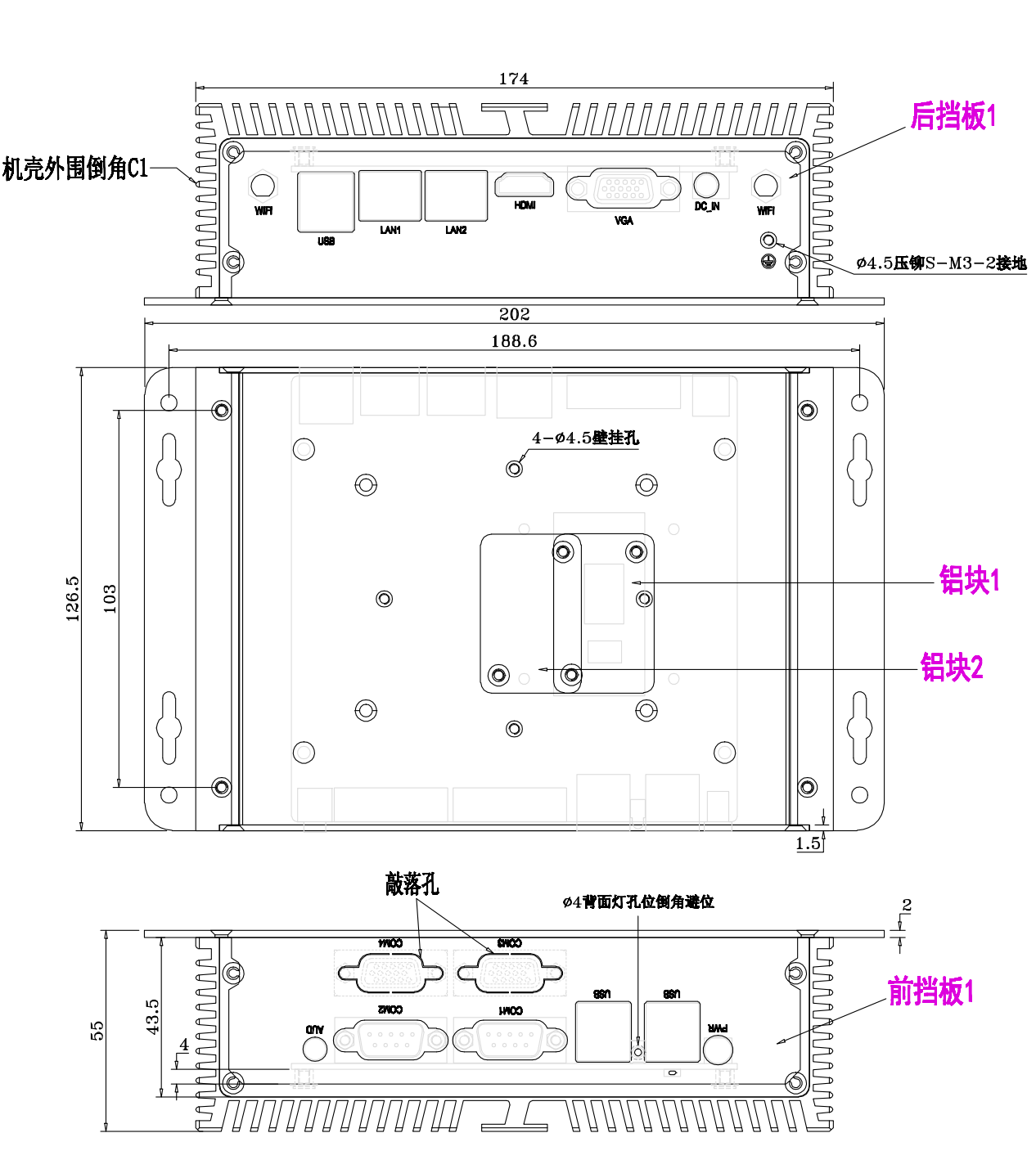

dimensional drawing
FAQ
Q: What operating systems does this Mini PC support?
A: It supports Windows, Linux, and other mainstream operating systems.
Q: Can it run continuously 24/7?
A: Yes. The fanless industrial-grade design is built for stable 24/7 operation.
Q: What display outputs are available?
A: The Mini PC supports HDMI and VGA dual-display output for extended or independent screens.
