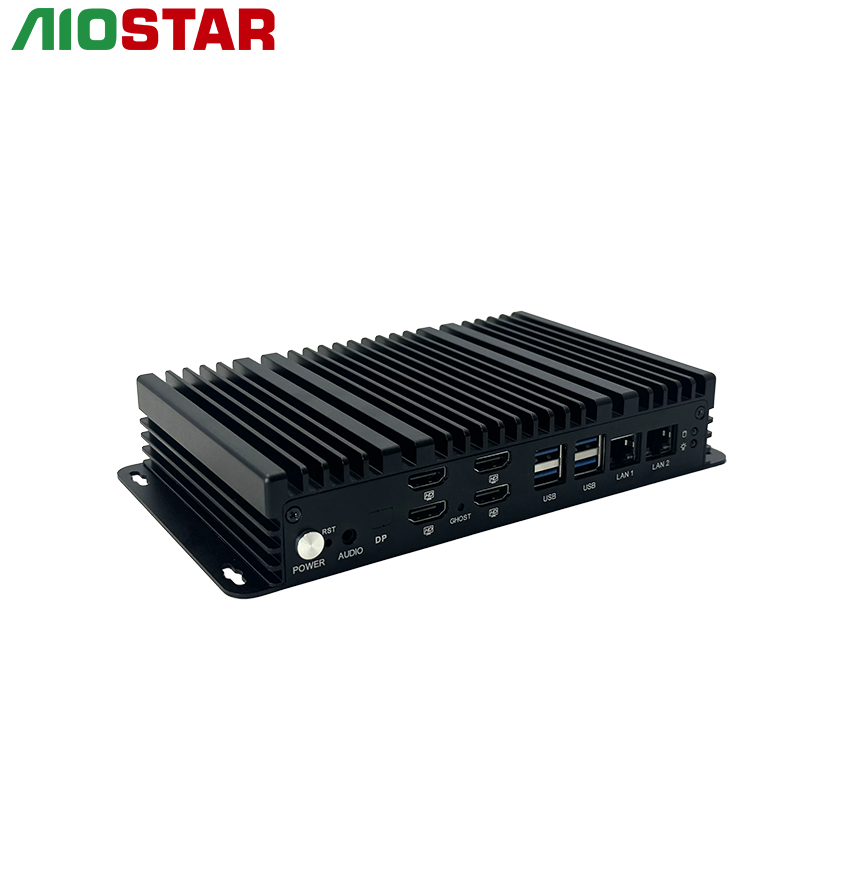

High-performance Mini PCI7 industrial computer with ultra-low power design, fanless cooling, 4 HDMI + DP + LVDS multi-screen support, and advanced features like watchdog, wake-on-LAN, and EUP energy saving.
Specification Parameters
|
processor |
CPU |
Intel Alderlake-based I5 1240P 1.7GHz twelve-core, sixteen-thread processor (I3 1215U 1.2 GHz 6-core 8-thread/I5 1240P 12-core 16-thread/1235U//12450H/13450H/I7 1260P 2.1 GHz 12-core 16-thread/1360P/13620H)
|
|
|
chip set |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions |
|
internal storage |
capacity |
4GB SO-DIMM 2xDDR4 2400 MHz memory , Max.64GB |
|
memory |
SATA interface M.2 |
2.5-inch HDD (optional) 1Xm.2 NGFF/NVME |
|
show |
Integrated Graphics output |
CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe 4* HDMI + DP: single display, dual display, triple display, or quadruple display (同步/异步/vidéo wall display) 1 × HDMI 2.0 (Maximum supported resolution: 4096x2304 at 60 Hz) 1X DP1.4 (Supports resolutions: 4096*2304,5120*2880,7680*4320 at 60 Hz) 4K/5K/8K LVDS/EDP |
|
network |
Chip WIFI |
1 × 10/100/1000M (2*RJ45 ports optional) 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
USB 3.1 USB2.0 Type-c Power button COM LED lamp One-click restoration DC JACK audio frequency |
4x USB3.1 2X USB2.0 1x Type-C (optional) 1 × power button 1 × RS232 COM (2 sets optional) 1 x power indicator light & 1 x hard drive indicator light 1 x One-click restore of the hardware system 1 × DC JACK 1 × LINE-OUT & MIC-IN |
|
source |
import rated dissipation |
DC 12~19V 45-90W |
|
watchdog |
output margin |
Interrupt, system restart Level 255 Fixed Time Interval |
|
Physical Parameter |
size |
211mm (L) x 120mm (W)x38mm(H) |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5%~90% no condensation |
|
operating system |
edition |
Windows 10/Windows 11 / Linux |
|
|
Order Information
|
Sales Model |
explain |
|
AOS-SIAUI41S4D |
Intel I3 1215U,1.2 GHz, 4 GB RAM, 128 GB SSD |
|
AOS-SIAUF41S4D |
Intel I5 1235U,4GB RAM, 128GB SSD Intel I5 1235U,4GB RAM, 128GB SSD Intel I5 1240P,1.7 GHz, 4 GB RAM, 128 GB SSD Intel I5 13450H processor, 4GB RAM, 128GB SSD Intel I5 13450H processor, 4GB RAM, 128GB SSD |
|
AOS-SIAUJ41S4D |
Intel I7 1260P,2.1 GHz, 4 GB RAM, 128 GB SSD Intel I7 13620H processor, 4GB RAM, 128GB SSD Intel I7 13620H processor, 4GB RAM, 128GB SSD |
FAQ
FAQ 1
What processors are available for this Mini PCI7 PC?
It supports Intel Alder Lake-U series: i3-1215U, i5-1240P, and i7-1360P.
FAQ 2
How many displays can it support?
It supports up to 4-screen synchronous or asynchronous display via HDMI, DP, and LVDS.
FAQ 3
Is this device suitable for industrial use?
Yes, it is designed for industrial environments with fanless cooling, CE/FCC/ROHS certification, and stable 24/7 operation.
