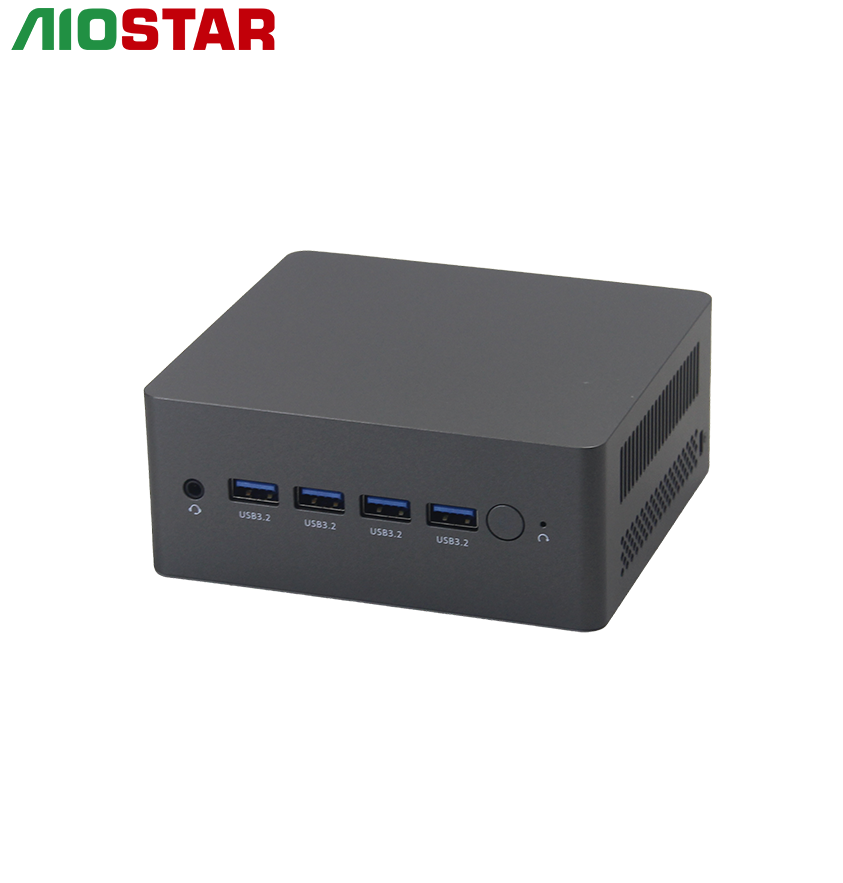

Mini Pc Nuc

processor

CPU

Intel Alder Lake-N Intel® Alder Lake N95/N100/N300/N30

chip set

Intel® SOC

BIOS

AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions

internal storage

capacity

DDR4 8/16/32GB supports up to 3200 MHz (optional)

memory

TF card reader (optional)

SATA 3.0

0G/128G/256G

FPC supports 2.5-inch hard drive/SSD (7mm) (optional)

show

video card

output

Intel® UHD Graphics Gen12

1xDP1.2,4K @60Hz1

I xHDMI2.0,4K@60Hz

1 xTYPE-C, 4K@60Hz (optional)

network

Chip

2x RJ45 ports, Intel 1225/226V chip, dual 2.5G network cards (optional)

I/O

Previous I/O

behind I/o

Side I/O

Extension Slot

audio frequency

1*3.5mm Audio Jack,

4*USB 3.2

1*PWR SW(PWR_LED),

1*RET SW

1*USB3.2

1*USB2.0

1*HDMI,

1*DP,

1*TPYE-C (optional),

1 x M.2 2280 PCle X2 NVME SSD 1 x FPC-to-SATA interface (optional)

Ruiyu ALC269Q

source

import

rated dissipation

DC 12V

Power consumption varies depending on the CPU configuration.

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

Heat dissipation method

124.5mm (L) x 112mm (W)x50.8mm(H)

Intelligent speed-regulating, ultra-quiet fan

environment

temperature

humidity

Vibration Resistance Standard

0~40°C(32~ 104°F)with 0.7m/s airflow

95% @ 40° C (non-condensing)

1.0 Grms, 5-500Hz, Reference IEC60068-2-64 Testing procedures

operating system

edition

Win10 64-bit, Win11 64-bit, Ubuntu, CentOS, etc.

attestation

Safety Certification

Complies with certification requirements such as CCC and RoHS

Sales Model

explain

JS-NUCN9541S2L4W

CPU：N95 3.40 GHz

JS-NUCN9741S2L4W

CPU：N97 3.60 GHz

JS-NUCN1041S2L4W

CPU：N100 3.40 GHz

JS-NUCN10541S2L4W

CPU：N105 3.80 GHz

JS-NUCN15041S2L4W

CPU：N150 3.70 GHz

JS-NUCN2041S2L4W

CPU：N200 3.70 GHz

JS-NUCN3041S2L4W

CPU：N300 3.80 GHz

JS-NUCN30541S2L4W

CPU：N305 3.80 GHz
