The OPS computer is integrated with a standard size chassis and uses a standard 80PIN JAE interface to connect the LCD screen with the OPS interface. Through the pull-out design, the OPS computer part and the LCD screen can be separated conveniently and quickly, which is very convenient for the maintenance, replacement, upgrade of computer components. Customers can also disassemble the OPS computer part without professional knowledge. At present, the market is mainly divided into ARM-based OPS computers (Android OPS computers, Ubuntu, Deepin system OPS computers), X86-based OPS computers (Windows OPS computers, Ubuntu, Deepin system OPS computer), domestic system OPS computer (UOS OPS computer, Ubuntu, Deepin, Kylin system OPS computer), optical transceiver OPS computer (no system supports SDI input or SFP input OPS computer), the four series of OPS computers are all in size The international standard size is 180*119*30mm, which guarantees that the various products of the screen manufacturers can directly use Android OPS computers or windows ops computers, domestic systems (UOS, Deepin, Kylin) OPS computers, and optical transceiver OPS computers without considering the structure For any problem, if you want to use the Android system, you can choose the Android ops computer. If you choose the windows system, you can use the windows ops computer. Customers no longer have to consider the problems of the machine system and software applications. Even if there are defective products, customers can easily send the products by express delivery. Return to the factory for repair and replacement. Greatly reduce logistics and labor costs.

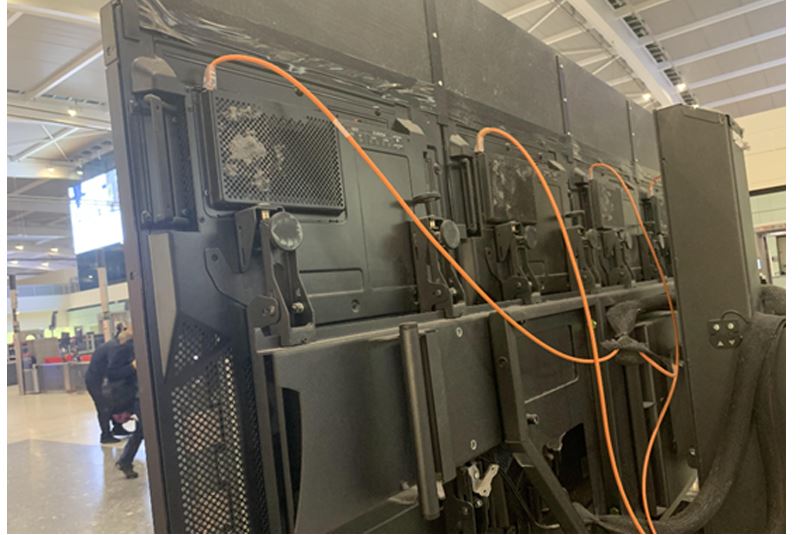

At present, Aiostar has developed a PIS system that supports optical fiber modules for transportation centers such as airports, subway stations, and railway stations. OPS computers are a brand-new technology concept, which refers to large shopping malls, supermarkets, hotel lobbies, restaurants, theaters, etc. , Flight information display, automobile manufacturing, subway PIS system, rail transit ISCS integrated monitoring system, BAS/ACS/OPS system, medical care, retail and other public places where other people's flow converge, and publish business, finance and entertainment through large-screen terminal display equipment Information multimedia professional audio-visual system. Its purpose is to broadcast advertising information to a specific group of people in a specific physical place and a specific time period, so that it can obtain the effect of traffic information in time.
With the rapid development of urban construction, transportation vehicles such as subways, light rails, and high-speed rails are playing an increasingly important role in people's lives. In cities with rail transit in China, citizens spend more than 56 minutes in daily contact with rail transit, and cities such as Beijing, Shanghai, and Shenzhen spend more time in contact with rail transit. Because of the complicated operation of rail vehicles and high guarantee requirements, how to ensure the quality of people's travel is a major research topic for many socially responsible enterprises.
According to market demand, AIOSTAR, which has 6 years of R&D and technology accumulation, has launched a new generation of PIS system industrial grade SDI series OPS modules and optical fiber OPS computer modules, and X86/ARM series computer system optical transceivers.
The OPS module of the PIS system is the most intuitive information interaction platform between the subway company and the passengers. In addition to displaying text information such as the instructions and train schedules in the carriage, it also needs to broadcast real-time dynamic information such as news, live events, and advertisements. In the event of abnormal situations such as fire, obstruction and terrorist attack, dynamic emergency evacuation prompts can also be provided based on the information from the camera in the car.
OPS optical fiber transceiver-OPS video conversion receiver-OPS optical receiving card-OPS fiber into the screen-SDI to OPS conversion interface
-Metro high-speed rail dedicated OPS optical transceiver
Features:
SDI/SFP OPS optical transceiver
Support SDI input (full format, any SDI format) and SFP optical input (choose one of the two)
Support SDI loop out display or HDMI loop out
Support embedded data transmission, support receiving, encoding and decoding audio and video and COM port control signals
Support HD digital component serial interface SDI signal conversion into TMDS
Support board UTP protocol, can be networked for transmission, the transmission distance can reach 20 kilometers
Support SD:525I@59.94HZ,625I@50HZ
HD: 720P@50HZ/59.94HZ/60HZ; 1080I@50HZ/59.94HZ/60HZ; 1080P@23.98HZ/24HZ/35HZ/29.97HZ/30HZ
3G: 1080P/50HZ/59.94HZ/60HZ
Support OPS structure size: 180*119*30MM
Products comply with CE FCC ROHS regulations
Features:
OPS plug-in modular installation
Support ARM ROCKCHIP SOC package RK3328CPU 4-core 1.5G main frequency
Support 2 groups of USB2.0 (support up to 3 groups)
Support 2 groups of USB3.0
Support 10/100/1000Mb adaptive network card, optical interface, dual optical fiber network
Support 3G/4G/5G network, support 2.4G/5G/BT, up to WIFI6
Support onboard 128G EMMC
Support 128G-512G SSD,
Gigabit Ethernet, support simultaneous dual display (HDMI+HDMI) optional
TF card expansion function
local and remote meeting functions such as whiteboard writing, wireless screen transfer (Eshare/Photograph), etc.
4K 60HZ ultra-clear output (3840*2160)
Android 7.1/8.1 system; Linux/Ubuntu16.04/Debian system;
OPS and OPS-C structure size: 180*119*30MM or 180*195*42MM
Products comply with CE FCC ROHS regulations
RK3328 built-in a variety of powerful embedded hardware engines provides excellent performance for high-end applications. Support multi-format video encoding and decoding, high-quality JPEG encoding and decoding, and pre-processing and post-processing of special images. Including 4Kx2K@60fps decoding in h.264, h.265 and other formats, supporting 10bits decoding in H.264 and H.265, and 1080p@30fps encoding in h.265 and h.264 formats.
Features:
OPS plug-in modular installation
Support ARM ROCKCHIP SOC package RK3399 CPU 6 core 2.1G main frequency
Support 2 groups of USB2.0/2 groups of USB3.0
Support 10/100/1000Mb adaptive network card, optical interface, dual optical fiber network
Support 3G/4G/5G network, support 2.4G/5G/BT, up to WIFI6
Support onboard 128G EMMC
Support M.2 NVME 128G-512G SSD,
Support dual Gigabit Ethernet, support asynchronous dual display (HDMI+HDMI)
Support multiple RS232/485 serial ports
Support GPS positioning function
Support TF card expansion function, HDMI IN input function
Support local and remote meeting functions such as whiteboard writing, wireless screen transfer (Eshare/Photograph), etc.
Support Android 7.1/9.0 system; Linux/Ubuntu16.04/Debian system;
Support OTA remote upgrade
Support 4K 60HZ ultra-clear output (3840*2160)
Support OPS and OPS-C structure size: 180*119*30mm/180*195*42mm
Products comply with CE FCC ROHS regulations
RK3399's CPU adopts big.LITTLE core architecture, dual Cortex-A72 large core + four Cortex-A53 small core structure, greatly optimized for integer, floating point, memory, etc., in terms of overall performance, power consumption and core area. Revolutionary improvement in all aspects. The GPU of RK3399 uses the quad-core ARM new generation high-end image processor Mali-T860, which integrates more bandwidth compression technologies: such as smart superposition, ASTC, local pixel storage, etc. It also supports more graphics and computing interfaces, and the overall performance is higher than that The first generation has increased by 45%, supports 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps, • 1080P multi-format video decoding (VC-1, MPEG-1/2/4, VP8), video post processor: de-interlacing, Denoising, edge/detail/color optimization, dual VOP display: resolution supports 4096x2160 and 2560x1600 respectively, HDMI 2.0a supports 4K 60Hz display, supports HDCP 1.4/2.2

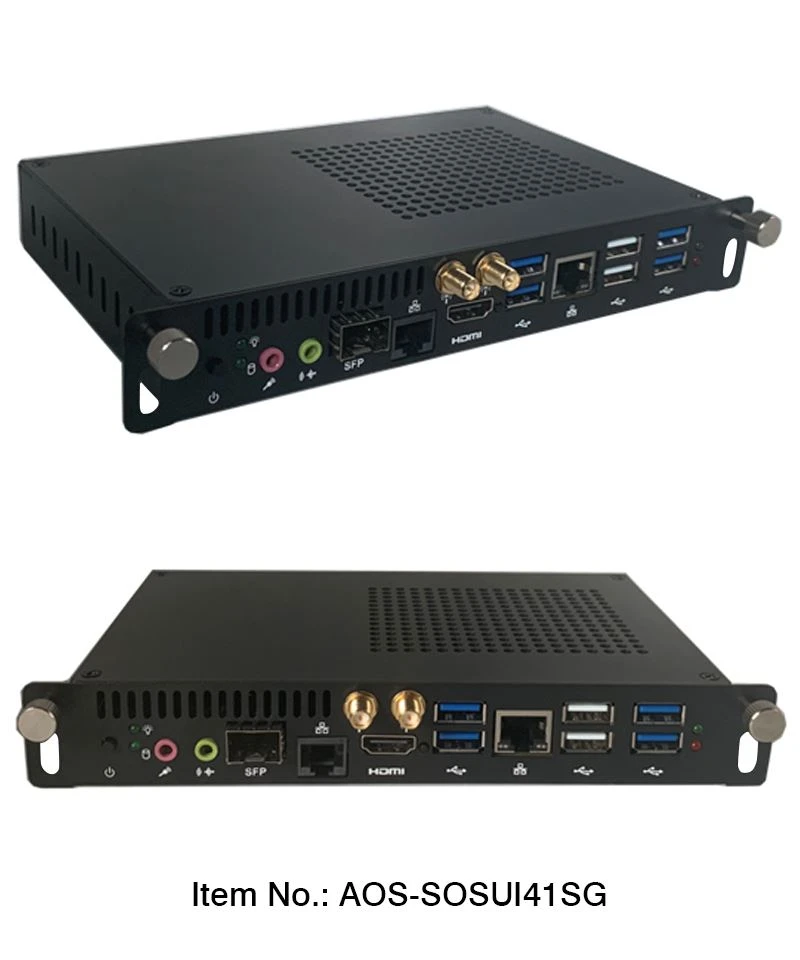

OPS plug-in modular installation
INTEL SOC package i3, I5, I7 CPU ((dual core-quad core-six core-eight core))
Support dual fiber network
Support 3G/4G/5G network, support 2.4G/5G/BT, up to WIFI6
2 groups of USB2.0, 4 groups of USB3.0
dual Gigabit Ethernet, dual display (HDMI+HDMI) optional
Support DDR4 4-16GB memory
local and remote meeting functions such as whiteboard writing and wireless screen transfer
Support the latest Windows, Ubuntu systems
Support network wake-up, power on, watchdog and other functions
OPS structure size: 180*119*30MM
4K 60HZ ultra-clear output (3840*2160)
Products comply with CE FCC ROHS regulations
Industrial-grade HDMI optical transceiver server (support X86/ARM architecture)
Support (Windows/Ubuntu/Android/Debian under the X86/ARM architecture) system and optical transceivers are combined into one, and the computer and optical transceivers are combined into an all-in-one server.
Support 10/100/1000Mb adaptive network card, optical interface, dual optical fiber network
Support HDMI optical multiplexer equipment with one sending and multiple receiving
Support remote USB, COM port control (RS232, RS485, TTL interface)
Support self-adaptation at the sender: 1920*1080p60/50/30/25/24, 1920*1080i60/50, 1280*720p60/50, 720*576i50/p50, 720*480i60/p60, etc.
Support I3/I5/I7CPU under X86 architecture (dual core-quad core-six core-eight core) + 4-32GB memory + 128-4TB storage
Support RK3328 4-core/RK3288 4-core/RK3399 6-core/RK3399PRO octa-core/RK3588 CPU 8-core (dual-core-quad-core-six-core-octa-core) + 1-8GB memory + 8-4TB storage under ARM architecture
Support multiple storage methods of SSD+HDD+EMMC+TF card
Support fiber transmission -20 Km transmission
Comply with ISO13818 (MPEG-2), ISO/IEC14496 (MPEG-4) and other standards, audio mode: MPEG Audio Layer 2, sampling frequency: 32,44.1,48 kHz
Support OSD function, support Win2000/Linux, provide API development kit
Support server structure size: 429*210*44MM
Support 4K 60HZ ultra-clear output (3840*2160)
The product is suitable for video surveillance, subway PIS, store advertising, digital signage and other occasions
Products comply with CE FCC ROHS regulations
PS plug-in modular installation
Today, the OPS module market has formed a complex competitive landscape. This is just a normal phenomenon when an emerging industry has developed to a certain stage. Only in the fierce competition can innovation lead the information release of airports, stations and other transportation hubs to attack again in its field. Here comes another hot breeze. Aixin Microelectronics is the most comprehensive manufacturer of R&D, production and sales of OP S computer product line in China, and also provides OEM
/ODM customized services, the current main product lines are:
OPS computer: Baytrail-J1800/J1900/Baytrail-CR Z8350/GeminiLake-N4000/N4100/J4105/J4005 CPU/HM76+2-3 generation CPU/HM86+4 generation CPU/Skylake-u+6-7 generation CPU/Whiskeylake -u+8-10 generation CPU/tigerlake-u+11 generation CPU.
OPS-C computer: HM76+2-3 generation CPU/HM86+4 generation CPU/H77+2-3 generation CPU/H81+4 generation CPU/H110+6-7 generation CPU/H310+8-9 generation CPU/H410 +10-11 generation CPU.
Independent display OPS computer: H81+4 generation CPU+ independent display GT730/960/1030/1050/1050TI/1650 2-4GB/ H110++ 6-7 generation CPU+ independent display GT730/960/1030/1050/1050TI/1650 2- 4GB/ H310+8-9 generation CPU + independent display GT730/960/1030/1050/1050TI/1650, 1060/1070 2-4-6GB graphics card.
Localized OPS computer: domestically-made CPU Feiteng FT-2000/4/Zhaoxin KX-6000 series CPU + domestically-made operating system (UOS/Deepin/Kylin) series OPS-C computer
Customized OPS-C computer: OPS-C computer with DVD drive series / ultra-thin 27MM series OPS-C computer / with wireless router series OPS-C computer / with capture card series OPS-C computer / with dual network ports and three network ports /Optical transceiver OPS module/SDI OPS module/Optical fiber SFP OPS computer module/Dual HDMI series OPS computer.
Android OPS computer: RK3328 Android OPS computer/RK3288 Android OPS computer/RK3399 Android OPS computer/RK3399PRO Android OPS computer/RK3588 Android OPS computer series/4K 30HZ/4K 60HZ/ 8K display OPS computer.
OPS adapter board: support 3USB+HDMI/support 6USB+HDMI/support 5USB+HDMI+RJ 45 network port/support 5USB+HDMI+VGA+RJ45 network port/support LVDS drive screen/support Vbyone drive screen.
