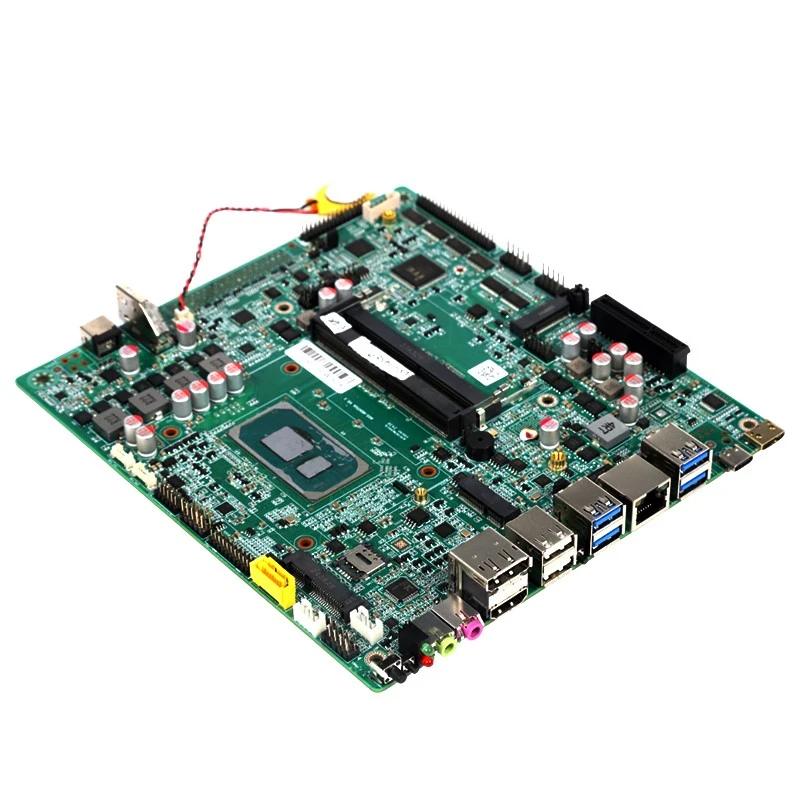

The Mini ITX motherboard has a lot of features
Supports Intel® Tiger Lake series processors, including Intel Core i5-1135G7 (2.4 GHz, 4 cores, 8 threads, 28W TDP) and i3-1115G4 and i7-1165G7 (2.8 GHz, 4 cores). This processor combination provides powerful computing performance for applications that require high processing power, such as efficient computing, multitasking, etc. Memory supports up to 64GB of DDR4 memory at frequencies up to 2133/2400 MHz. This makes the motherboard in the processing of memory-intensive tasks, with strong scalability, suitable for big data processing, video editing and other applications requiring high memory bandwidth. It is equipped with one SATA 3.0 port and one M.2 port supporting NVMe/SATA 2280. This provides a flexible choice of storage devices.
Specification parameter
|
processor
|
CPU |
Support Intel®Tiger LAKE Core™ i5 1135G7 2.4G 4 core 8 threads (28W) I3 (1115G4) /I5 (1135G7) /i7(1165G7 2.8G/4 cores) processor |
|
chipset |
Intel® SOC |
|
|
BIOS |
The AMI is 32Mbit and supports disk-free startup, wake up on the network, power-on, and watchdog functions |
|
|
Internal memory |
容量 |
4GB DDR4 2133/2400 MHz memory , Max.64GB |
|
store |
SATA interface M.2 Ports |
1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 |
|
reveal |
chipset exportation |
CPU integrated Graphics card HD Graphics VGA+HDMI+DP+LVDS/edp Single display, dual display, three, four display (same/asynchronous display) 1 × VGA (Max support resolution: 1920×1080) 1 ×HDMI (Max support resolution: 3840x2160 60HZ) 1 ×DP (Max support resolution: 7680x4320 60HZ) |
|
network |
Chip WIFI/3G/4G |
1 × 10/100/1000M(RJ45 LAN)Optional dual network ports 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
POWER Rest Audio frequency DP HDMI USB 2.0 USB 3.0 GOST RJ45 Type-c HDMI IN DC JACK HDMI |
1x Switch 1x Restart 1 × LINE-OUT & MIC-IN 4x USB3.0 1× DP 1 × HDMI 2.0 2 × USB2.0 4 × USB3.0 1X System restoration 1 × RJ45 Net interface 1 × type-c (USB2.0) 1 × HDMI IN 1 x DC JACK interface (Post I/O optional) 1 x HDMI2.0 interface (post-I /O optional) |
|
Onboard function |
COM port USB2.0 PCIEX4 MINI PCIE LVDS GPIO LED EDP SPK PANEL SATA
|
6*RS232 (2 groups of RS422/485 optional) Optional (default single COM) 1*USB pin (expandable 2*USB2.0) supports up to 5 groups of USB2.0 1*PCIEX4 1*MINIPCIE(3G/4G) 1*LVDS 1 x 8 In and 8 out of GPIO 1*SATA LED 1*EDP(Optional) 1*SPK(3-5W) 1*Front panel 1*SATA |
|
Power source |
input Rated power consumption |
DC JACK 12V-19V 60W |
|
Guard dog |
exportation interval |
The system restarts. Procedure 255 level timing interva |
|
Physical parameter |
dimension |
172mm (L) x 190mm (W) |
|
environment |
temperature humidness |
Operating temperature: 0°C ~50°C Storage temperature: -20 °C ~70°C 5% to 90% no condensation |
|
Operating system |
edition |
Windows 10/Windows 11/ Linux |
Ordering information
| Sales model | Instructions |
|
AOS-MMTU11IOA |
I3 1115G4 3.0G 2/4 |
|
AOS-MMTU11FOA |
I5 1135G7 2.4G 4/8 |
|
AOS-MMTU11JOA |
I3 1165G7 3.0G 4/8 |

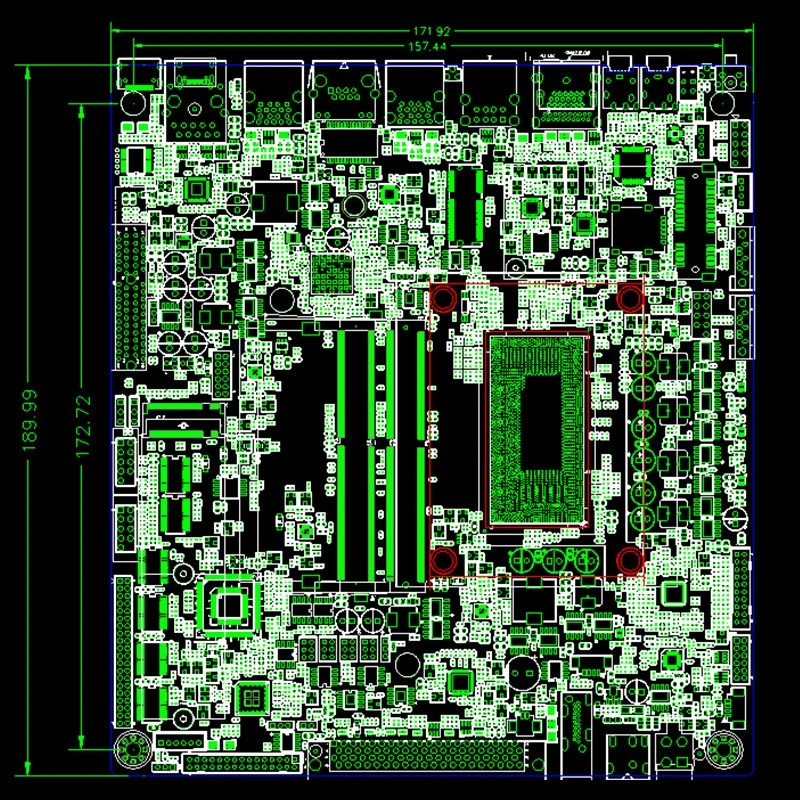

Dimension drawing
