Products Description

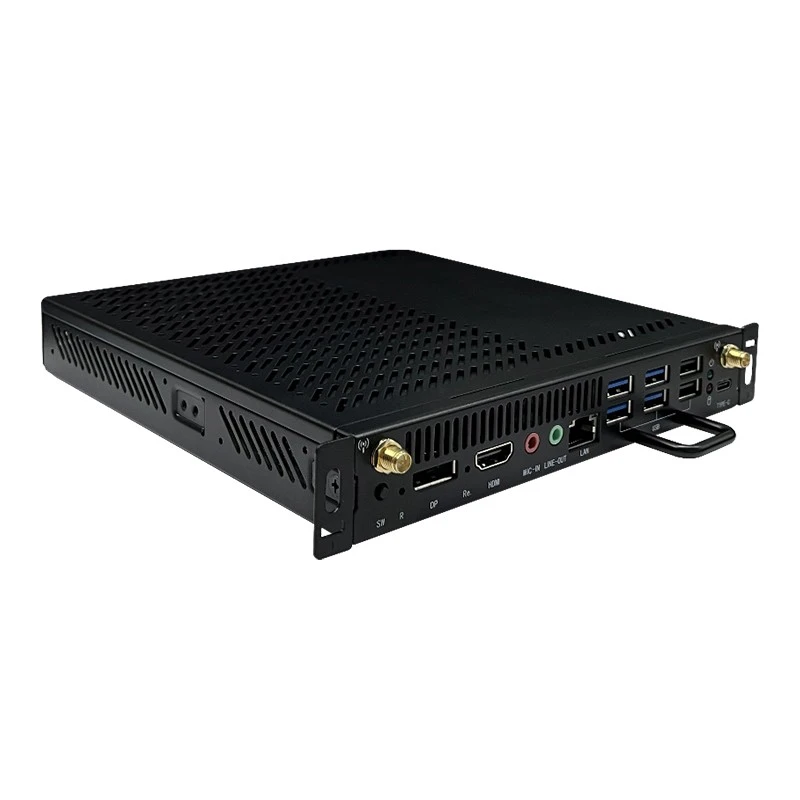

The AOS-SOHAUF41SE OPS-C PC features Intel Alder Lake-U processors (I3-1220P/I5-1240P/I7-1260P) with modular OPS pluggable installation. Equipped with 6 USB ports (3×USB3.1, 3×USB2.0), 10 Gigabit network ports, and 1×TYPE-C, plus HDMI/OPS interface supporting HDMI 2.0 + DP1.4. Video output supports 4K, 5K, and 8K resolution. Supports wake-on-LAN, power-on boot, and watchdog functions. CE, FCC, and ROHS compliant. Dimensions: 180×195×30mm.
Specification parameter
|
Processor |
CPU |
Intel Alderlake-u I5 1240P 1.7GHZ 12 cores and 16 threads (I3 1220P 1.5G 10cores 12threads/I5 1240P 12cores 16threads/I7 1260P 2.1 12 cores and 16 threads) |
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, Support diskless boot, wake on LAN, power-on boot, the watchdog function |
|
|
Memory |
Capacity |
4GB SO-DIMM 2xDDR4 2400 MHz memory , Max.32GB |
|
Storage |
SATAconnector M.2 |
2.5〞HDD(optional) 1Xm.2 NGFF/NVME |
|
display |
chipset |
CPU Integrated video card Graphics for 12th Gen /Iris Xe HDMI+HDMI +DP Single/ double/three display (same/asynchronous/splicing display) 1 ×HDMI2.0B ((Maximum supported resolution：4096x2304 60HZ) 1X DP1.4 (supported resolution：4096*2304,5120*2880,7680*4320 60HZ)4K/5K/8K |
|
Internet |
Chip WIFI |
1 × 10/100/1000M 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
USB 3.1 USB 3.0 Type-c Power button OPS connector COM LED Light one-key reset DC JACK Audio |
3x USB3.1 3× USB2.0 1x USB3.0 type-c 1 × power button 1 × OPS connector(80pin) 1 × RS232 COM(optional) 1 x Power indicator light & 1 x Hard drive indicator lights 1 x hardware system is restored in one key 1 × DC JACK 1 × LINE-OUT & MIC-IN |
|
Power supply |
Input Rated power consumption |
DC 12~19V 60W |
|
Watchdog |
Output Interval |
Interrupts, system restart 255 time interval |
|
Physical parameters |
Dimensions |
180mm (L) x 195mm (W)x30mm(H) |
|
Environment |
Temperature Humidity |
Working temperature：0°C ~50°C Storage temperature：-20~70°C 5%~90% No condensation |
|
Operating system |
Version |
Windows 10/Windows 11 / Linux |
Ask and answer yourself
FAQ
Q:Does the i5-1240P processor support graphics cards?
A:
From an architectural perspective, the i5-1240P uses Intel's 12th generation Alder Lake design and features a high-efficiency Iris Xe integrated graphics card. Unlike some traditional models without integrated graphics, the i5-1240P OPS-C Computer can directly output video signals from interfaces such as HDMI, DP, and Type-C, and also supports multi-display collaborative output. When paired with a discrete graphics card, it can accelerate video decoding or reduce power consumption through the integrated graphics. Compared to low-end CPU solutions that can only output a single display, the i5-1240P OPS-C Computer balances performance and flexibility in display and graphics processing, making it suitable for a wide range of embedded and multimedia applications.
Ordering information
|
Sales model |
state |
|
AOS-SOHAUI41SE |
Intel I3 1220P 1.5GHz 4GDDR 128G SSD |
|
AOS-SOHAUF41SE |
Intel I5 1240P 1.7GHz 4GDDR 128G SSD |
|
AOS-SOHAUJ41SE |
Intel I7 1260P 2.1GHz 4GDDR 128G SSD |
SIZE
Areas of application
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other areas.
