Specification Parameters

processor	CPU	Zhaoxin KX-7000 (Eight-core, eight-thread / 3.6 GHz / 4 MB L2 cache / 16 nm process / 70 W power consumption)
	chip set	SOC
	BIOS	BaiAo supports features such as diskless startup, network wake-up, power-on startup, and watchdog.
internal storage	capacity	4GB SO-DIMM DDR4 2400 MHz memory , Max.32GB
memory	M.2 Interface SATA	128G SSD 1X 2.5' SATA
show	integrated graphics output	HDMI + HDMI + DP: single display, dual displays, or triple displays (同步/asynchronous display) 1 × HDMI port (maximum supported resolution: 3840x2160 at 60 Hz) on the front panel 1 × HDMI (Maximum supported resolution: 3840x2160 at 30 Hz) JAE 80PIN 1 × DP (Maximum supported resolution: 3840x2160 at 60 Hz) JAE 80PIN

network	Chip WIFI	1 × RTL8111H 10/100/1000M(RJ45 LAN) 1 x WIFI Module support 802.11b/g/n (M.2 half card)

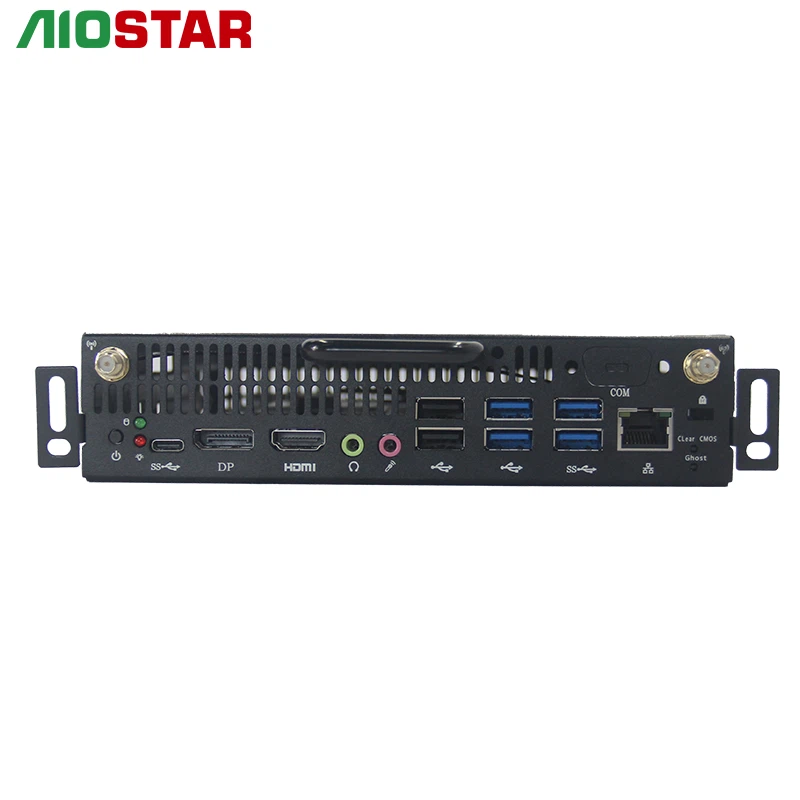

I/O	USB 2.0 USB 3.0 TYPE-C Power button Reset COM OPS Interface LED lamp DC JACK audio frequency	4x USB3.0 2× USB2.0 1X TYPE-C 1 × power button 1 × Reset 1 × COM (optional) 1 × OPS interface (80 pins) 1 x power indicator light & 1 x hard drive indicator light 1 × DC JACK 1 × LINE-OUT & MIC-IN, integrated with the 6-channel audio ALC662 sound card chip
source	import rated dissipation	DC 12~19V 60-90W
watchdog	output margin	Interrupt, system restart Level 255 Fixed Time Interval
Physical Parameter	size	180mm (L) x 195mm (W) x 42mm (H)
environment	temperature humidity	Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5%~90% no condensation
operating system	edition	Windows 10/Windows 7/Ubuntu/Linux/Baidu Kylin/Zhongke Fangde/CentOS

Order Information

Sales Model	explain
AOS-SOZK7041SC	KX-7000,3.6 GHz, 4 GB RAM, 128 GB SSD
AOS-SOZK7082SC	KX-7000,3.6 GHz processor, 8 GB RAM, 256 GB SSD
AOS-SOZK7016SC	KX-7000,3.6 GHz processor, 16 GB RAM, 512 GB SSD
