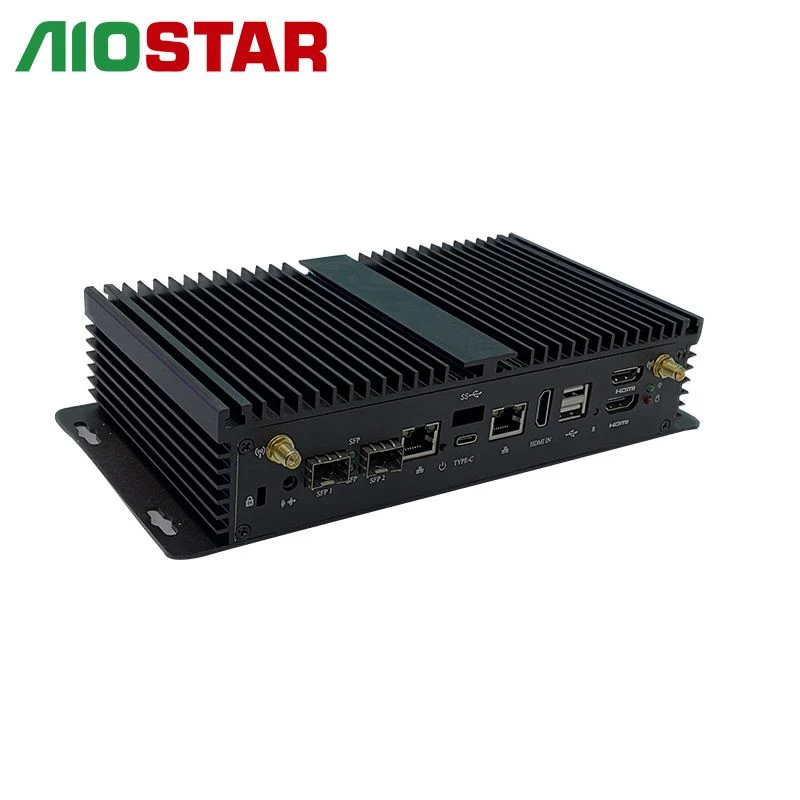

Designed for flexible industrial integration, this fanless IoT gateway supports optional dual-display output, HDMI input, WiFi 6, 4G connectivity, CAN bus, RS232/RS485, GPIO, LVDS, and multiple SATA storage expansions. Its compact, low-power design makes it suitable for customized IoT, automation, commercial display, and smart equipment projects.
Specifications
|
Processor |
CPU NPU |
ARM series ROCKCHIP RK3568 quad-core 2.0GHz 0.8Tops |
|
|
Chipset |
SOC |
|
Memory |
Capacity |
2GB SO-DIMM DDR4 2166 MHz memory , Max.4GB |
|
Storage |
EMMC TF Card M.2 SATA |
16G, Max.64GB Supports 64G Supports 128G Supports 1-6 groups of SATA |
|
Display |
Chipset Output
|
CPU integrated HD Graphics HDMI + HDMI single display, dual display(synchronous / asynchronous display) 1 × HDMI(maximum supported resolution：3840x2160) 1 × HDMI(maximum supported resolution：1920x1080) 1 × HDMI IN(maximum supported resolution：1920x1080) |
|
Function |
MINI PCIE COM口 LVDS Amplifier GPIO CAN |
1X MINI PCIE(3G/4G) 2X RS232+1X RS485(optional) 1X LVDS 5W 1 × 4-in / 4-out GPIO 2 X CAN |
|
Network |
Network WIFI |
1 × 10/100/1000M electrical Ethernet(2 groups of RJ45 LAN optional) 1 × 10/100/1000M fiber optic(2 groups of fiber optic network optional) 1 × AP6398SV Fn-Link WIFI 2.4G / 5G dual-band + BT(optional)/ WIFI 6(6275S)optional |
|
I/O |
USB 2.0 USB 3.0 IR Power button Reset CAN LED Light DC JACK Audio |
2× USB2.0(up to 3 groups supported) 2x USB3.0(up to 4 groups optional) 1X IR infrared 1 × power button 1 × upgrade 1 × CAN 1 x LED indicator 1 × DC JACK 1 × LINE-OUT & MIC-IN |
|
Power |
Input Rated Power Consumption |
DC 12~19V 20W |
|
Physical Parameters |
Dimensions |
214mm (L) x 119mm (W)x52mm(H) |
|
Environment |
Temperature Humidity |
Operating temperature：0°C ~50°C Storage temperature：-20~70°C 5%~90%, non-condensing |
|
Operating System |
Version |
Android 11/ubuntu/ Linux |
Ordering Information
|
AOS-SER35216GB |
RK3568 2.0GHz 2G Memory 16G EMMC |
|
AOS-SER35416GB |
RK3399 2.0GHz 4G Memory 16G EMMC |
|
AOS-SER35432GB |
RK3399 2.0GHz 4G Memory 32G EMMC |
Application Fields
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government information disclosure, and other fields.
F&Q
Q1: What processor and AI performance does this industrial-grade fanless IoT gateway provide?
A: It is equipped with the Rockchip RK3568 quad-core processor running at up to 2.0GHz and includes a 0.8 TOPS NPU for lightweight AI inference and edge computing applications.
Q2: What network interfaces and wireless options are available?
A: It supports Gigabit RJ45 Ethernet and Gigabit fiber networking, with optional dual RJ45 LAN or dual fiber interfaces. Optional dual-band WiFi, WiFi 6, Bluetooth, and 3G/4G expansion are also available.
Q3: What industrial interfaces and expansion functions does it support?
A: It supports optional RS232, RS485, CAN bus, GPIO, LVDS, HDMI input, Mini PCIe, multiple USB ports, TF card, M.2 storage, and up to six SATA interfaces, depending on the customized configuration.
