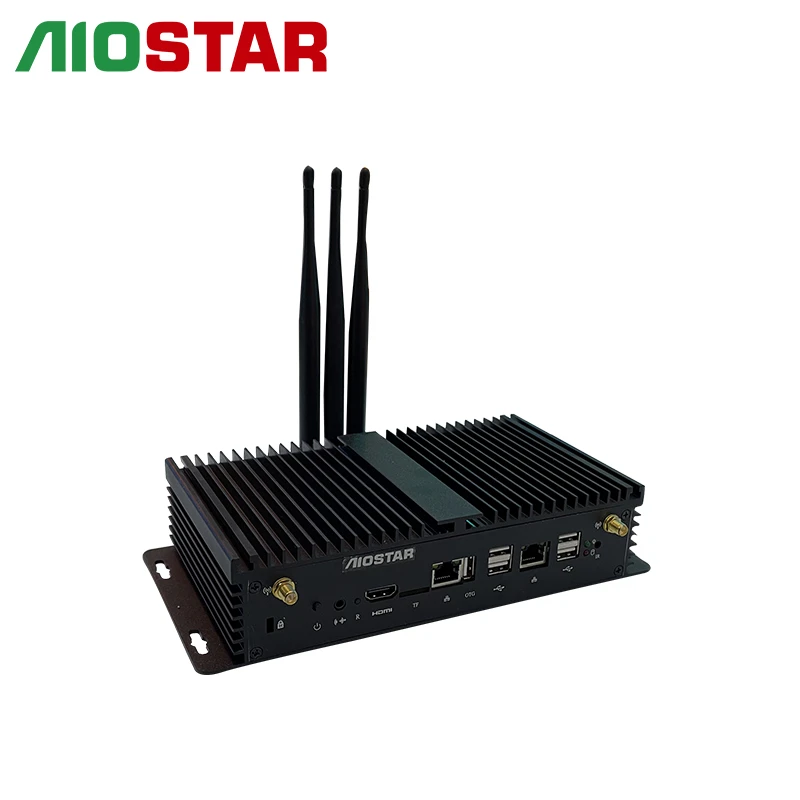

Designed as both a media player and IoT gateway, this compact device supports Android and Linux operating systems, automatic power-on, optional dual-band WiFi, Bluetooth, 3G/4G, mSATA SSD, and RS232/485 communication. It is suitable for customized commercial display and intelligent terminal projects.
Specifications
|
Processor |
CPU |
ARM series ROCKCHIP RK3328 quad-core 1.5GHz |
|
|
Chipset |
SOC |
|
Memory |
Capacity |
1GB SO-DIMM DDR3 1333 MHz memory , Max.2GB |
|
Storage |
EMMC TF Card MSATA |
8G, Max.64GB Supports 64G 128G-1TB SSD (optional) |
|
Display |
Chipset Output |
CPU integrated HD Graphics HDMI single display 1 × HDMI(maximum supported resolution：3840x2160) |
|
Network |
Network WIFI 3G/4G |
1 × 10/100M(RJ45 LAN)+1× 10/100/1000M(optional) 1 x WIFI 2.4G/ AP6255 2.4G/5G dual-band + BT(optional) Supports 3G/4G(optional) |
|
I/O |
COM USB 2.0 Power button Reset LED Light DC JACK Audio |
1× RS232/485(optional) 4× USB2.0 1 × power button 1 × upgrade 1 x LED indicator 1 × DC JACK 1 × LINE-OUT |
|
Power |
Input Rated Power Consumption |
DC 12~19V 30W |
|
Physical Parameters |
Dimensions |
214mm (L) x 119mm (W)x52mm(H) |
|
Environment |
Temperature Humidity |
Operating temperature: 0°C ~50°C Storage temperature: -20~70°C 5%~90%, non-condensing |
|
Operating System |
Version |
Android 7.1/10.0/ Linux |
Ordering Information
|
AOS-SER3318B |
RK3328 1.5GHz 1G DDR3 Memory 8G EMMC |
|
AOS-SER33216B |
RK3328 1.5GHz 2G DDR3 Memory 16G EMMC |
|
AOS-SER33232B |
RK3328 1.5GHz 2G DDR3 Memory 32G EMMC |
Application Field
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government information disclosure, and other fields.
F&Q
Q1: Does this Media Player Box support 4K video output?
A: Yes. It provides one HDMI output with a maximum supported resolution of 3840 × 2160, making it suitable for 4K digital signage and commercial display applications.
Q2: Which operating systems are supported?
A: It supports Android 7.1, Android 10.0, and Linux. The system can be configured according to project and software requirements.
Q3: What connectivity and expansion options are available?
A: It supports four USB 2.0 ports, LAN, TF card expansion, optional dual-band WiFi and Bluetooth, optional 3G/4G connectivity, optional RS232/485, and optional mSATA SSD storage.
