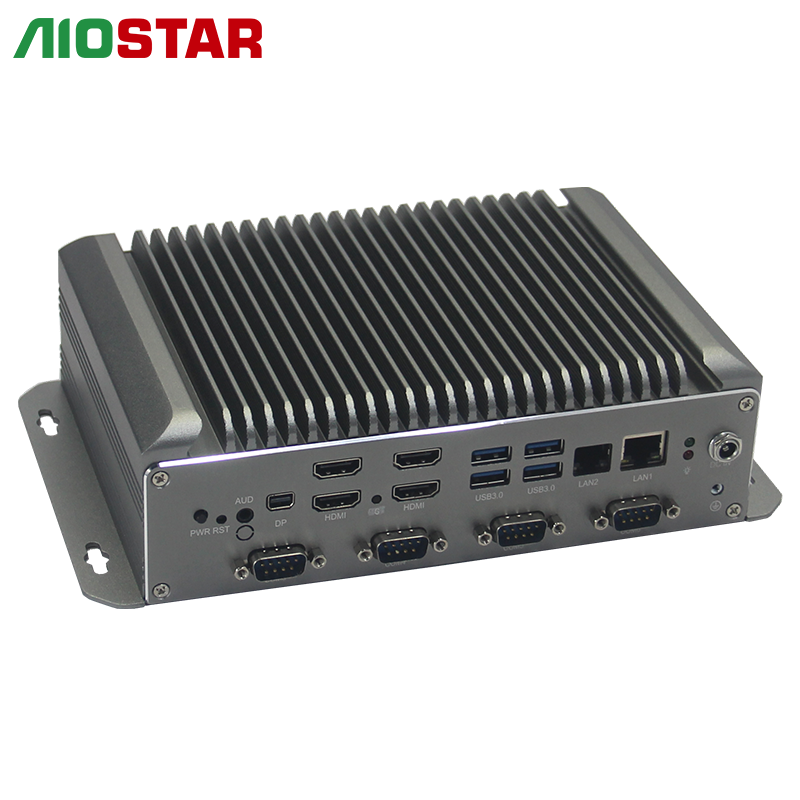

Industrial-grade fanless computer with support for up to four independent displays, dual Gigabit LAN, 8 USB ports, and 6 COM ports. Supports 4K/5K/8K resolution output, watchdog, auto power-on, and network wake-up for reliable 24/7 operation.
Specification Parameters
|
processor |
CPU |
Intel Intel Alderlake-based I5 1240P processor, 1.7 GHz, twelve cores and sixteen threads (I3 1215U:1.2 GHz, 6 cores, 8 threads; I5 1240P:12 cores, 16 threads; 1235U,12450H,13450H, I7 1260P:2.1 GHz, 12 cores, 16 threads; 1360P,13620H) The Intel Alder Lake architecture-based N100 CPU also supports optional processors including the N95, N97, N105, N200, I3, N300, and N305 (8-core).
|
|
|
chip set |
Intel® SOC |
|
|
BIOS |
AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more. |
|
internal storage |
capacity |
4GB SO-DIMM 2xDDR4 2400 MHz memory , Max.64GB |
|
memory |
SATA Interface M.2 |
2.5-inch HDD (optional) 1Xm.2 NGFF/NVME |
|
show |
Integrated Display output |
CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe 4* HDMI + DP: single display, dual display, triple display, or quadruple display (同步/asynchronous/splitted display) 1 × HDMI 2.0 (Maximum supported resolution: 4096×2304 at 60 Hz) 1X DP1.4 (Supports resolutions: 4096×2304,5120×2880,7680×4320 at 60 Hz); available in 4K,5K, and 8K formats LVDS/EDP |
|
network |
Chip WIFI |
2 × 10/100/1000 M (with optional 2 RJ45 connectors) 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
USB2.0 Mini-DP RJ45 Power button COM LED lamp Reset One-click restoration G audio frequency |
4x USB 2.0 (up to 8 groups optional) 1x Mini-DP 2 × RJ45 ports (2 × 1000 Mbps Ethernet ports + 2 × 2.5 GHz Ethernet ports) 2 × power button 6× RS232 COM 1 x Power indicator light & 1 x Hard drive indicator light 1 × Reset button 1 x One-Touch Restore 1 × G JACK 1 × LINE-OUT & MIC-IN |
|
source |
import rated dissipation |
G 12–19 V (with optional wide-voltage input range of 9–36 V) 45-90W |
|
watchdog |
output margin |
Intermittent, system restart Level 255 Fixed Time Interval |
|
Physical Parameters |
size |
240mm (L) x 141mm (W)x63.5mm(H) |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5% to 90% with no condensation |
|
operating system |
edition |
Windows 10/Windows 11 / Linux |
Order Details
|
Sales Model |
explain |
|
AOS-SEAUI41S4DL2G |
Intel I3 1215U,1.2 GHz processor, 4 GB RAM, 128 GB SSD |
|
AOS-SEAUF41S4DL2G |
Intel I5 1235U processor, 4 GB of RAM, 128 GB SSD Intel I5 1235U processor, 4 GB of RAM, 128 GB SSD Intel I5 1240P,1.7 GHz processor, 4 GB RAM, 128 GB SSD Intel I5 13450H processor, 4 GB of RAM, 128 GB SSD Intel I5 13450H processor, 4 GB of RAM, 128 GB SSD |
|
AOS-SEAUJ41S4DL2G |
Intel I7 1260P,2.1 GHz processor, 4 GB RAM, 128 GB SSD Intel I7 13620H processor, 4 GB of RAM, 128 GB SSD Intel I7 13620H processor, 4 GB of RAM, 128 GB SSD |
|
AOS-SEN1041S4DL2G |
CPU: N100; RAM: 4 GB; SSD: 128 GB |
|
AOS-SEN15041S4DL2G |
CPU: N150; 4 GB RAM; 128 GB SSD |
|
AOS-SEN9741S4DL2G |
CPU: N97; RAM: 4 GB; SSD: 128 GB |
|
AOS-SEN9541S4DL2G |
CPU: N95; RAM: 4 GB; SSD: 128 GB |
|
AOS-SEN10541S4DL2G |
CPU: N105; 4 GB RAM; 128 GB SSD |
|
AOS-SEN20041S4DL2G |
CPU: N200; RAM: 4 GB; SSD: 128 GB |
|
AOS-SEN30041S4DL2G |
CPU: N300; RAM: 4 GB; SSD: 128 GB |
|
AOS-SEN30541S4DL2G |
CPU: N305; 4 GB RAM; 128 GB SSD |
application area
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government transparency initiatives, and other fields.
FAQ
Q: How many displays can this industrial PC support?
A: It supports up to four displays simultaneously via 4× HDMI 2.0, miniDP 1.4, and LVDS, with synchronized or independent display modes.
Q: Is the Intel Core i5-1240P suitable for industrial applications?
A: Yes. The 12th Gen Intel Core i5-1240P provides strong computing performance for industrial control, AI edge applications, digital signage, and automation systems.
