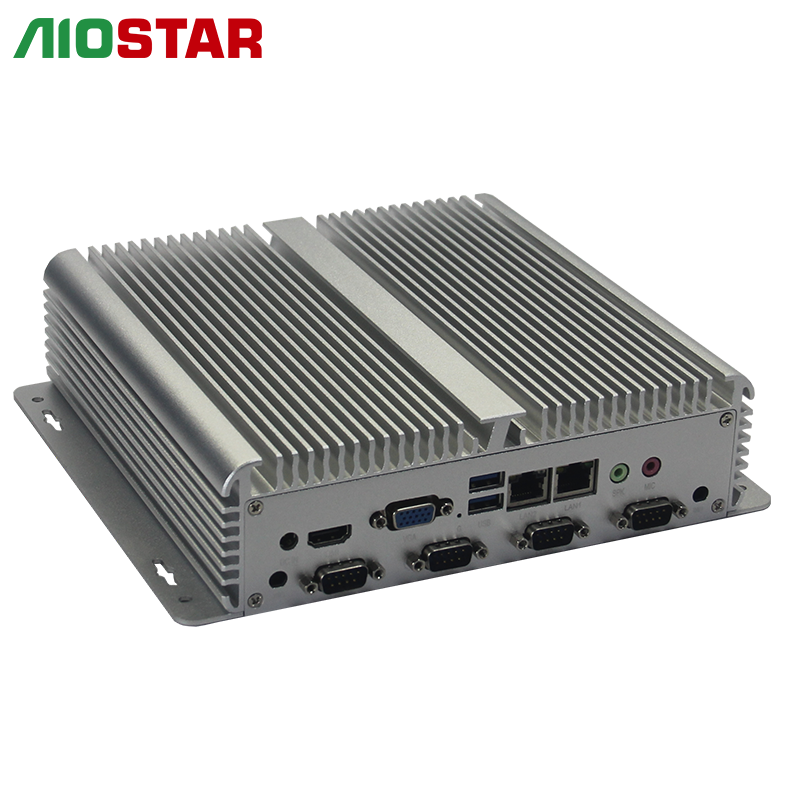

Compact embedded industrial computer featuring dual Gigabit LAN, 6 COM ports, 6 USB ports, HDMI + VGA dual-display output, and support for SSD, WiFi, and 3G modules. Designed for stable 24/7 industrial operation.
Specification Parameters
|
processor |
CPU |
ATOM series (Core U12/U13 generation), Ultra series |
|
|
chip set |
Intel® SOC |
|
|
BIOS |
AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more. |
|
internal storage |
capacity |
1× SODIMM 4G, supports DDR4 at 2400 MHz with a maximum capacity of 16 GB |
|
memory |
MSATA Interface SATA |
1×MSATA 128G SSD 1×SATA HDD |
|
show |
Integrated Display output |
CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe 1 HDMI + VGA single display; dual displays (同步/asynchronous/splitted display) 1 × HDMI 2.0 (Maximum supported resolution: 4096×2304 at 60 Hz) |
|
network |
Chip WIFI |
Two Intel i211 1000M network card chips, forming a PCI-E bus-based gigabit network interface. 1 × MINI PCI-E interface, supports Wi-Fi or 3G |
|
I/O |
USB2.0 USB3.0 RJ45 Power button COM LED lamp Reset One-click restoration audio frequency |
2X USB2.0 4X USB2.0 2×RJ45 2 × power button 6 COM RS-232 ports (with optional 2 RS485 ports) 1 x Power indicator light & 1 x Hard drive indicator light 1 × Reset button 1 x One-Touch Restore 1 × LINE-OUT & MIC-IN |
|
source |
import rated dissipation |
Dc12V Power Supply 45-90W |
|
watchdog |
output margin |
Intermittent, system restart Level 255 Fixed Time Interval |
|
Physical Parameters |
size |
235mm(L)×199mm(W)x58.5mm(H) |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -40°C to 75°C 5% to 90% with no condensation |
|
operating system |
edition |
Windows XP / Windows 7 / Windows 8 / Linux |
Order Details
|
Sales Model |
explain |
|
ATOM series |
J1800/J1900/J2900 CPU N4000/N4020/N4100/N4120/N5000 /N5030/J4025/J4125/J5005/J5040 J6413/J6412/J6426/N5095 N95/N97/N100/N105/N200/I3 N300/I3 N305 |
|
Core Union Series |
Intel Core U series of onboard CPUs: I3 3217U, I5 3317U, I7-3537U, I3-4030U, I3-5005U. I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/ I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7 I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P Ultra series: Ultra3, Intel Ultra5 135H/135U, Ultra7 155H/155U, Ultra9 185H/185U |

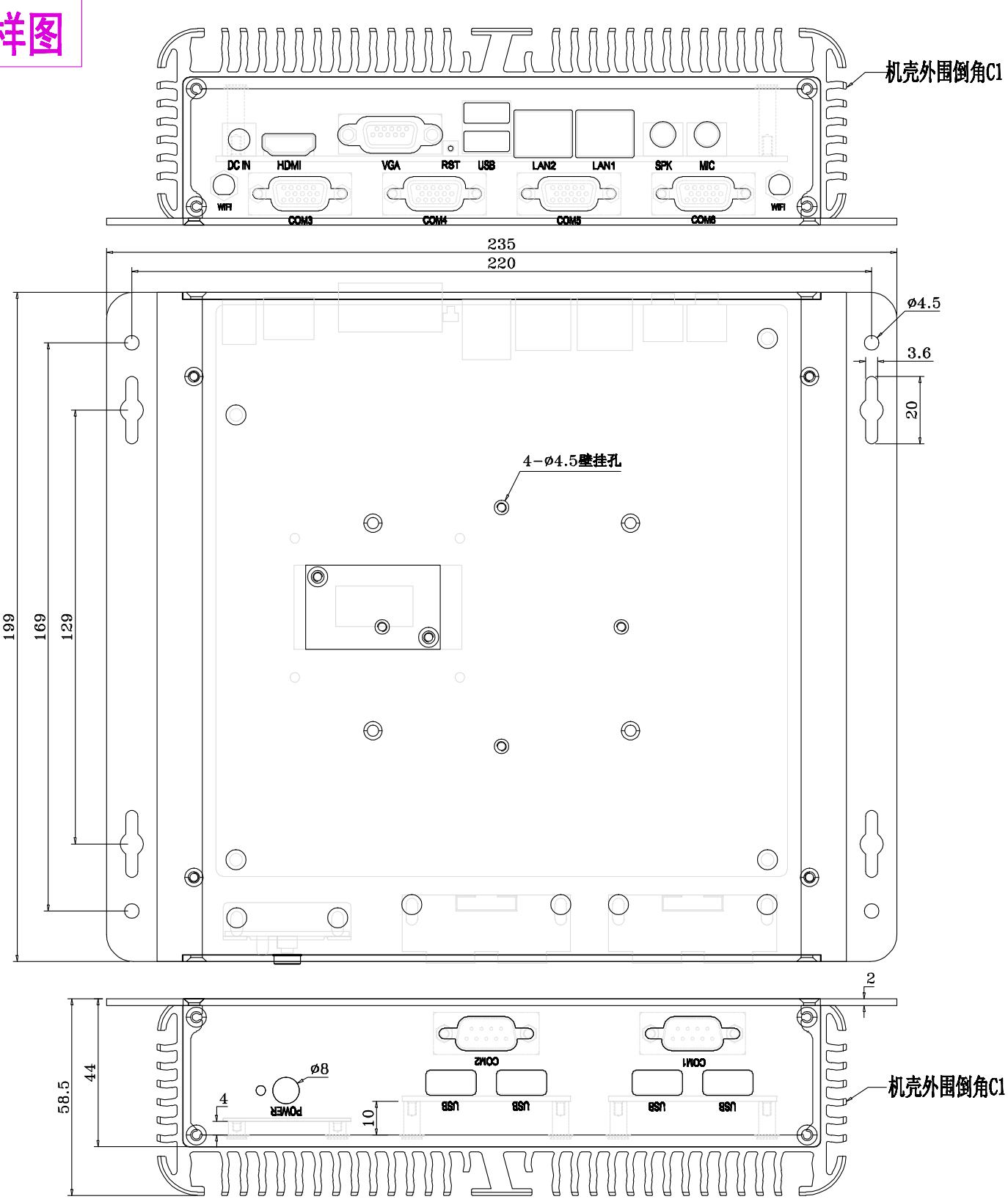

dimensional drawing
application area
Suitable for applications in visual inspection, industrial automation, self-service terminals, and industrial robotics equipment.
FAQ
Q: Which processors are supported?
A: This industrial PC supports Intel Skylake-U Core i3, Core i5, Core i7, and Atom processor options to meet different performance requirements.
Q: Does the system support dual-screen display?
A: Yes. It supports HDMI and VGA outputs with synchronous or asynchronous dual-display functionality.
