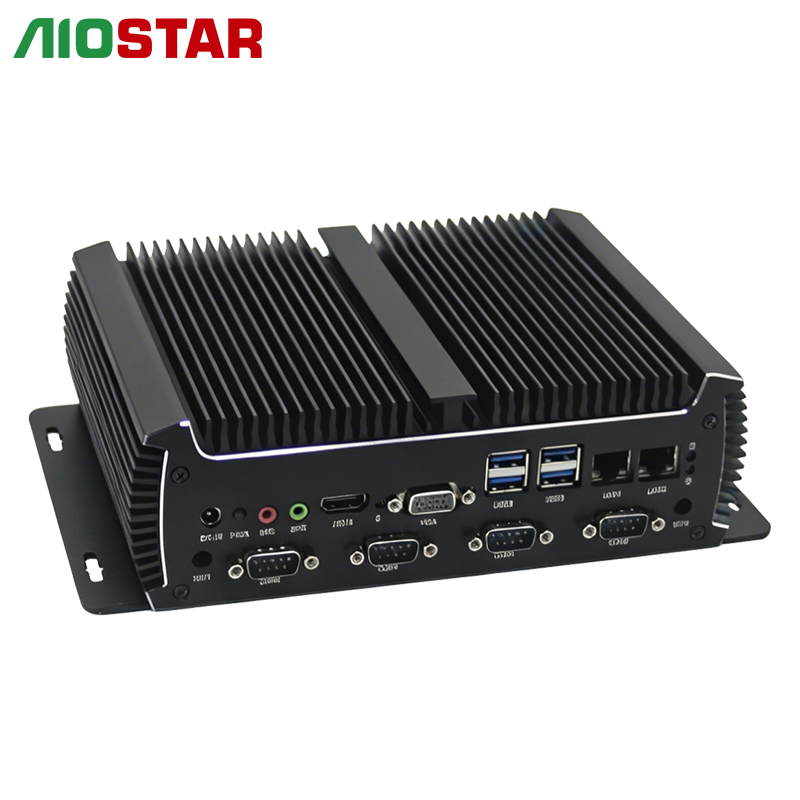

Compact embedded industrial computer featuring dual Gigabit LAN, 6 COM ports, 10 USB interfaces, and HDMI + VGA output supporting 4K 60Hz display. Designed for reliable 24/7 industrial use with watchdog, auto power-on, and network wake-up functions.
Specification Parameters
|
processor |
CPU |
Zhaoxin KX-U6580 (quad-core, quad-thread; 2.5 GHz; 4 MB L2 cache; 16 nm process technology; power consumption: 55 W) Zhaoxin KX-6780A (Eight-core, eight threads / 2.7 GHz / 8 MB L2 cache / 16 nm process technology / 70 W power consumption) |
|
|
chip set |
SOC |
|
|
BIOS |
Bai'ao supports features such as diskless startup, network wake-up, power-on startup, and watchdog. |
|
internal storage |
capacity |
4GB SO-DIMM DDR4 2400 MHz memory , Max.32GB |
|
memory |
M.2 Interface MINI PCIE |
128G SSD 1X M.2 2280 NGFF 1X Mini PCIE (WIFI/3G/4G) |
|
show |
integrated graphics output |
VGA + HDMI single display; dual displays (同步/asynchronous) 1 × VGA (Maximum supported resolution: 1920x1080) 1 × HDMI (Maximum supported resolution: 3840x2160 at 60 Hz) |
|
|
||
|
network |
Chip WIFI |
1 × RTL8111H (10/100/1000 Mbit/s; optional: 2 RJ45 LAN ports) 1 x WIFI Module support 802.11b/g/n (M.2 half card) |
|
I/O |
USB 2.0 USB 3.0 Power button COM LED lamp DC JACK audio frequency |
6x USB2.0 2× USB3.0 2 × power button 6 × COM(RS232) 1 x Power indicator light & 1 x Hard drive indicator light 1 × DC JACK 1 × LINE-OUT & MIC-IN, featuring the integrated 6-channel audio effect ALC662 sound card chip |
|
source |
import rated dissipation |
DC 12~19V 60-90W |
|
watchdog |
output margin |
Intermittent, system restart Level 255 Fixed Time Interval |
|
Physical Parameters |
size |
241mm (L) x 155mm (W) x 67mm (H) |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5% to 90% with no condensation |
|
operating system |
edition |
Windows 10/Windows 7/Ubuntu/Linux/Baidu Kirin/Zhongke Fangde/CentOS |
Order Details
|
Sales Model |
explain |
|
AOS-SEZKU6541S106CG |
KX-U6580 2.5 GHz, 4 GB RAM, 128 GB SSD |
|
AOS-SEZK67A41S106CG |
KX-6780A,2.7 GHz processor, 4 GB RAM, 128 GB SSD |
|
AOS-SEZK6A341S106CG |
KX-6640MA 2.2 GHz, 4 GB RAM, 128 GB SSD |
dimensional drawing
application area
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government transparency initiatives, and other related fields.
FAQ
Q: What CPU does this industrial PC use?
A: It supports the MStar KX-6780A/U6580 industrial processor platform, optimized for stable embedded and industrial applications.
Q: What display resolution does it support?
A: It supports ultra-high-definition 4K at 60Hz through HDMI and VGA dual display outputs.
