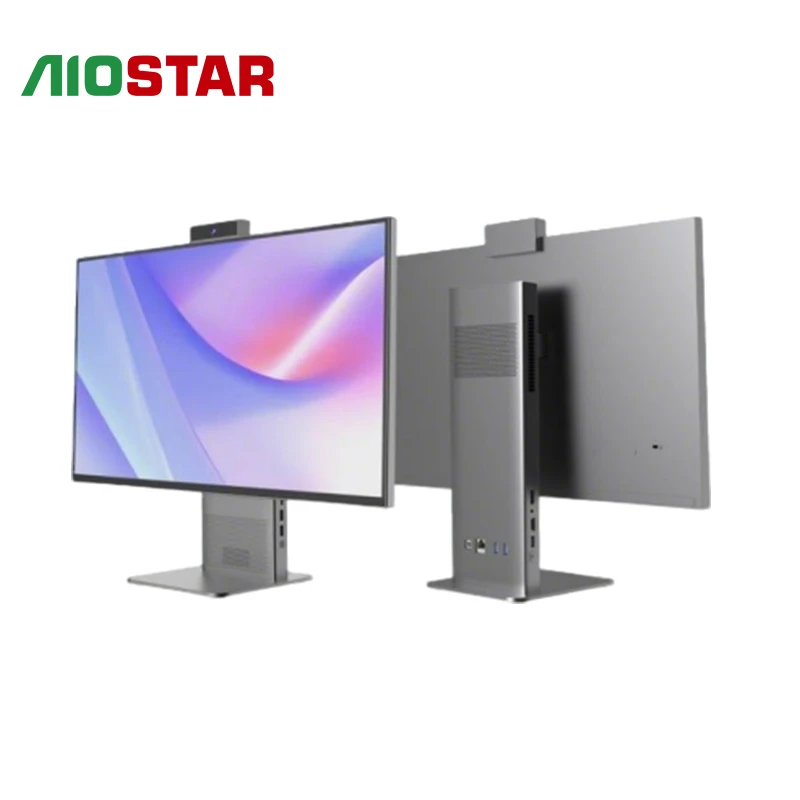

Designed for flexible business and industrial deployment, this all-in-one PC supports customized motherboards, multiple CPU platforms, dual-band WiFi, Bluetooth 5.2, fingerprint recognition, OCuLink, Type-C, DP, HDMI, USB, and Gigabit LAN. It also supports Wake-on-LAN, auto power-on, watchdog functions, and multiple operating systems for customized projects.
Specifications
|
Touch |
Size Optional Color |
23.8-inch |
|
Processor |
CPU |
Supports N100 / i3-12100 / i5-12400, etc.(optional according to requirements) |
|
|
Chipset |
Intel® SOC |
|
|
Compatible Motherboard |
Customized Motherboard |
|
Memory |
Capacity |
8GB Memory128GB |
|
Storage |
SATA Interface |
256G SSD |
|
Display |
Panel Type |
IPS |
|
Network |
Square Stand WIFI |
1 × 10/100/1000M Optional dual-band WiFi, Bluetooth 5.2 |
|
I/O |
I/O Interfaces Rear I/O |
DP, 4-channel audio, HDMI×3, USB2.0/3.0×3, mute button, Oculink, Type-C, fingerprint recognition, DC port, RJ45 LAN port, USB2.0/3.0×2, security lock slot |
|
Power |
Power Supply |
According to motherboard configuration |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Unit Dimensions |
540.0mm(L) ×170.0mm(W) ×425.8mm(H) 4.7KG |
|
Environment |
Temperature Humidity |
Operating temperature: 0°C ~ 50°C Storage temperature: -20°C ~ 70°C 5%~90%, non-condensing |
|
Operating System |
Version |
Windows 10 / Windows 11 64-bit / Linux / Kylin / UOS |
Ordering Information
|
Sales Model |
Description |
|
2385L-ATOM |
N100/N200/N305/N5105/J4125/J6412 |
|
2385L-CORE-U |
i3-1215U/i5-1235U/i7-1255U,i3-1315U/i5-1335U/i7-1355U,i5-1435U/i7-1455U |
Application Fields
Suitable for visual inspection, industrial automation, self-service terminals, industrial robots, laser cutting, CNC equipment, and other fields.
F&Q
Q1: What processor options are available for this all-in-one PC?
A: It supports multiple Intel processor platforms, including N100, N200, N305, N5105, J4125, J6412, 12th/13th/14th Gen Core U-series processors, and desktop Core i3/i5 processors. The motherboard and CPU can be selected according to project requirements.
Q2: What display and camera features does this model provide?
A: It features a 23.8-inch IPS flat display with 1920 × 1080 resolution, 60Hz–75Hz refresh rate, 250 cd/m² brightness, and 178° wide viewing angles. A detachable magnetic camera is included for convenient video conferencing, with optional 27-inch and 32-inch screen sizes.
Q3: What interfaces and customization options are supported?
A: It supports DP, three HDMI ports, USB 2.0/3.0, Type-C, OCuLink, four-channel audio, fingerprint recognition, RJ45 Gigabit LAN, security lock, and optional WiFi and Bluetooth. Motherboards, processors, memory, storage, interfaces, colors, and system configurations can be customized.
