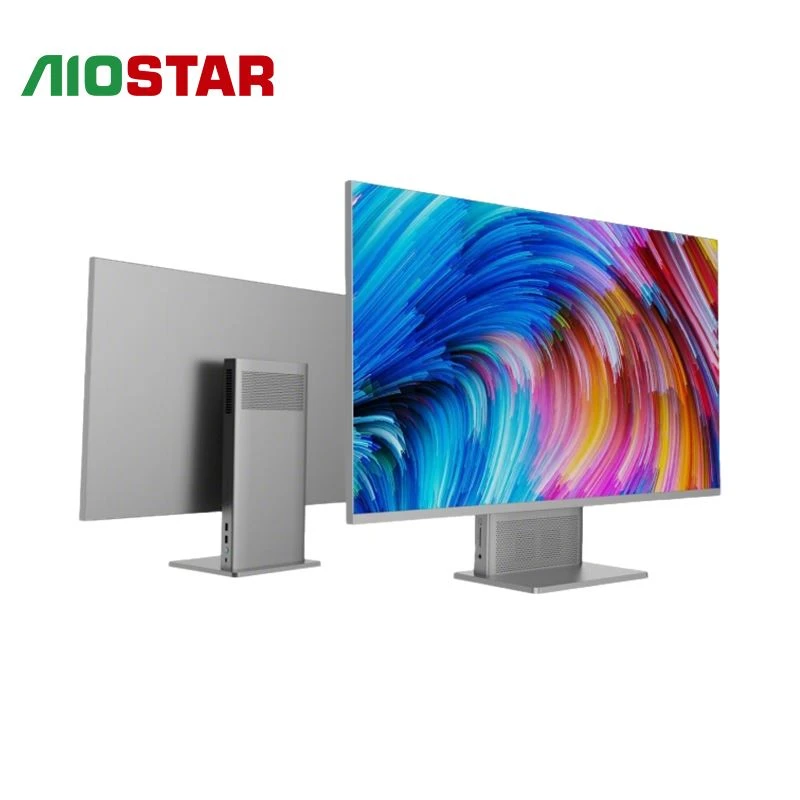

Built around a customizable Mini-ITX platform, this business all-in-one PC supports Intel Core and Celeron processors, Type-C, HDMI, VGA, COM, Gigabit LAN, multiple USB ports, and optional smart identification modules. With adjustable screen tilt, dual speakers, Wake-on-LAN, auto power-on, and multi-system compatibility, it can be tailored to a wide range of business and industrial projects.
Specifications
|
Touch Size |
Size Optional Color |
32 寸 |
|
Processor |
CPU |
Intel core 12th i3-12100,optional(i3-13100, i3-14100) |
|
|
Chipset |
Intel® SOC |
|
|
Compatible Motherboard |
Mini-ITX 170×170mm |
|
Memory |
Capacity |
8GB Memory 128GB |
|
Storage |
SATA Interface |
256G SSD |
|
Display |
Panel Type |
IPS |
|
Network |
Chipset WIFI |
1 × 10/100/1000M Optional Dual-Band WiFi, Bluetooth 5.2 |
|
I/O |
I/O Interfaces Speaker |
4-channel audio, 3-in-1 card reader, Type-C, DC, HDMI, VGA, COM, USB 2.0/3.0 ×6 |
|
Power |
Power Supply |
According to Motherboard Configuration |
|
Watchdog |
Output Interval |
Interrupt, System Restart 255-Level Timer Interval |
|
Physical Parameters |

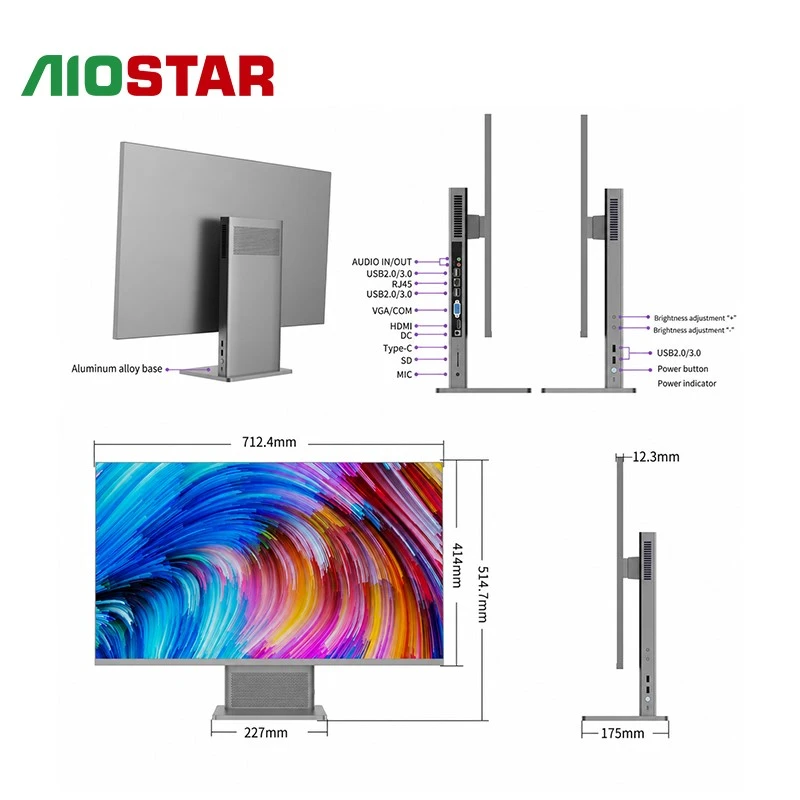

Unit Dimensions |
712.4mm (L) x 227mm (W) x514.7mm (H) 8.8(KG) |
|
Environment |
Temperature Humidity |
Operating Temperature: 0°C ~ 50°C Storage Temperature: -20°C ~ 70°C 5% ~ 90%, Non-Condensing |
|
Operating System |
Version |
Windows 10 / Windows 11 64-bit / Linux / Kylin / UOS |
Ordering Information
|
Sales Model |
Description |
|
3205L-ATOM |
J4125,J6412,N5095,N5105,N100,N200,N305 |
|
3205L-CORE-U |
i3-1215U,i5-1235U,i7-1255U,i3-1315U,i5-1335U,i7-1355U,i5-1435U,i7-1455U |
|
3205L-CORE-S |
i3-12100,i5-12400,i3-13100,i5-13400,i3-14100,i5-14400 |
Application Fields
Suitable for visual inspection, industrial automation, self-service terminals, industrialrobots, laser cutting, CNC equipment, and other fields.
F&Q
Q1: What screen sizes and resolutions are available?
A: The system is available with 23.8-inch, 27-inch, and 32-inch IPS displays. Full HD configurations are available, while selected models can support 3840 × 2160 4K resolution at 60Hz.
Q2: Which processors and motherboards does this all-in-one PC support?
A: It supports customized Mini-ITX motherboards and multiple Intel platforms, including J4125, J6412, N100, N200, N305, 12th/13th/14th Gen Core U-series processors, and desktop Core i3 or i5 processors.
Q3: What interfaces and optional functions can be customized?
A: It supports Type-C, HDMI, VGA, COM, Gigabit LAN, audio, card reader, and up to six USB ports. Optional functions include fingerprint recognition, NFC, QR code scanning, ID card reading, and high-, low-, or ultra-high-frequency identification modules.
