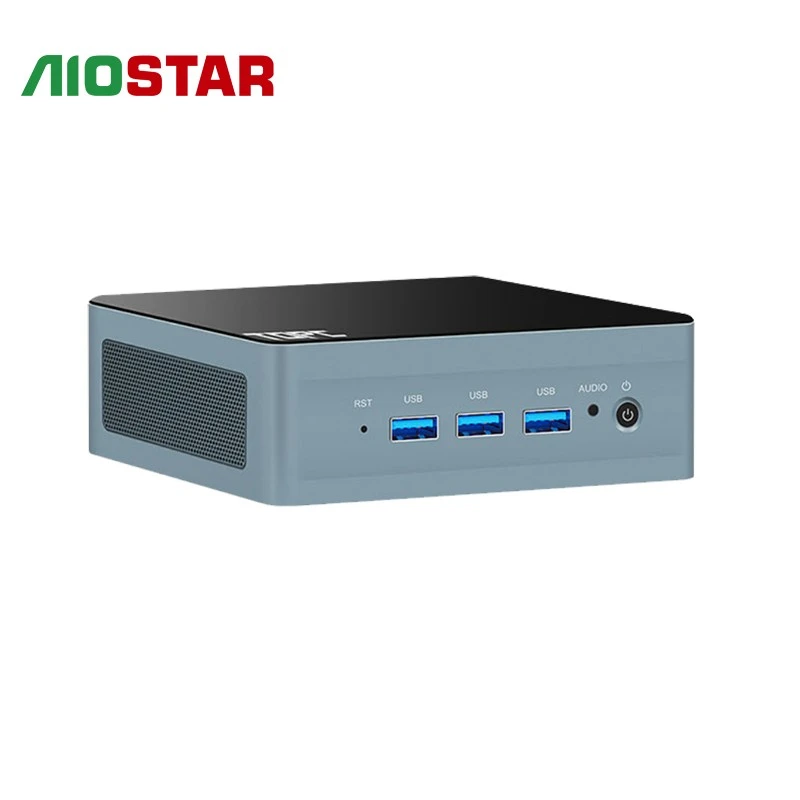

Designed for flexible deployment, this NUC Mini PC supports dual DDR5 SO-DIMM memory, M.2 NVMe storage, Thunderbolt Type-C, HDMI 2.0, DisplayPort 1.4, four USB 3.2 ports, and dual Gigabit/2.5GbE LAN. WiFi 6E, Bluetooth 5.2, Wake-on-LAN, auto power-on, and watchdog functions provide reliable connectivity and system management.
Specifications
|
Processor |
CPU |
12th/13th Gen Core U/P, i7-1365U |
|
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
2×SO-DIMM DDR5 4800/5600MHz interfaces |
|
Storage |
M.2 |
1×M.2 2280 NVMe interface |
|
Display |
Output |
1×Thunderbolt 3 Type-C + 1×HDMI 2.0 + 1×DP 1.4 |
|
Network |
Chipset |
RJ45 1.0G/2.5G dual LAN ports |
|
I/O |
External Interfaces Internal Interfaces |
4×USB 3.2 1×DC 19V power input |
|
Power |
Power Supply |
1×DC 19V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
128×128×46mm Barebone unit ≈650g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCAUP162ST |
i7-1365U/P 16G+256G SSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure, and other fields.
F&Q
Q1: Which processors does this Intel NUC Mini PC support?
A: It supports selected Intel 12th and 13th Gen Core U/P-series processors, including the Intel Core i7-1365U for high-performance business and embedded applications.
Q2: Does this NUC Mini PC support multiple displays?
A: Yes. It provides Thunderbolt Type-C, HDMI 2.0, and DisplayPort 1.4 outputs for multi-screen display configurations.
Q3: Can the memory and storage be upgraded?
A: Yes. It includes two DDR5 SO-DIMM slots supporting 4800MHz or 5600MHz memory and one M.2 2280 NVMe slot for high-speed SSD storage.
