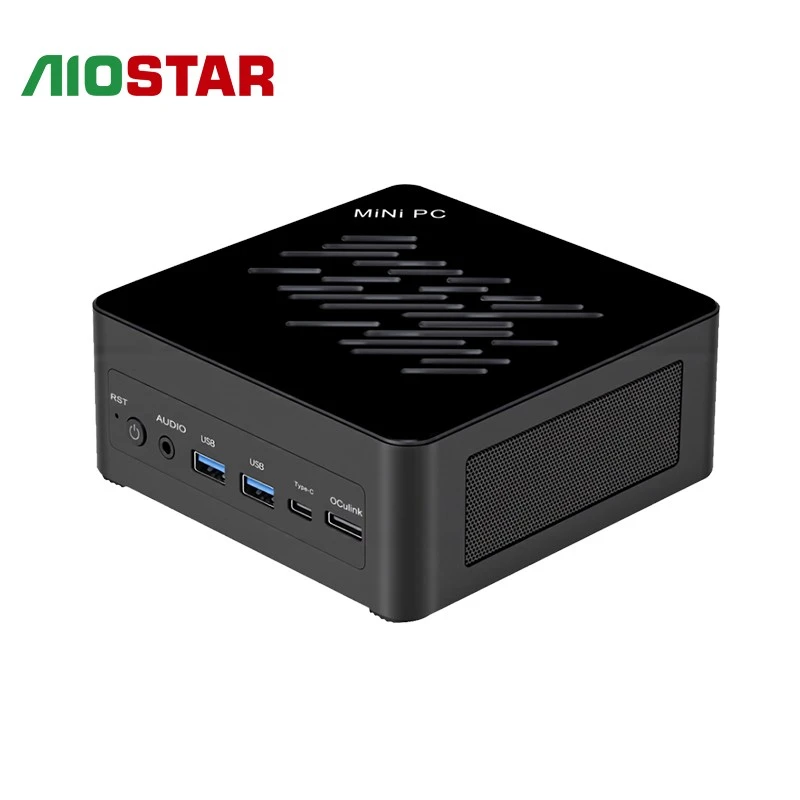

Built for performance and flexible expansion, this NUC AI PC supports dual DDR5 SO-DIMM memory, dual PCIe 4.0 NVMe SSDs, USB4 Type-C, OCuLink, HDMI 2.1, DisplayPort 2.1, dual 2.5GbE LAN, WiFi 6E, and Bluetooth 5.3. Its compact 132 × 132 × 50.5mm chassis is suitable for space-limited commercial and industrial deployments.
Specifications
|
Processor |
CPU |
Ultra5-125H/Ultra7-165H/Ultra9-185H/Ultra5-225H/Ultra7-255H/Ultra9-285H |
|
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
2×SO-DIMM DDR5 slots (up to 5600MHz) |
|
Storage |
M.2 |
2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Storage |
Output |
HDMI2.1 + DP2.1 |
|
Network |
Chipset |
2×RJ45 2.5G LAN ports (i266V) |
|
I/O |
External Interfaces Internal Interfaces |
Type-C USB4.0 + Oculink interface ×1 2×RJ45 2.5G LAN ports (i266V) |
|
Power |
Power Supply |
DC 19V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
132*132*50.5mm Barebone unit ≈605g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCMU5162STQ |
Ultra5-125H/225H 16G+256GSSD |
|
AOS-NUCMU7162STQ |
Ultra7-155H/255H 16G+256GSSD |
|
AOS-NUCMU9162STQ |
Ultra9-185H/285H 16G+256GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government information disclosure, and other fields.
F&Q
Q1: Which Intel processors are available for this NUC AI PC?
A: It supports Intel Core Ultra 5 125H/225H, Core Ultra 7 165H/255H, and Core Ultra 9 185H/285H processors. Available configurations may vary according to project requirements.
Q2: Does this NUC Mini PC support external graphics expansion?
A: Yes. It includes an OCuLink interface for compatible external graphics cards and other high-bandwidth PCIe expansion devices. USB4 Type-C is also available for high-speed displays, storage, and peripherals.
Q3: Can the memory and storage be upgraded?
A: Yes. It provides two DDR5 SO-DIMM slots supporting speeds up to 5600MHz and two M.2 2280 NVMe interfaces with PCIe 4.0 ×4 connectivity.
