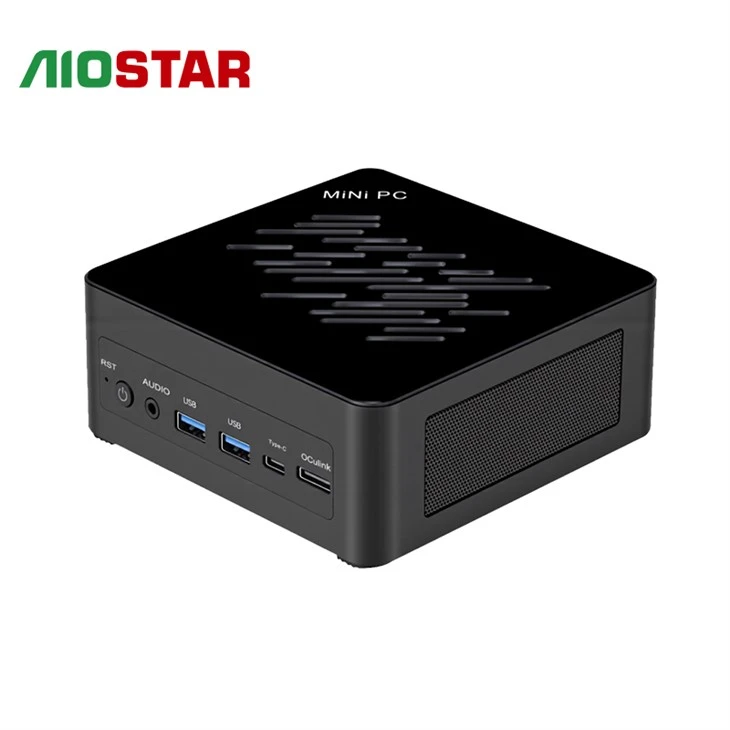

Designed for high-performance expansion, this NUC AI PC supports dual DDR5 memory slots, dual PCIe 4.0 NVMe SSDs, USB4, OCuLink, HDMI 2.1, DP 2.1, and dual 2.5GbE LAN. WiFi 6E, Bluetooth 5.3, dual-display support, and external GPU expansion provide a flexible platform for AI workloads and graphics-intensive applications.
Specifications
|
Processor |
CPU |
R7 H255 / AI5 340 / AI7 Pro 360 / AI9 365 / AI9 HX370 / AI9 HX470 |
|
Chipset |
AMD |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
|
Memory |
Capacity |
2×SO-DIMM DDR5 slots (up to 5600MHz) |
|
Storage |
M.2 |
2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Display |
Output |
HDMI2.1+DP2.1 Supports synchronous cloning / asynchronous dual-display mode |
|
Network |
Chipset |
2*2.5G(INTEL I226V) |
|
I/O |
External Interfaces Onboard Interfaces |
1×Type-C USB4.0 + OCuLink interface HDMI2.1+DP2.1 4×USB 3.0 1×Audio interface(ALC869) 2×RJ45 2.5G LAN ports(I266V) AC100–240V, DC 19V power input ×1(5.5×2.5mm) 2×M.2 2280 NVMe interfaces(PCIe 4.0×4) 2×SO-DIMM DDR5 slots(up to 5600MHz) M.2 2230 interface, WiFi 6E + Bluetooth 5.3(AX210) |
|
Power |
Power Supply |
DC 19V power input, 90–150W |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
132*132*50.5mm Barebone unit ≈605g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%～95%, non-condensing Temperature: -20°C～60°C / Humidity: 5%～95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCAI93162STQ |
R7 H255 / AI5 340 / AI7 Pro 360 / AI9 365 / AI9 HX370 / AI9 HX470 16G+256G SSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage education, restaurants, hotels, shopping malls, company meetings, government affairs displays, and other fields.
