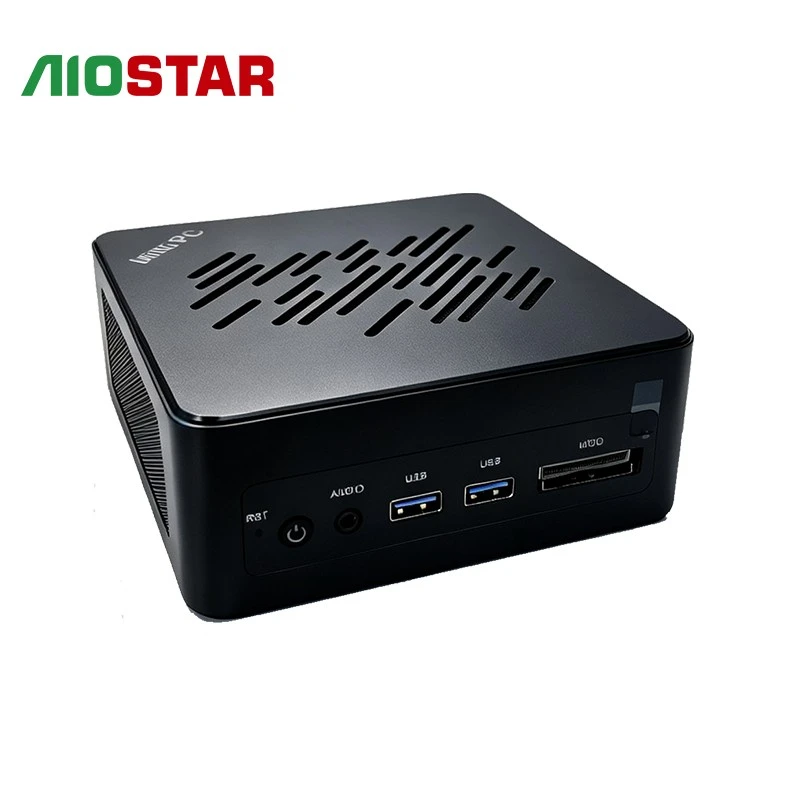

Built for AI edge computing and professional applications, this NUC AI PC features dual PCIe 4.0 NVMe storage, USB4, HDMI 2.1, DisplayPort 2.1, MCIO expansion, dual 2.5GbE LAN, WiFi 6E, and Bluetooth 5.2. It is suitable for industrial control, intelligent transportation, digital signage, education, meeting systems, and other AI-enabled projects.
Specifications
|
Processor |
CPU |
AI 9 365 onboard 24GB, AI 9 365 onboard 32GB, AI 9 HX370 onboard 32GB |
|
|
Chipset |
AMD |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
Onboard LPDDR5 memory (6400MT/s) |
|
Storage |
M.2 |
2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Display |
Output |
HDMI2.1+DP2.1 Dual independent display output |
|
Network |
Chipset |
2×2.5G (Intel I226V) |
|
I/O |
External Interfaces Internal Interfaces |
3×USB 3.0 / 1×USB 2.0 2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Power |
Power Supply |
DC 19V power input, 90–150W |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Interval Weight Accessories |
132*132*50.5mm Barebone unit ≈605g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature -20°C~60°C / Humidity 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCAI93242STM |
AI9 365 Onboard 24G 24G+256G SSD |
|
AOS-NUCAI93322STM |
AI9 365/AI9 HX370 32G+256GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure, and other fields.
F&Q
Q1: Which processors and memory configurations are available?
A: Available configurations include AMD Ryzen AI 9 365 with 24GB or 32GB onboard LPDDR5 memory and Ryzen AI 9 HX 370 with 32GB onboard LPDDR5 memory. The memory operates at up to 6400MT/s.
Q2: Can the storage of this NUC AI PC be upgraded?
A: Yes. It provides two M.2 2280 NVMe interfaces using PCIe 4.0 ×4, allowing customers to install or upgrade high-speed SSD storage according to application requirements.
Q3: What display, network, and expansion interfaces are supported?
A: It supports HDMI 2.1, DisplayPort 2.1, USB4 Type-C, dual independent displays, dual 2.5GbE LAN, WiFi 6E, Bluetooth 5.2, three USB 3.0 ports, one USB 2.0 port, and one MCIO interface with PCIe 4.0 ×4 connectivity.
