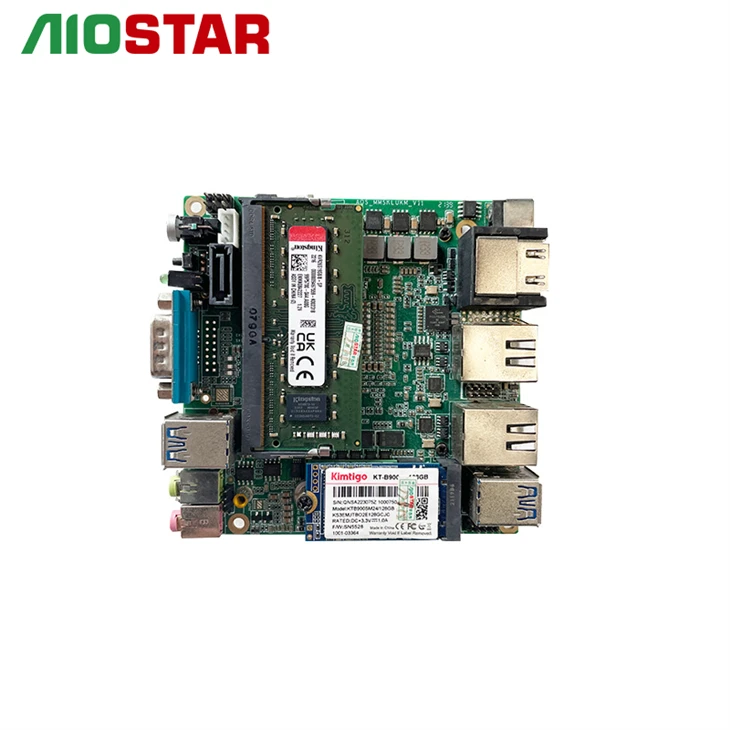

Celeron J4125CPU 10×10 industrial motherboard
It adopts Intel Celeron J4125 processor (Gemini Lake Refresh series), four core and four threads, the main frequency is 2.0GHz, and the Rui frequency can reach 2.7GHz. The process is 14nm, with low power consumption characteristics, and the TDP is only 10W. Built-in Intel UHD Graphics 600 supports basic graphics processing and multimedia decoding, including H.265 (HEVC) and VP9 hardware decoding. Provides stable memory performance and is suitable for multi-tasking in industrial scenarios.
Efficiency leap Precision and stability
Provides a variety of I/O interfaces, including multiple 4USB3.0 and one serial port (RS232/RS485), GPIO interface, SATA interface, etc., to facilitate the connection of a variety of peripherals.
Supports two Gigabit Ethernet interfaces to meet high-speed network requirements.
Optional support 2HDMI, display interface, used to connect different display devices.
The storage slot provides M.2 or Mini PCIe ports for easy expansion of Wi-Fi modules, 4G/5G communication modules, or storage devices.
Intelligent transportation system
Celeron J4125 industrial motherboard is suitable for intelligent traffic management systems, such as electronic toll collection, traffic monitoring, license plate recognition and other applications. By integrating cameras, sensors and data transmission modules, road information and traffic flow data can be processed in real time to help with traffic management and accident warning.
Detailed specifications of motherboard：
|
project |
description |
|
processor |
Integrated Intel ®Celeron J4125 2.0GHz Quad-core processor, TDP 10W is compatible with Intel ® Gemini Lake-R full CPU full range |
|
internal storage |
1 * SODIMM slot, support single channel 2400MHz DDR4 memory, up to 16GB (default) |
|
show |
Integrated Intel ®UHD Graphics 600 core graphics card |
|
1 * VGA interface or 1 * COM interface and 2 * HDMI interface |
|
|
Support for VGA, HDMI synchronization / asynchronous display |
|
|
network |
2 * Realtek RTL8111H Gigabit network card / I211 (1 network optional), support network wake-up / PXE |
|
memory |
1 * 7pin SATA3.0 hard disk interface, the transmission rate of 6 Gbps |
|
1 * M.2 slot (long card) |
|
|
audio frequency |
Oboard AL262 / ALC662 6 channel high fidelity audio controller, MIC / Line-out, power amplifier (2 O 5W dual channel, optional) |
|
Extended slot |
1 * M.2 slot, supporting the WIFI / 4G module |
|
Post I / O interface |
2 * HDMI 2.0 display interface |
|
2 * The USB 3.0 interface |
|
|
2 * RJ-45 gigabit network interface (LAN2 and double layer USB2.0 interface is the two, the default is network port) |
|
|
1 * 12 V to 19 V DC power input interface |
|
|
Front I / O interface |
2 * The USB 3.0 interface |
|
1 * Line out and MIC interfaces |
|
|
1 * VGA display interface (and COM interface, default COM interface) |
|
|
1 * Hard disk indicator light |
|
|
1 * With the light switch push button |
|
|
Built-in I / O interface |
1 * USB 2.0 interface 1 * 4 Pin (2 USB2.0 when dual network and not 4G) |
|
1 * Power amplifier interface 1 * 4pin (optional) |
|
|
2 * COM interface 2 * 5 Pin (the same signal as the front IO interface, optional) |
|
|
The 1 * 4pin ATX power supply interface |
|
|
1 * Hard disk power supply interface |
|
|
1 * EDP (Optional) |
|
|
1 * Front panel switch button and indicator light interface 2 * 5 Pin |
|
|
Fan interface |
Back stick CPU without fan heat dissipation design, reserved 1 * 4pin CPU fan interface |
|
GPIO |
Support for a 4-way input and output GPIO |
|
BIOS |
64Mb Flash ROM |
|
watchdog |
Support hardware reset (256,0 to 255 seconds) |
|
operating system |
Windows 10/Linux |
|
Power type |
Using DC 12V~19V power supply power supply |
|
working temperature |
60℃～-20℃ |
|
storage temperature |
-20℃～70℃ |
|
Working humidity |
5% -95% relative humidity, and no condensation |
|
size |
100mm x 100mm |
Ordering information
|
AOS-MMGLKM |
J4125 |
4 |
2.0G |
DDR4 |
2 |
1 |
2 |
4-6 |
/ |
/ |
1 / 1 |
12～19V |
|
AOS-MMGLKM |
J4105 |
4 |
1.5G |
DDR4 |
2 |
1 |
2 |
4-6 |
/ |
/ |
1 / 1 |
12～19V |
|
AOS-MMGLKM |
N4000 |
2 |
1.1G |
DDR4 |
2 |
1 |
2 |
4-6 |
/ |
/ |
1 / 1 |
12～19V |
|
AOS-MMGLKM |
N4100 |
4 |
1.1G |
DDR4 |
2 |
1 |
2 |
4-6 |
/ |
/ |
1 / 1 |
12～19V |
