This motherboard supports Intel® 12th-generation (Alder Lake-S) and 13th-generation (Raptor Lake-S) processors, providing advanced multi-core architecture and high performance, especially for applications that require strong computing power, such as video editing, data processing, AI reasoning, and more. The TDP supported is 65W, which ensures excellent performance while maintaining a reasonable balance in power consumption. Equipped with 2 DDR5 SO-DIMM slots, expandable up to 64GB and supporting 4800MHz memory speed. The motherboard supports a variety of operating systems, including Windows 10, Windows 11 and Linux systems, with strong compatibility, and users can choose the most suitable operating system for development and deployment according to needs.
Product specification
|
Processor System |
Intel 12th Generation Alder Lake-Series/13th Generation Raptor Lake-Series, LGA1700, TDP 65W |
|
UEFI BIOS,i3-12100/ i3-13100/ i5-12400/ i5-13400/ i7-12700/ i7-13700/ i9-12900/ i9-13900 |
|
|
Memory |
2*DDR5 SO-DIMM 4800MHz, 64GB max. |
|
Storage |
1*M.2 M-Key 2280 (NVMe PCIe3.0_x4 optional/default SATA3.0 protocol) storage interface |
|
1*SATA3.0 interface |
|
|
Display |
1*HDMI2.0 interface, support 4096x2160@60Hz |
|
1*DP1.4, support 7680x4320@60Hz |
|
|
1*DP IN |
|
|
LVDS |
|
|
Front I/O Interface |
DC JACK,1*DP_IN (optional),1*HDMI + DP,1*Type-C(RJ45 common layout optional network port),4*USB3.0,1*RJ45(1000M),1*Line out,1*MIC in,1*Power,1*OneKeyRestore |
|
Rear I/O Interface |
2*USB3.0,4*USB2.0 |
|
Expansion Interfaces/Functions |
1*PCIe_X16(PCIe5.0_16x protocol) |
|
1*M.2 E-Key(PCIe/SATA protocol), 1*WIFI(PCIE protocol) |
|
|
6*COM Pin, 2x5Pin, 2.54m spacing; JCOM2 optional RS232/485/422 |
|
|
1 set of 2 USB2.0 pins, 2.54mm pitch |
|
|
8*GPIO pins, 2x5Pin, 2mm pitch |
|
|
1*4Pin PWM CPU fan, 1*3Pin system fan |
|
|
Power supply |
DC 12-19V |
|
Operating Environment |
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90 |
|
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90 |
|
|
Operating System |
Windows10,Windows11,Linux |
|
Size |
170*193mm |

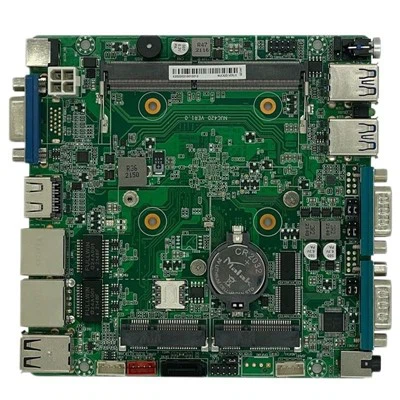

Functionality of the front of the product in kind
