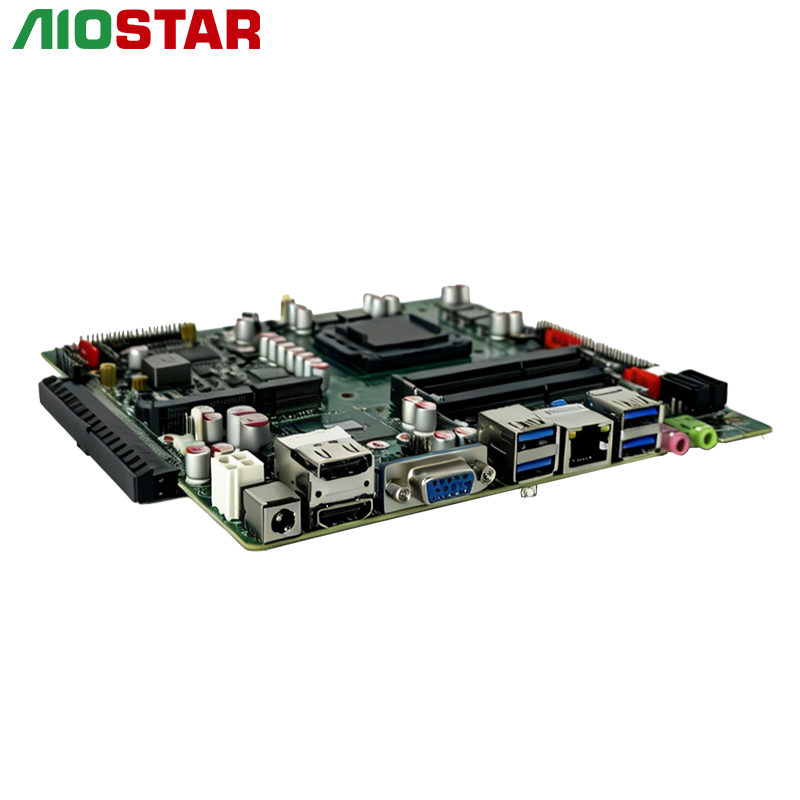

Intel Industrial Motherboard

processor

CPU

Supports Intel® Skylake LGA 1151 processors (6th–9th generations: I3, I5, I7) as well as Pentium and Celeron series processors.

chip set

Intel® H110/Q170

BIOS

AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions

internal storage

capacity

4GB 2*DDR3 1333/1600 MHz memory , Max.32GB

memory

SATA interface

M.2 Interface

1*SATA 3.0 (optional: 2*SATA 3.0)

1*M.2 2280 NGFF/NVME

show

chip set

output

VGA

CPU-integrated graphics card: HD Graphics

HDMI + VGA/2*LVDS/EDP: single display, dual displays (synchronous/asynchronous)

1 × HDMI port (maximum supported resolution: 3840×2160 at 30 Hz); 2 HDMI ports optional

1 × VGA (with optional 1×2.5G RJ45 and USB 3.0 ports)

network

Chip

WIFI/3G/4G

1 × 10/100/1000 M (RJ45 LAN) network port

1 x 3G/4G/WIFI support 802.11b/g/n (M PCIE card)

1*M.2 2230 WIFI/BT

I/O

USB 3.0

HDMI

VGA

DC JACK

Type-C

audio frequency

LED

4x USB 3.0 (4 or 6 USB ports available)

1 × HDMI 1.4 (2 HDMI ports optional)

1×VGA (COM port optional)

1 × DC JACK interface

1 × Type-C (optional)

1 × LINE-OUT & MIC-IN

1 × LED (optional)

On-board functions

COM mouth

USB2.0

LVDS/EDP

LPT

GPIO

FP

SPK

PCIEX16

1× RS232; supports up to 6× RS232/422/485

1 USB pin (قابل for expansion to 2 USB 2.0 ports), supporting up to 5 USB 2.0 groups

2*LVDS/EDP

1*LPT

1*8 input/8 output GPIO

1*FPANL

1*SPK 3W

1*Front panel

1*SATA

1X PCI X 16-side-by-side graphics card

source

import

rated dissipation

DC JACK 12V-19V

90W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

170mm (L) x 173mm (W)

environment

temperature

humidity

Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C

5%~90% no condensation

operating system

edition

Windows 10/Windows 11/ Linux

Sales Model

explain

AOS-MMHM110AGP

Single network/dual display (HDMI + VGA + LVDS) / 4 USB 3.0 ports (optional) / 1 RS232 port / TYPE-C port (optional)

AOS-MMHM110AGP2

Dual network/dual display (HDMI + VGA + LVDS) / 4 USB 3.0 ports (optional) / 1 RS232 port / TYPE-C port (optional)

AOS-MMHM110AGP3

Three networks/dual displays (HDMI + VGA + LVDS) / 4 USB 3.0 ports (optional) / 1 RS232 port / TYPE-C port (optional)
