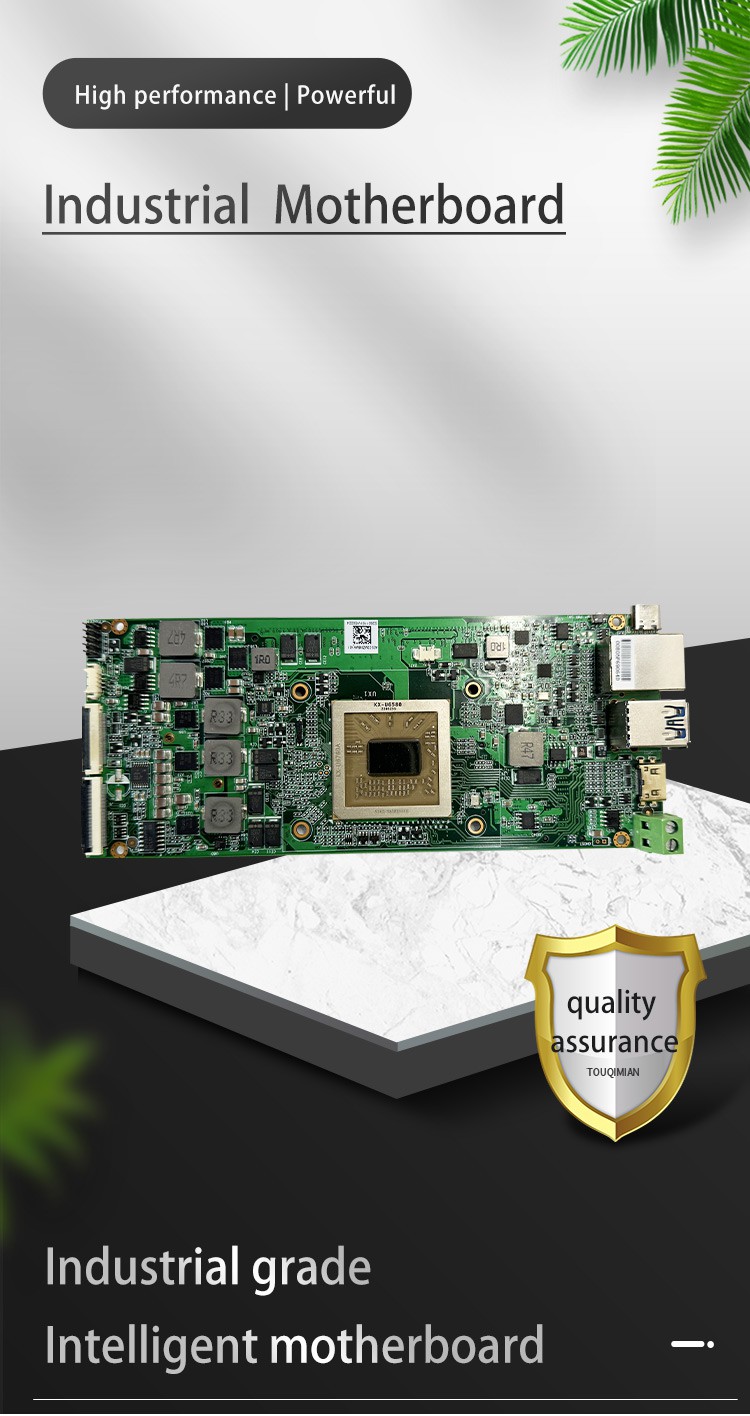

KX-U6780A Industrial Motherboard

processor

CPU

Zhaoxin KX-6640MA (quad-core, quad-thread / 2.2 GHz / 4 MB L2 cache / 16 nm process / 25 W power consumption)

Zhaoxin KX-6580 (Eight-core, eight-thread / 2.5GHz / 8MB L2 cache / 16nm process / 50W power consumption)

Zhaoxin KX-U6780A (Eight-core, eight threads / 2.7 GHz / 8 MB L2 cache / 16 nm process / 70 W power consumption)

chip set

Intel® SOC

BIOS

BaiAo supports features such as diskless startup, network wake-up, power-on startup, and watchdog.

internal storage

capacity

1* SO-DIMM DDR4 2400 MHz memory , Max.32GB

memory

M.2 Interface

1*M.2 2280(NGFF)

show

chip set

output

CPU-integrated graphics card: HD Graphics

HDMI+EDP (optional): Single display, dual displays (同步/asynchronous display)

1 × HDMI (Maximum supported resolution: 3840x2160 at 30 Hz)

network

Chip

WIFI

1 × 10/100/1000M(RJ45 LAN)

1 x M.2 WIFI 802.11b/g/n (M PCIE half card)

I/O

DC JACK

switch

HDMI

USB3.0

Type-c

RJ45

1 x 12-19V DC JACK

1 × Power

1 × HDMI 1.4; 1 × VGA/HDMI (for dedicated graphics card)

2 × USB3.0

1 × type-c(USB2.0)

1 × RJ45

On-board functions

COM mouth

USB2.0

EDP

FP

1*ttl (The FPC includes a expansion board required)

2 USB pins (the FPC includes expansion boards)

1*EDP

1*FP

source

import

rated dissipation

DC JACK 12-19V

60-90W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

170mm (L) x 70mm (W)x25mm(H)

environment

temperature

humidity

Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C

5%~90% no condensation

operating system

edition

Windows 10/Windows 11/Linux/Kirin/Tongxin UOS

Sales Model

explain

AOS-COMZXK6MA

6780A/6580/6640MA

AOS-

Different base plates are optional

AOS-

Different base plates are optional
