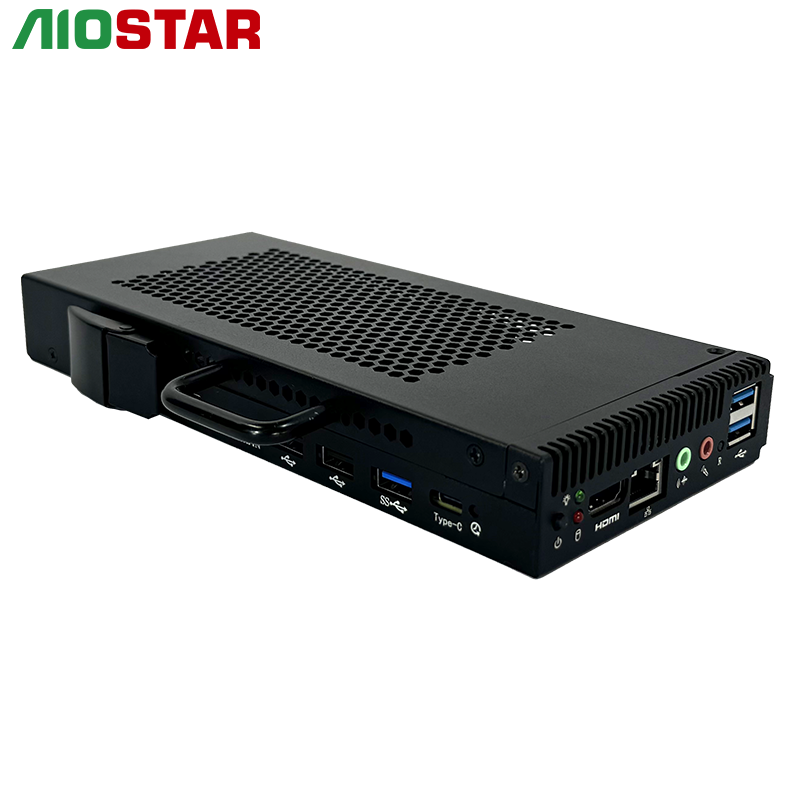

Intel I3-1215U OPS modular PC with compact design, optional Type-C and HDMI IN. Supports stable 24/7 operation, watchdog, and auto power-on for smart interactive systems.
Specification Parameters
|
processor |
CPU |
Intel Alderlake-based I5 1240P 1.7GHz twelve-core, sixteen-thread processor (I3 1215U:1.2 GHz, 6 cores, 8 threads / I5 1240P:12 cores, 16 threads / 12450H / 13450H / I7 1260P:2.1 GHz, 12 cores, 16 threads / 1360P / 13620H) |
|
|
chip set |
Intel® SOC |
|
|
BIOS |
BaiAo supports features such as diskless startup, network wake-up, power-on startup, and watchdog. |
|
internal storage |
capacity |
16GB SO-DIMM DDR4 2400 MHz memory , Max.32GB |
|
memory |
M.2 |
1Xm.2 NGFF/NVME |
|
show |
Integrated Graphics Output |
HDMI-OPS interface 1 × HDMI (Maximum supported resolution: 3840x2160 at 60 Hz) 1 × TYPE-C (Maximum supported DP resolution: 3840x2160 at 60 Hz) |
|
network |
Chip WIFI |
1 × 10/100/1000M 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
USB 3.2 USB 2.0 Type-c Power button OPS Interface COM RJ45 LED lamp One-click restoration DC JACK audio frequency |
3x USB3.2 2 xUSB 2.0 2x Type-C ports (1*TYPE-C optional with full functionality + 1*USB) 1 × power button 1 × OPS interface (80 pins) 1 × RS232 COM (optional) 1 × RJ45 1 x power indicator light & 1 x hard drive indicator light 1 x One-click restore of the hardware system 1 × DC JACK 1 × LINE-OUT & MIC-IN |
|
source |
import rated dissipation |
DC 12~19V 45-90W |
|
watchdog |
output margin |
Interrupt, system restart Level 255 Fixed Time Interval |
|
Physical Parameter |
size |
220mm (L) x 100mm (W)x30mm(H) |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5%~90% no condensation |
|
operating system |
edition |
Windows 10/Windows 7 / Ubuntu/ Linux |
Order Information
|
Sales Model |
explain |
|
AOS-SOAUI41SHH |
Intel I3 1215U,1.2 GHz, 4 GB RAM, 128 GB SSD Intel I3 1215U,1.2 GHz, 4 GB RAM, 128 GB SSD |
|
AOS-SOAUF41SHH |
Intel I5 1240P/12450H/1235U processor, 4GB RAM, 128GB SSD Intel I5 1340P/13450H/1335U processor, 4GB RAM, 128GB SSD |
|
AOS-SOAUJ41SHH |
Intel I7 1260P/12700H/1255U processor, 4GB RAM, 128GB SSD Intel I7 1360P/13620H/1355U processor, 4GB RAM, 128GB SSD |
FAQ
FAQ 1
Q: Which processor does this OPS PC use?
A: Intel Alder Lake I3-1215U processor.
FAQ 2
Q: Does it support 4K display output?
A: Yes, it supports HDMI 4K resolution (3840×2160).
FAQ 3
Q: What memory capacity is supported?
A: Up to 32GB DDR4 memory.
