Switching Board

Switching Board
Details:
AOS-OPSCL1A switching board with multiple USB interfaces (USB2.0 & USB3.0).
Supports LVDS output for large display panels and adjustable backlight (3.3V/5V/12V).
DC 12–19V input with stable performance and compact design.
Send Inquiry
Description
Send Inquiry

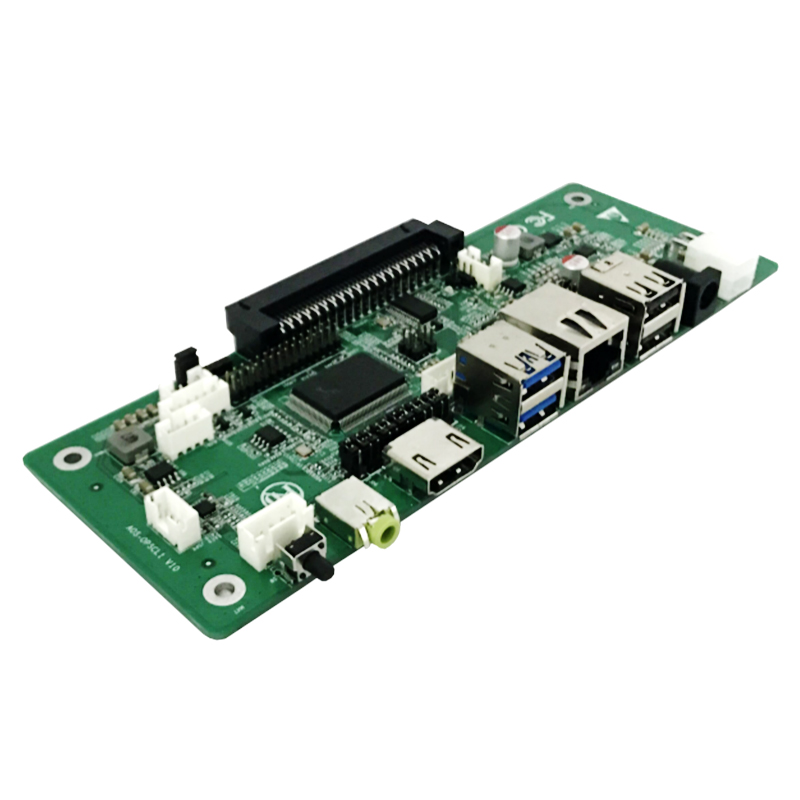

product-800-800
Reliable switching board for OPS and display integration applications. Ideal for industrial displays and embedded systems. CE, FCC, and ROHS certified.



Specification

Display

JLVDS1

JS1-6



1 ×LVDS1

1 ×HDMI(optional)

LVDS/HDMI Function Optional pins

I/O

JUSBPWR1

USB2.0

USB 3.0

Net interface
Switch

JUART1

J-SW1

J-SW2

JO5

JP9

JP10

JBKLT1

JSPK

JDET

OPS interface
Audio
JS1-JS5,JO6

1x3PIN USB live and no live optional (signal definition: 1-2 live, 2-3 no live)
4 x USB2.0,
1 xusb3. 0
1XRJ45 100 Mbit network port
1XPOWER switch
1×COM TTL (4-pin pin, 2.0 pitch, signal definition: VCC(5V) GND U-TX U-RX)
1× switch pin/reset (Signal definition: PS-ON, GND; REST,GND)
1× power-on detection pin (4pin, signal definition: PSON GND PSOK VCC3)
1XHDMI CEC pin; (NC CEC VCC)
1X3PIN 3.3V/5V power supply optional (Signal definition: 3.3V (1-2),5V(2-3))
1X2PIN 12V power supply (Signal definition: 12V(1-2)JP9 with the screen requirements to select the voltage)
1X6PIN high voltage board power supply (Signal definition: 19V 19V PWM BLK_EN GND GND)
1X4PIN 3W-4OHM power amplifier (Signal definition: SPKR-SPKR + SPKL-SPKL +)
1X2PIN (Signal definition: FAN_CTRL LED_DET)
OPS 80 pin
1 x LINE-OUT 3.5 Standard interface, supporting dual channel output
HDMI Select Pin HDMI IN(1-2), LVDS(2-3), OUT(1-3)

Power

Input

DC JACK (19V, 2.5mm inner diameter)

Integrated 4pin socket (12 ~ 19V)

Physical parameters

Dimension

Thin Mini-ITX,133x44mm

Environment

Temperature

Humidity

Working temperature:0°C ~60°C Storage temperature:-20~70°C

5%~90% No condensation

 Ordering information

Sales model

state

AOS-OPSCL1

JAE OPS 80PIN 2*USB2.0 1*USB3.0 LVDS optional display and controls

AOS-OPSCL1A

RJ45 GigE Vision 4*USB2.0 1*USB3.0 HDMI/LVDS optional display and controls 3W power amplifier

 Drawing

3
