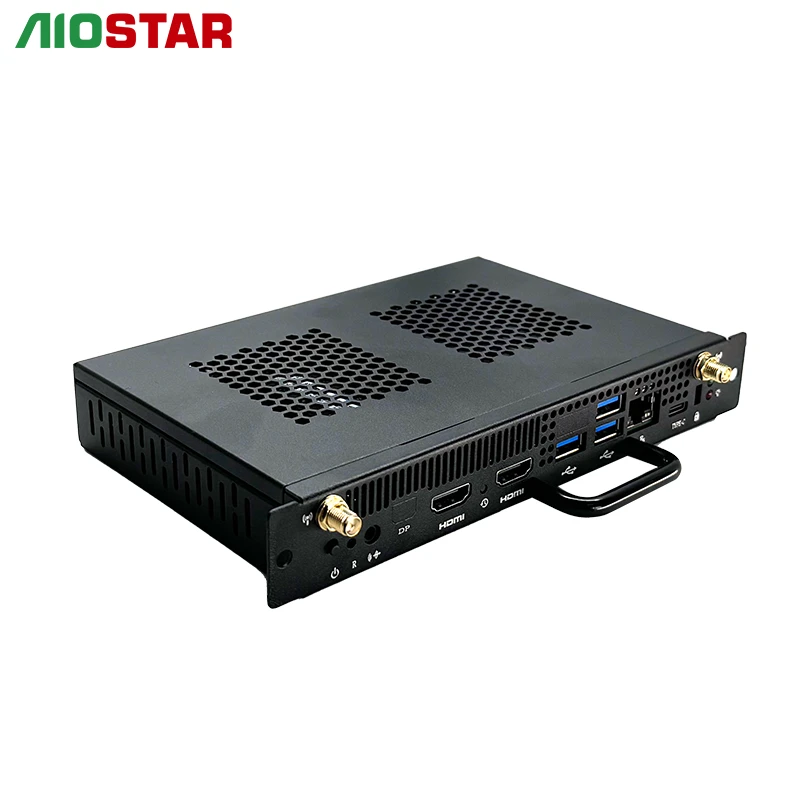

This OPS Embedded PC features a compact modular design with high-sd networking support. It supports wake-on-LAN, watchdog, and energy-saving functions, making it ideal for smart classroom, commercial display, and industrial embedded applications.peed USB3.1 ports, HDMI2.0 + DP1.4 output, and advance
Specification
|
Processor |
CPU |
Intel Alderlake-u I5 1240P 1.7GHZ Twelve cores and sixteen threads (I3 1215U 1.2G 6 core/I5 1240P 12 core/12450H/13450H/I7 1260P 2.1 12core /1360P/13620H) |
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit,support diskless boot, wake on Lan, power-on boot, watchdog, etc. |
|
|
Memory |
Capacity |
4GB SO-DIMM 1xDDR4 2400 MHz memory , Max.32GB |
|
Storage |
SATA interface M.2 |
2.5〞HDD(optional) 1X 128G SSD M.2 NGFF/NVME(optional) |
|
Display |
Jixian output |
CPU integrated graphics Graphics for 12th Gen /Iris Xe 2*HDMI+DPSingle display, double display, triple display (synchronous/asynchronous/splicing display) 2 ×HDMI2.0 (max：4096x2304 60HZ) 1X DP1.4 Optional (resolution：4096*2304,5120*2880,7680*4320 60HZ)4K/5K/8K |
|
Ethernet |
Chip WIFI |
1 × 10/100/1000M(optional 2*RJ45) 1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card) |
|
I/O |
USB 3.1 Type-c Power button OPS interface COM LED light onekey recovery DC JACK Audio |
3x USB3.1 1x type-c(optional RJ45 LAN) 1 × power button 1 ×OPS interface (80pin) 1 × RS232 COM(optional) 1 x power indicator lamp &1x hard disk indicator lamp 1 x hardware system one-click restore 1 × DC JACK 1 × LINE-OUT & MIC-IN |
|
Power |
Input Rated power |
DC 12~19V 45-90W |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timing interval |
|
Physical parameters |
Dimensions |
180mm (L) x 119mm (W)x30mm(H) |
|
Environment |
Temperature Humidity |
Working temperature: 0°C ~50°C Storage temperature:-20 ~ 70 C. 5%~90% non-condensing |
|
Operating system |
Vision |
Windows 10/Windows 11 / Linux |
dimensional drawing
Order information
|
Sales Model |
Specification |
|
|
|
|
AOS-SOAUI41SC |
Intel I3 1215U 1.2GHz 4G Memory 128G SSD |
|
AOS-SOAUF41SC |
Intel I5 1240P/12450H/1235U 4G Memory 128G SSD Intel I5 1340P/13450H/1335U 4G Memory 128G SSD |
|
AOS-SOAUJ41SC |
Intel I7 1260P/12700H/1255U 4G Memory 128G SSD Intel I7 1360P/13620H/1355U 4G Memory 128G SSD |
AFQ
Q1: What processors does this OPS Embedded PC support?
A: It supports Intel Alder Lake-U processors including I3-1215U, I5-1240P, and I7-1360P.
Q2: Does it support 4K or 8K display output?
A: Yes, it supports 4K/5K/8K ultra-high-definition display output.
Q3: What interfaces are available?
A: The device supports USB3.1, HDMI2.0, DP1.4, Type-C, and Gigabit LAN ports.
