Compact fanless industrial PC with dual USB 3.0 ports, stable 24/7 operation, watchdog, and auto power-on. Ideal for embedded and automation systems.
Specification Parameters
|
processor |
CPU |
Intel Intel Baytrail J1900 2.0GHz quad-core (J1900/J1800/N2840) |
|
|
chip set |
Intel® SOC |
|
|
BIOS |
The AMI8M BIOS supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features. |
|
internal storage |
capacity |
1*SO-DIMM DDR3L1600MHz Memory, Max.8GB |
|
memory |
SATA interface MSATA Extension Slot |
1 x 2.5-inch SATA 2.0 1*M-SATA 1*MINI-PCIE(forM-SATA/WIFI) |
|
show |
chip set output |
CPU-integrated graphics card: HD Graphics HDM+VGA single display; dual displays (synchronous/asynchronous display) 1 × HDMI (Maximum supported resolution: 920x1080) 1 × VGA (Maximum supported resolution: 1920x1080) |
|
network |
Chip |
4 × 10/100/1000 M (Supports up to 4 RJ45 LAN ports) Intel 1211-AT Gigabit network card |
|
I/O |

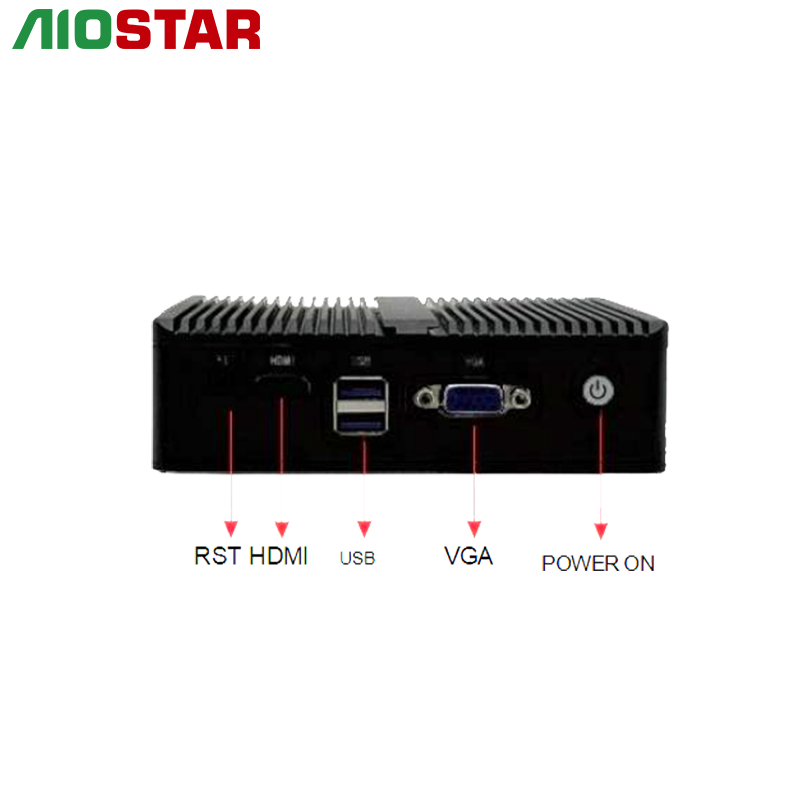

USB 3.0 Power button LED lamp DC JACK audio frequency |
2x USB3.0 1 × power button 1 x power indicator light & 1 x hard drive indicator light 1 × DC JACK 1 × LINE-OUT & MIC-IN, featuring an integrated 6-channel audio ALC662 sound card chip |
|
source |
import rated dissipation |
DC-IN 12V 5A 60W |
|
watchdog |
output margin |
Interrupt, system restart Level 255 Fixed Time Interval |
|
Physical Parameter |
size sheathing material pigment way to install |
126mm (L) x 136mm (W)x40mm(H) Aluminum profile Black, Gray Desktop placement |
|
environment |
temperature humidity |
Operating temperature: 0°C to 50°C Storage temperature: -15°C to 60°C 0%~95% No condensation |
|
operating system |
edition |
Windows 7/10/Linux |
Order Information
|
Sales Model |
explain |
|
AOS-SIJ1941SBMC4 |
Intel Pentium J1900,2.0 GHz, 4 GB RAM, 128 GB SSD |
|
AOS-SIJ1841SBMC4 |
Intel Celeron J1800,2.41 GHz, 4 GB RAM, 128 GB SSD |
|
AOS-SIN28232BMC4 |
Intel Celeron N2840,2.16 GHz, 2 GB RAM, 32 GB SSD |
FAQ
Q: Which CPUs are supported?
A: Intel Baytrail J1800, J1900, and N2840 processors.
Q: Does it support dual display?
A: Yes, it supports HDMI and VGA asynchronous dual display.
Q: What is the maximum memory capacity?
A: Up to 8GB DDR3L memory.
