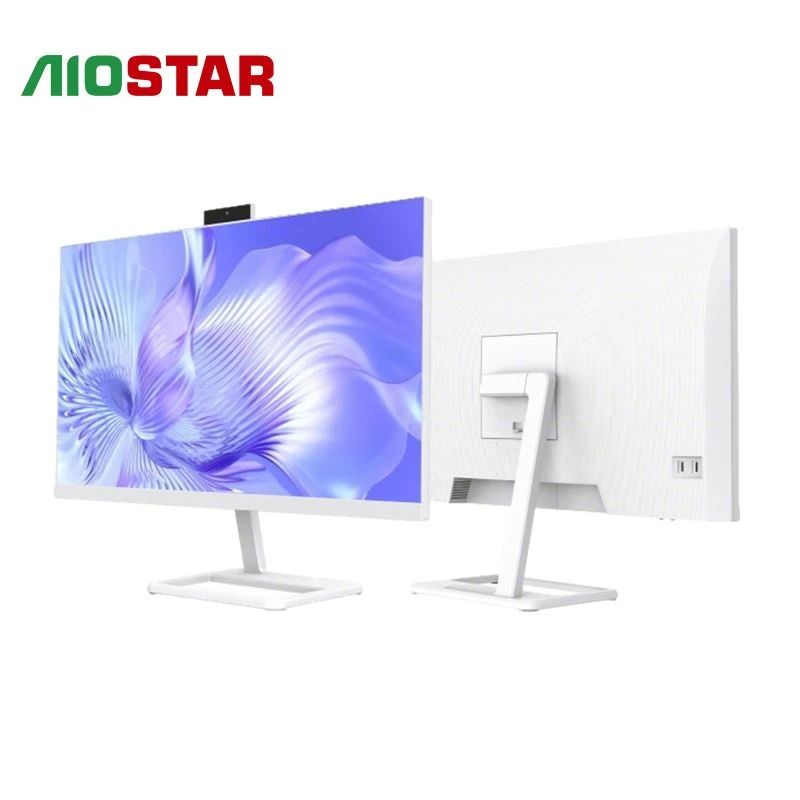

Designed for business and industrial integration, this all-in-one PC supports Mini-ITX motherboards, up to 16GB memory, SSD storage, Gigabit LAN, Type-C, DP, HDMI, VGA, COM, SD card reader, and multiple USB and audio interfaces. It also supports Wake-on-LAN, auto power-on, watchdog, and multiple operating systems for customized projects.
Specifications
|
Touch Size |
Size |
23.8-inch |
|
Processor |
CPU |
Supports i3-1215U/i5-1235U/i7-1255U,i3-1315U/etc.(optional according to requirements) |
|
Chipset |
Intel® SOC |
|
|
Compatible Motherboard |
Mini-Itx 170*170mm |
|
|
Memory |
Capacity |
8GB/16GB(optional upgrade) |
|
Storage |
SATA Interface |
256G/512G/1TB SSD(optional) |
|
Display |
Panel Type |
IPS |
|
Network |
Chipset WIFI |
1 × 10/100/1000M Square Quick-Release Stand |
|
I/O |
I/O Interfaces
|

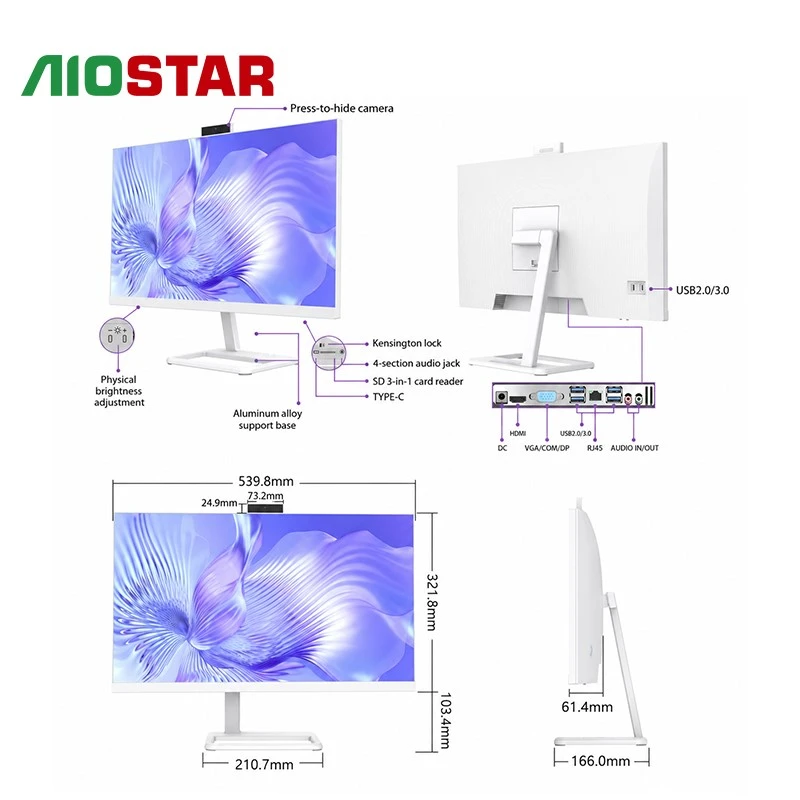

Bottom: DC, HDMI, VGA, COM, DP, USB 2.0/3.0 ×4, RJ45, audio, security lock slot, SD, Type-C, 4-channel audio port |
|
Power |
Power Supply |
Push-button hidden camera |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Unit Dimensions Screen Tilt Angle |
539.8mm(L) ×210.7mm(W) ×321.8mm(H) |
|
Environment |
Temperature Humidity |
Operating temperature: 0°C ~ 50°C Storage temperature: -20°C ~ 70°C 5%~90%, non-condensing |
|
Operating System |
Version |
Windows 10 / Windows 11 64-bit / Linux / Kylin / UOS |
Ordering Information
|
Sales Model |
Description |
|
TY238-8-ATOM |
N100/N200/N305/N5105/J4125/J6412 |
|
TY238-8-CORE-U |
i3-1215U/i5-1235U/i7-1255U,i3-1315U/i5-1335U/i7-1355U,i5-1435U/i7-1455U |
|
Y238-8-CORE-S |
i3-12100/i3-13100/i3-14100,i5-12400/i5-13400/i5-14400 |
Application Fields
Suitable for visual inspection, industrial automation, self-service terminals, industrial robots, laser cutting, CNC equipment, and other fields.
F&Q
Q1: What display performance does this all-in-one PC provide?
A: It features a 23.8-inch IPS flat display with 1920 × 1080 resolution, a 60Hz–75Hz refresh rate, 250 cd/m² brightness, a 3000:1 contrast ratio, and 178° wide viewing angles.
Q2: Which processors and hardware configurations are available?
A: It supports Intel Core i3-1215U, i5-1235U, i7-1255U, i3-1315U, and other optional processors. Memory options include 8GB or 16GB, while SSD storage is available in 256GB, 512GB, or 1TB configurations.
Q3: What interfaces and business functions are supported?
A: It supports DC input, HDMI, VGA, COM, DP, Type-C, Gigabit RJ45 LAN, SD card reader, multiple USB 2.0/3.0 ports, four-channel audio, a security lock slot, and a push-button hidden camera. Wake-on-LAN, auto power-on, and watchdog functions are also supported.
