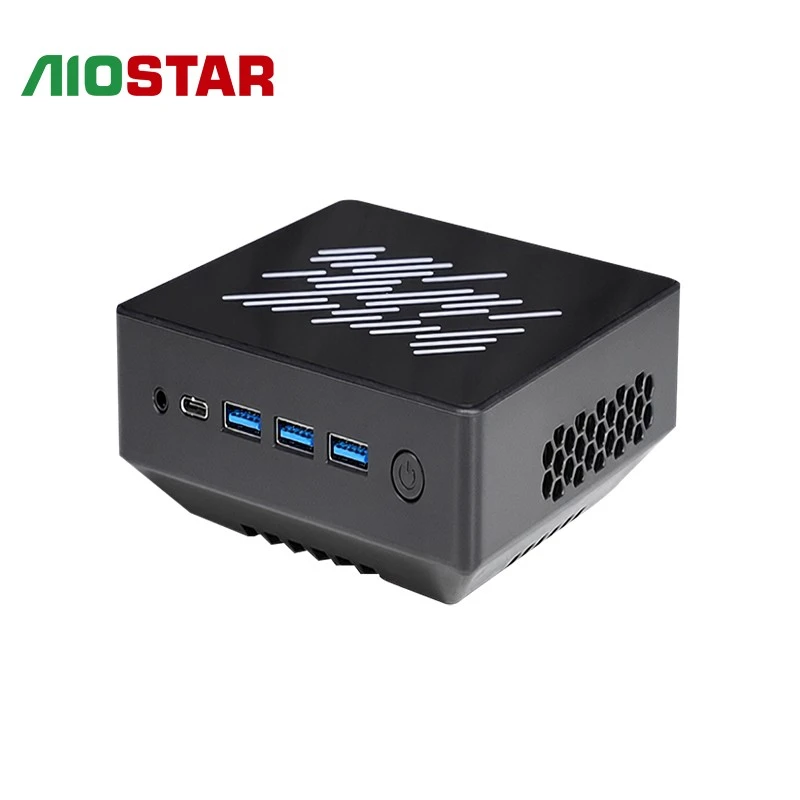

Designed for flexible deployment, this NUC Mini PC supports dual DDR4 SO-DIMM memory, PCIe 3.0 NVMe storage, full-function Type-C, five USB ports, Gigabit LAN, WiFi 6, and Bluetooth 5.2. Wake-on-LAN, auto power-on, diskless boot, and watchdog functions also make it suitable for embedded and industrial projects.
Specifications
|
Processor |
CPU |
Supports Intel Celeron N5100 |
|
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
SO-DIMM DDR4 2933MT/s ×2 |
|
Storage |
M.2 |
1×M.2 2280 NVMe interface (PCIe 3.0×4) |
|
Display |
Output |
Dual HDMI 2.0 |
|
Network |
Chipset |
RJ45 Gigabit LAN ×1 |
|
I/O |
External Interfaces Internal Interfaces |
USB ×5 (Front: USB 3.1×3, Rear: USB 2.0×2) 1×M.2 2280 NVMe interface (PCIe 3.0×4) |
|
Power |
Power Supply |
DC 12V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
123×115×47mm Barebone unit ≈340g Power adapter + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCN581ST |
Celeron N5100 8G+128GSSD |
|
AOS-NUCN582ST |
Celeron N5100 8G+256GSSD |
|
AOS-NUCN5165ST |
Celeron N5100 16G+512GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government information disclosure, and other fields.
F&Q
Q1: What processor and memory does this NUC Mini PC support?
A: It is powered by the Intel Celeron N5100 processor and provides two SO-DIMM DDR4 slots supporting memory speeds up to 2933MT/s.
Q2: Can this Intel NUC Mini PC support two 4K displays?
A: Yes. It provides two HDMI 2.0 ports supporting 4K@60Hz synchronous or asynchronous dual-display output. A full-function Type-C port is also available for compatible displays and peripherals.
Q3: What storage, network, and USB interfaces are available?
A: It supports one M.2 2280 NVMe SSD through PCIe 3.0 ×4, one Gigabit LAN port, WiFi 6, Bluetooth 5.2, three front USB 3.1 ports, and two rear USB 2.0 ports.
