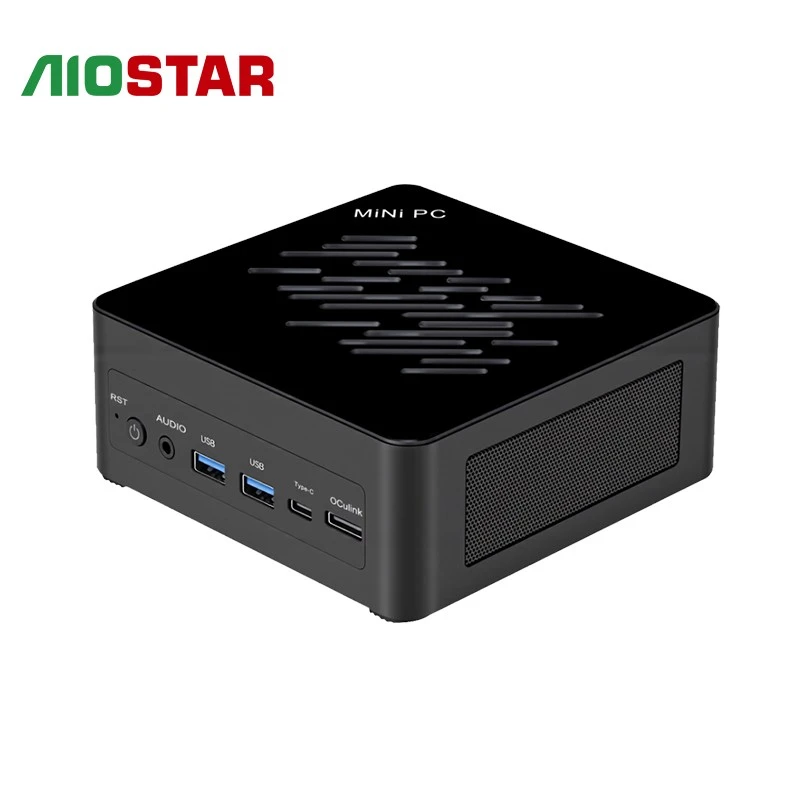

Designed for high-performance expansion, this Intel NUC AI PC supports dual DDR5 SO-DIMM memory, dual PCIe 4.0 NVMe SSDs, USB4, OCuLink, HDMI 2.1, DisplayPort 2.1, dual 2.5GbE LAN, WiFi 6E, and Bluetooth 5.3. It is suitable for industrial control, intelligent transportation, digital signage, meeting systems, education, and other AI-enabled applications.
Specifications
|
Processor |
CPU |
Ultra5-125H/Ultra7-165H/Ultra9-185H/Ultra5-225H/Ultra7-255H/Ultra9-285H |
|
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
2×SO-DIMM DDR5 slots (up to 5600MHz) |
|
Storage |
M.2 |
2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Storage |
Output |
HDMI2.1 + DP2.1 |
|
Network |
Chipset |
2×RJ45 2.5G LAN ports (i266V) |
|

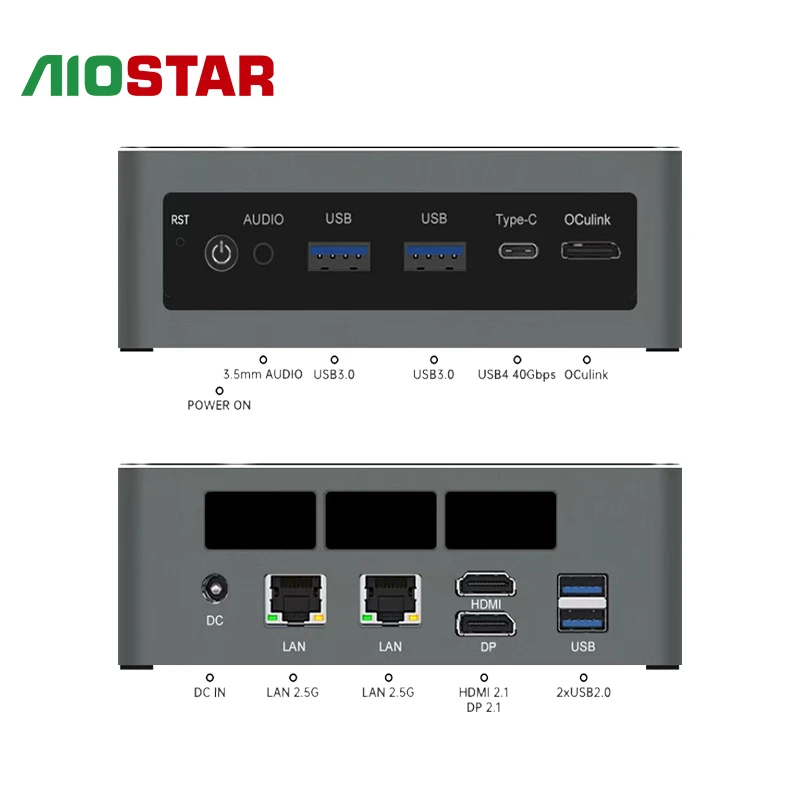

I/O |
External Interfaces Internal Interfaces |
Type-C USB4.0 + Oculink interface ×1 2×RJ45 2.5G LAN ports (i266V) |
|
Power |
Power Supply |
DC 19V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
132*132*50.5mm Barebone unit ≈605g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCMU5162STQ |
Ultra5-125H/225H 16G+256GSSD |
|
AOS-NUCMU7162STQ |
Ultra7-155H/255H 16G+256GSSD |
|
AOS-NUCMU9162STQ |
Ultra9-185H/285H 16G+256GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government information disclosure, and other fields.
F&Q
Q1: Which processors are available for this NUC AI PC?
A: It supports Intel Core Ultra processor options including Ultra 5 125H/225H, Ultra 7 165H/255H, and Ultra 9 185H/285H. Processor availability may vary according to the selected model and project requirements.
Q2: Can the memory and storage be upgraded?
A: Yes. It provides two DDR5 SO-DIMM slots supporting speeds up to 5600MHz and two M.2 2280 NVMe interfaces with PCIe 4.0 ×4 connectivity for flexible memory and SSD upgrades.
Q3: Does this Intel AI mini PC support external graphics and multiple displays?
A: Yes. It includes an OCuLink interface for high-speed external graphics expansion and a USB4 Type-C port for compatible peripherals. HDMI 2.1 and DisplayPort 2.1 support synchronous cloning or asynchronous extended-display operation.
