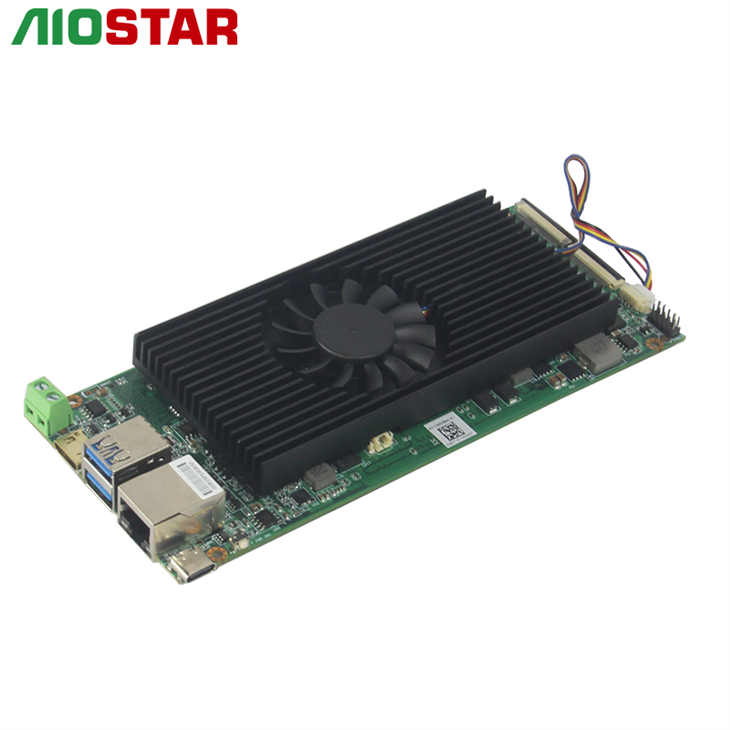

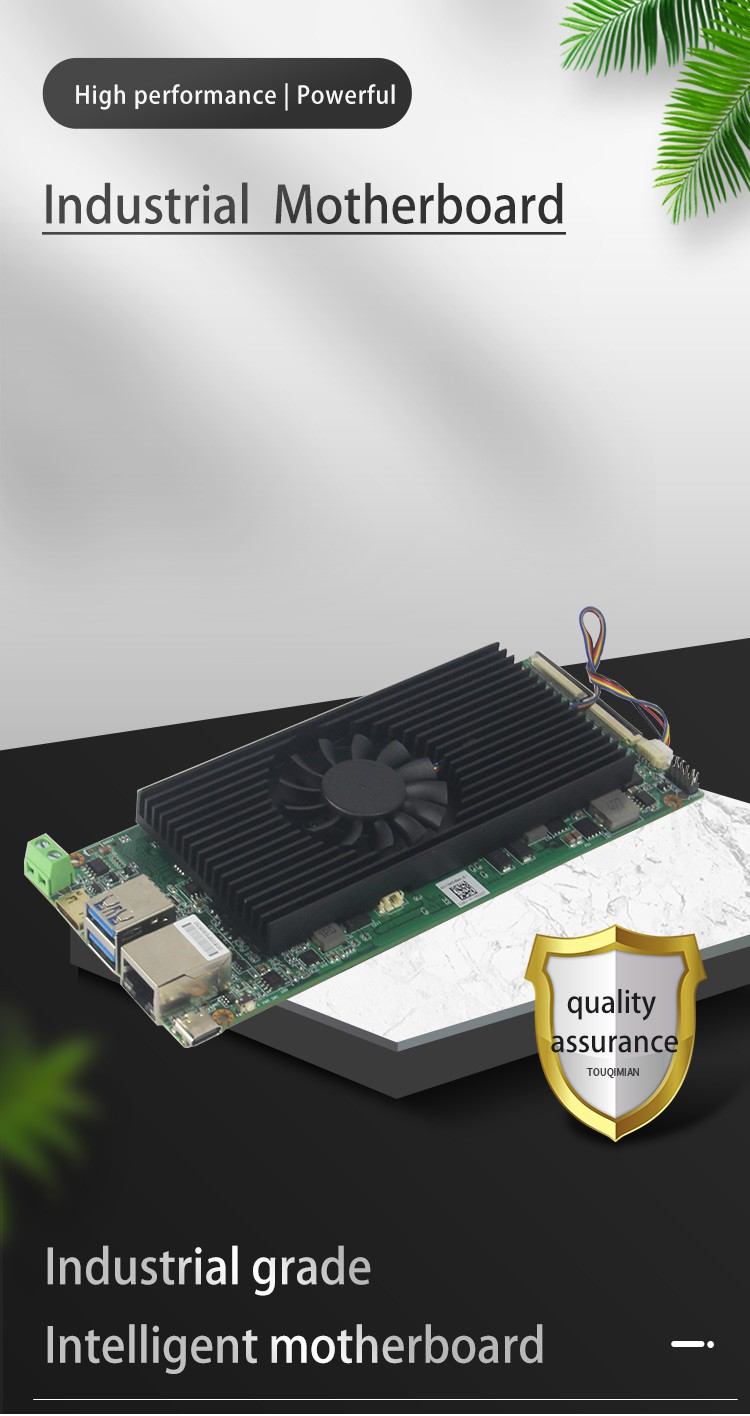

I5 1240P Industrial Motherboard

processor

CPU

Intel Intel Baytrail J1900 2.0GHz quad-core (J1900/J1800/N2840)

chip set

Intel® SOC

BIOS

The AMI8M BIOS supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features.

internal storage

capacity

1*SO-DIMM DDR3L1600MHz     Memory,  Max.8GB

memory

SATA interface

MSATA

Extension Slot

1 x 2.5-inch SATA 2.0

1*M-SATA

1*MINI-PCIE(forM-SATA/WIFI)

show

chip set

output

CPU-integrated graphics card: HD Graphics

HDM+VGA single display; dual displays (synchronous/asynchronous display)

1 × HDMI (Maximum supported resolution: 920x1080)

1 × VGA (Maximum supported resolution: 1920x1080)

network

Chip

4 × 10/100/1000 M (Supports up to 4 RJ45 LAN ports)

Intel 1211-AT Gigabit network card

I/O

USB 3.0

Power button

LED lamp

DC JACK

audio frequency

2x USB3.0

1 × power button

            1 x power indicator light & 1 x hard drive indicator light

1 × DC JACK

1 × LINE-OUT & MIC-IN, featuring an integrated 6-channel audio ALC662 sound card chip

source

import

rated dissipation

DC-IN  12V 5A

60W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

sheathing material

pigment

way to install

126mm (L) x 136mm (W)x40mm(H)

Aluminum profile

Black, Gray

Desktop placement

environment

temperature

humidity

Operating temperature: 0°C to 50°C   Storage temperature: -15°C to 60°C

0%~95% No condensation

operating system

edition

Windows 7/10/Linux
