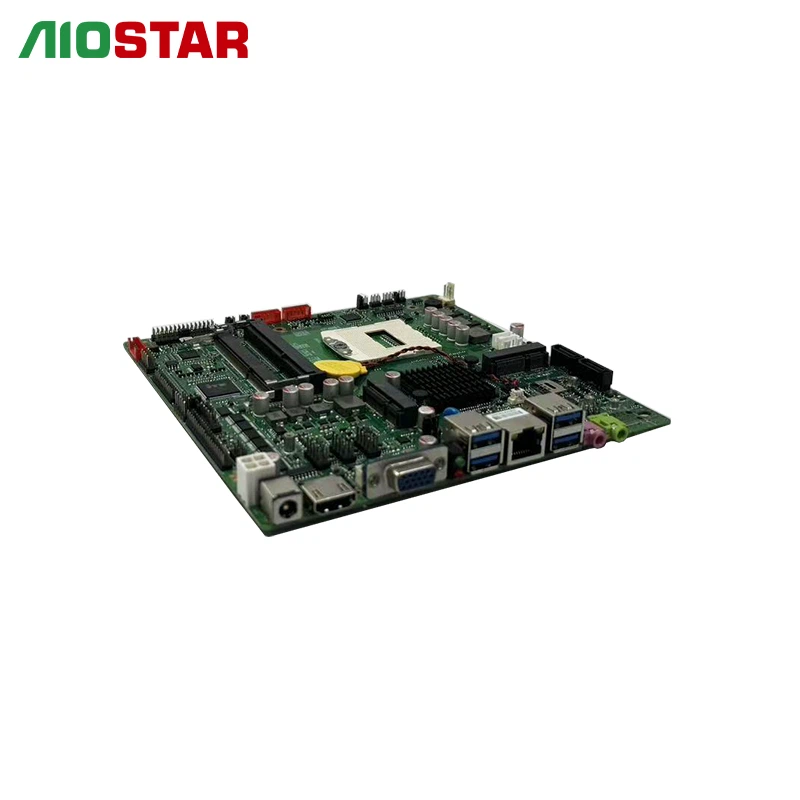

I3-4000M MINI-ITX Industrial Motherboard

processor

CPU

Compatible with Intel® Haswell-M FPGA947 processors from the 4th-generation M series (Pentium/Celeron/I3/I5/I7 models: I3 4000M, I5 4200M, I7 4600M).

chip set

Intel® SOC

BIOS

AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more.

internal storage

capacity

4GB 2*DDR3 1333/1600 MHz memory , Max.16GB

memory

SATA Interface

M.2 Interface

1* SATA 3.0 (up to 2 sets optional)

1*MSATA

show

chip set

output

CPU-integrated graphics card: HD Graphics

VGA (LVDS/EDP optional) + HDMI + LVDS/EDP (optional); single display; dual displays (同步/asynchronous).

1 × VGA/COM optional

1 × HDMI (Maximum supported resolution: 3840×2160 at 30 Hz)

network

Chip

WIFI

4G/3G

1 × 10/100/1000 Mbit/s RJ45 LAN port, with optional dual network ports

1 x WIFI Module support 802.11b/g/n (M.2 PCIE half card)

1X Mini PCIe optional

I/O

DC JACK

VGA

HDMI

USB3.0

RJ45

USB 3.0

DC JACK

audio frequency

Type-c

switch

1 x 12V DC JACK

1× VGA/COM

1 × HDMI 1.4

2 × USB3.0

1 × RJ45 (with optional POE functionality)

2 x USB 3.0 ports (RJ45 available as an option)

1 × DC JACK interface

1 × LINE-OUT & MIC-IN

1 × Type-C port (USB 3.0 available for dual-network ports) – Optional feature

1 × Power (Optional feature)

Board Functions

COM mouth

USB2.0

LVDS

FP

LED

EDP

GPIO

LPT

SPK

PCIE

1× RS232 (optional: 6COM RS232 or 2× RS485)

3 USB pins (قابل to expand to 2 USB 2.0 ports), supporting up to 6 USB 2.0 groups

1 LVDS (with optional 2 LVDS channels)

1*FP

1*SATA LED

1 EDP (up to 2 EDPs optional)

1×4 input/4 output GPIOs (optional)

1*JLPT (optional)

1*SPK 3W Amplifier

1*Front panel

1*SATA (optional 2*SATA)

1*MINI PCIE(3G/4G/WIFI)

source

import

rated dissipation

DC JACK 12V

60W

watchdog

output

margin

Intermittent, system restart

Level 255 Fixed Time Interval

Physical Parameters

size

170mm (L) x 170mm (W)

environment

temperature

humidity

Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C

5%–90% with no condensation

operating system

edition

Windows 10/Windows 11/ Linux

AOS-MMHM86A-L1

I3-4000M/I5-4200M/4300M/I7-4600M (single network, single COM port)

AOS-MMHM86A-L2

I3-4000M/I5-4200M/4300M/I7-4600M (2 COM ports per network)

AOS-MMHM86A-L3

I3-4000M/I5-4200M/4300M/I7-4600M (dual-network configuration with 6 COM ports)
