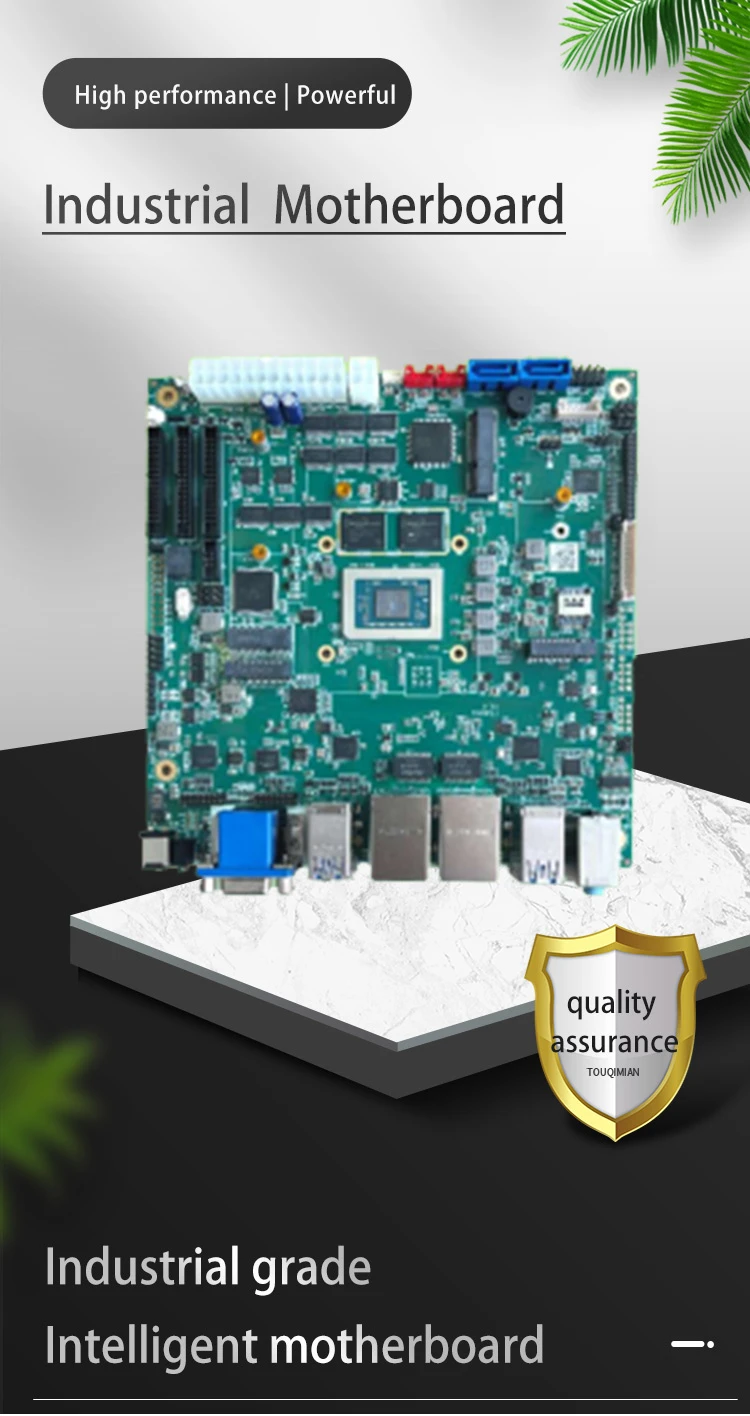

Industrial Mini Motherboard

processor

CPU

The domestic Feiteng series D3000M features a 2x2.9GHz processor and a 6x1.9GHz processor, with a 4MB L2 cache.

chip set

Domestic chip

BIOS

Supports features such as diskless boot, network wake-up, power-on startup, and watchdog.

internal storage

capacity

On-board LPDDR5/5X (available in 8GB, 16GB, or 32GB options)

memory

SATA

MSATA

M.2

2x SATA 3.0/6.0Gb/s interfaces

1xmSATA,

1x M.2-KeyM/2280 (PCIe x4), with optional onboard eMMC

show

output

HDMI0 (HDMI0 pin), VGA1 (HDMI1 pin), and eDP/LVDS/VGA2 pins

network

Gigabit network port

2x10/100/1000M Adaptive

I/O

HDMI

VGA

VGA

LVDS

EDP

1×HDMI

1×VGA1

1×VGA2

1×LVDS

1×EDP

On-board functions

network

Audio

USB

Serial Port

GP IO

CAN

TCM

debugging interface

expansion slot

2x10/100/1000M Adaptive

1x Line In, 1x Line Out, 1x MIC In (built-in amplifier: 4/8Ω,2x 5W)

12xUSB3.0(TypeA),5xUSB2.0(2x5PIN2.0)

14x RS232 (2x15-pin, 2.0 pitch), with 2 optional 485 pins

8x GPIO (4I4O or SPI+I2C)

2xCAN

1xTCM (Optional)

DEBUG(3.3V-TTL)+JTAG

1x M.2-KeyB3050 (1x SIM card slot), 4G/5G; 1x M.2-KeyE2230, WIFI/BT and StarFlash

source

import

DC12V input (DCJACK 5.5/2.5 mm or 4-pin interface)

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

170mm (L) x 170mm (W)

environment

work

memory

Working temperature: 0–50°C (wide temperature range available) Working humidity: Non-condensing, 0–95% RH

-40~85°C

operating system

edition

Domestic operating system/compatible with PhyFusion, runs Windows, and compatible with the X86 software ecosystem

Sales Model

explain

AOS-MMFTD3M2LY

Feiting D3000M:2 x 2.9 GHz + 6 x 1.9 GHz processors, with 4 MB L2 cache
