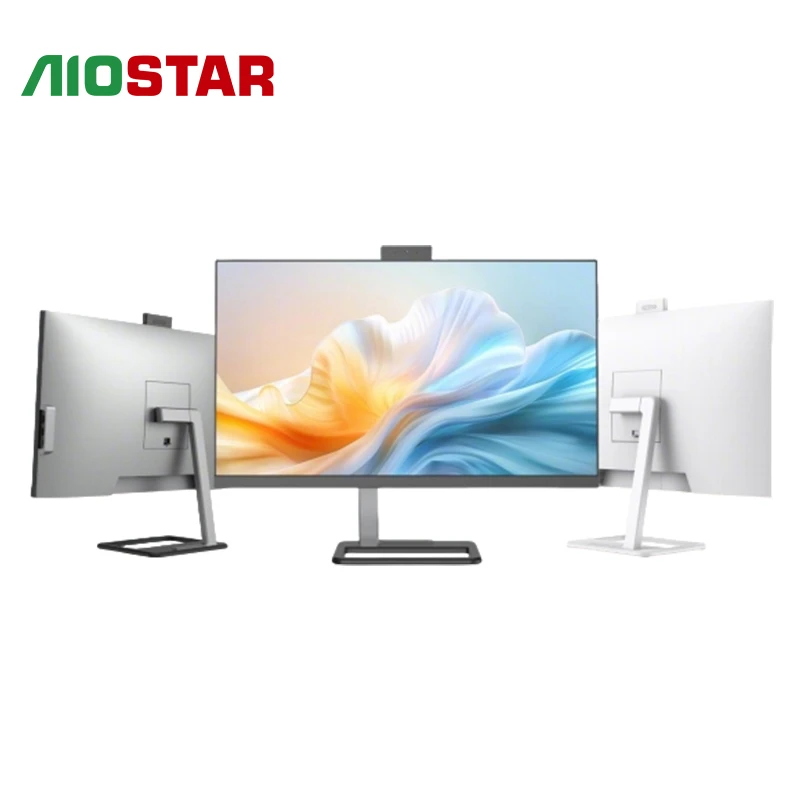

Designed for customized business and industrial projects, this all-in-one PC supports Mini-ITX motherboards, expandable memory and SSD storage, a push-button hidden camera, dual-band WiFi, Bluetooth 5.2, Gigabit LAN, Type-C, DP, HDMI, VGA, COM, SD card reader, and multiple USB ports. It also supports Wake-on-LAN, auto power-on, and watchdog functions.
Specifications
|
Touch Size |
Size Optional Color |
23.8-inch |
|
Processor |
CPU |
Supports J4125 / J6412 / N5095 / N5105 / N100, etc.(optional according to requirements) |
|
Chipset |
Intel® SOC |
|
|
Compatible Motherboard |
Mini-Itx 170*170mm |
|
|
Memory |
Capacity |
8GB/16GB(optional upgrade) |
|
Storage |
SATA Interface |
256G/512G/1TB SSD(optional) |
|
Display |
Panel Type |
IPS |
|
Network |
Chipset WIFI |
1 × 10/100/1000M Optional dual-band WiFi, Bluetooth 5.2 |
|
I/O |
I/O Interfaces
|

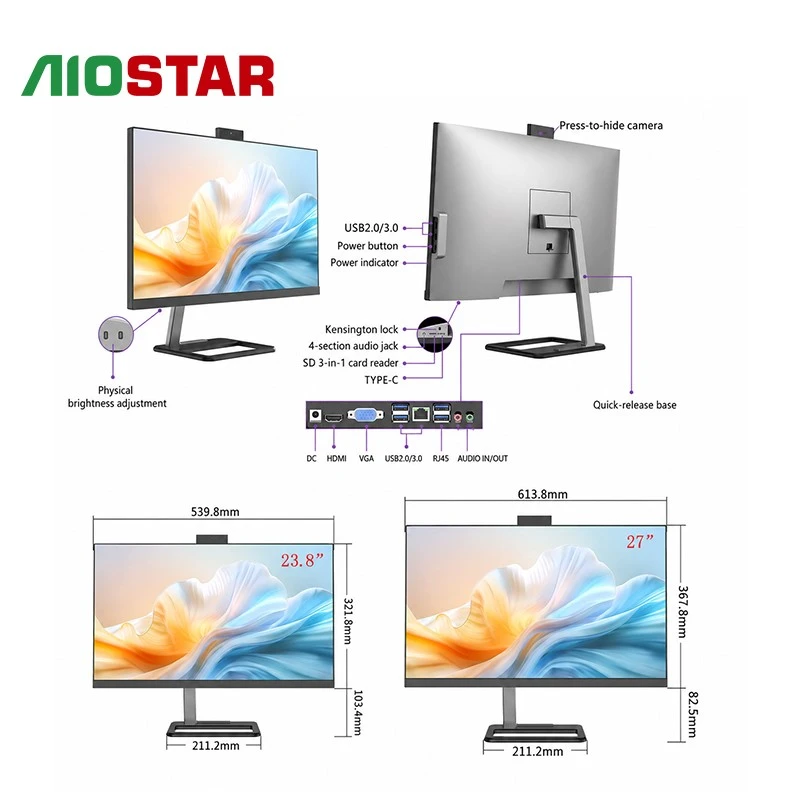

Bottom: DC, HDMI, VGA, COM, DP, USB 2.0/3.0 ×4, RJ45, audio, security lock slot, SD, Type-C, 4-channel audio port |
|
Power |
Power Supply |
According to motherboard configuration |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Unit Dimensions Screen Tilt Angle |
23.8-inch539.8mm(L) × 211.2mm(W) × 321.8mm(H) |
|
Environment |
Temperature Humidity |
Operating temperature: 0°C ~ 50°C Storage temperature: -20°C ~ 70°C 5%~90%, non-condensing |
|
Operating System |
Version |
Windows 10 / Windows 11 64-bit / Linux / Kylin / UOS |
Ordering Information
|
Sales Model |
Description |
|
TY238/TY270-3-ATOM |
N100/N200/N305/N5105/J4125/J6412 |
|
TY238/TY270-3-CORE-U |
i3-1215U/i5-1235U/i7-1255U,i3-1315U/i5-1335U/i7-1355U,i5-1435U/i7-1455U |
Application Fields
Suitable for visual inspection, industrial automation, self-service terminals, industrial robots, laser cutting, CNC equipment, and other fields.
F&Q
Q1: What screen sizes and display options are available?
A: This all-in-one PC is available with a 23.8-inch Full HD display at 1920 × 1080 or a 27-inch 2K display at 2560 × 1440. Standard refresh rates range from 60Hz to 75Hz, while the 27-inch version can optionally support up to 144Hz.
Q2: Which processors and hardware configurations are supported?
A: It supports Intel N-series, Celeron, 12th/13th/14th Gen Core U-series, and desktop Core i3/i5 processor platforms. Memory options include 8GB or 16GB, with 256GB, 512GB, or 1TB SSD configurations available.
Q3: What interfaces and customization options does it provide?
A: It supports DC input, HDMI, VGA, COM, DP, Type-C, Gigabit RJ45 LAN, SD card reader, multiple USB 2.0/3.0 ports, four-channel audio, and a security lock slot. Colors, processors, motherboards, memory, storage, wireless modules, and operating systems can be customized.
