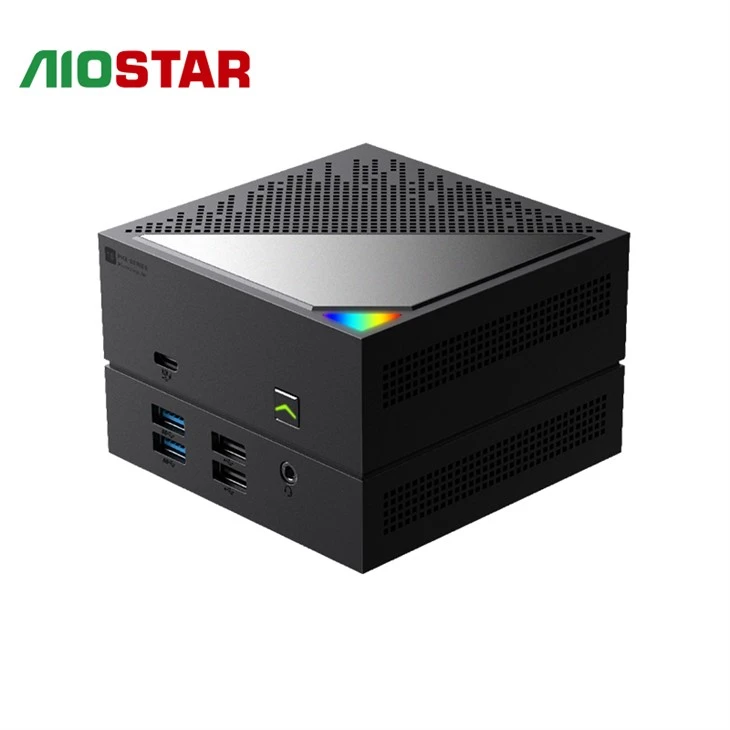

This AMD NUC supports triple-display output through full-function Type-C, HDMI 2.0, and DisplayPort 1.2. Dual NVMe storage, dual Gigabit/2.5GbE LAN, WiFi 6E, Bluetooth 5.2, USB connectivity, and Type-C PD power input provide flexible expansion for commercial and industrial projects.
Specifications
|
Processor |
CPU |
Supports AMD Ryzen 6000/7000/8000 Series / R7 6600U |
|
|
Chipset |
AMD |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
Dual-channel LPDDR5 315B (6400MHz) |
|
Storage |
M.2 |
1×M.2 2242 NVMe interface (PCIe 4.0×4) |
|
Display |
Output |
1×Full-function Type-C / 1×HDMI 2.0 / 1×DP 1.2 |
|
Network |
Chipset |
RJ45 1.0G/2.5G dual LAN ports |
|
I/O |
External Interfaces Internal Interfaces |
2×USB 3.2 / 2×USB 2.0 AC100–240V, Type-C 19V×1 (supports PD USB 2.0) WiFi 6E / Bluetooth 5.2 (AX210) |
|
Power |
Power Supply |
Type-C PD 19V power supply, AC100–240V wide-range adapter |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
99×99×67mm Barebone unit ≈485g Power adapter + individual packaging and user manual |
|
Physical Parameters |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCARU162ST |
Ryzen R7 6600U 16G+256G SSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government information disclosure, and other fields.
F&Q
Q1: Which processors does this AMD NUC Mini PC support?
A: It supports selected AMD Ryzen 6000, 7000, and 8000 Series processors. The listed standard configuration uses an AMD Ryzen 7 6600U processor with 16GB memory and a 256GB SSD.
Q2: Can this NUC Mini PC connect to three displays?
A: Yes. It supports triple-display output through one full-function Type-C port, one HDMI 2.0 port, and one DisplayPort 1.2 interface.
Q3: What storage and network expansion options are available?
A: It provides one M.2 2242 NVMe slot with PCIe 4.0 ×4, one M.2 2280 NVMe slot with PCIe 3.0 ×4, dual 1GbE/2.5GbE LAN ports, WiFi 6E, and Bluetooth 5.2.
