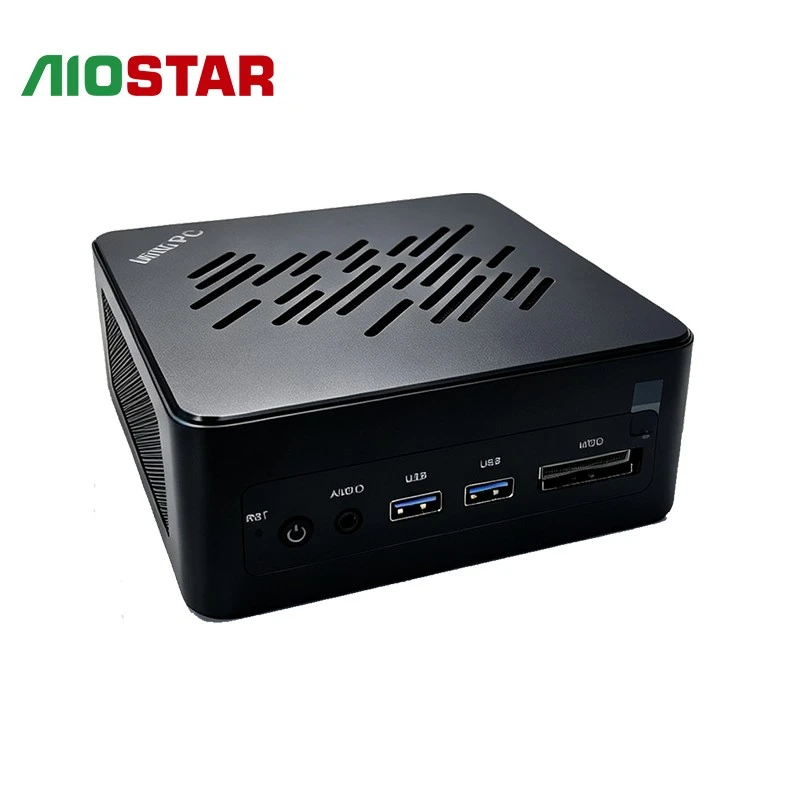

Designed for high-speed connectivity and flexible storage expansion, this NUC Mini PC features dual PCIe 4.0 NVMe slots, USB4 Type-C, HDMI 2.1, DisplayPort 2.1, MCIO, dual 2.5GbE LAN, WiFi 6E, and Bluetooth 5.2. It also supports dual independent displays, Wake-on-LAN, auto power-on, diskless boot, and watchdog functions.
Specifications
|
Processor |
CPU |
R7 H255 onboard 16GB/24GB |
|
|
Chipset |
Intel® SOC |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
Onboard LPDDR5 memory (6400MT/s) |
|
Storage |
M.2 |
2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Display |
Output |
HDMI 2.1 + DP 2.1 |
|
Network |
Chipset |
2*2.5G(INTEL I226V) |
|
I/O |
External Interfaces Internal Interfaces |
3×USB 3.0 / 1×USB 2.0 AC100–240V, 1×DC 19V power input (5.5×2.5mm) WiFi 6E / Bluetooth 5.2 (AX210) |
|
Power |
Power Supply |
DC 19V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
132×132×50.5mm Barebone unit ≈605g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Storage |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCR7162STM |
R7 H255 Onboard 16G 16G+256G SSD |
|
AOS-NUCR7242STM |
R7 H255 Onboard 24G 24G+256GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure, and other fields.
F&Q
Q1: What processor and memory configurations are available?
A: This model supports the AMD Ryzen 7 H 255 processor with either 16GB or 24GB of onboard LPDDR5 memory operating at 6400MT/s.
Q2: Can the SSD storage be upgraded?
A: Yes. It provides two M.2 2280 NVMe interfaces with PCIe 4.0 ×4 connectivity, allowing users to expand or upgrade high-speed SSD storage.
Q3: What display, network, and expansion interfaces are supported?
A: It supports HDMI 2.1, DisplayPort 2.1, USB4 Type-C, dual independent displays, dual 2.5GbE LAN, MCIO PCIe 4.0 ×4, WiFi 6E, Bluetooth 5.2, three USB 3.0 ports, and one USB 2.0 port.
