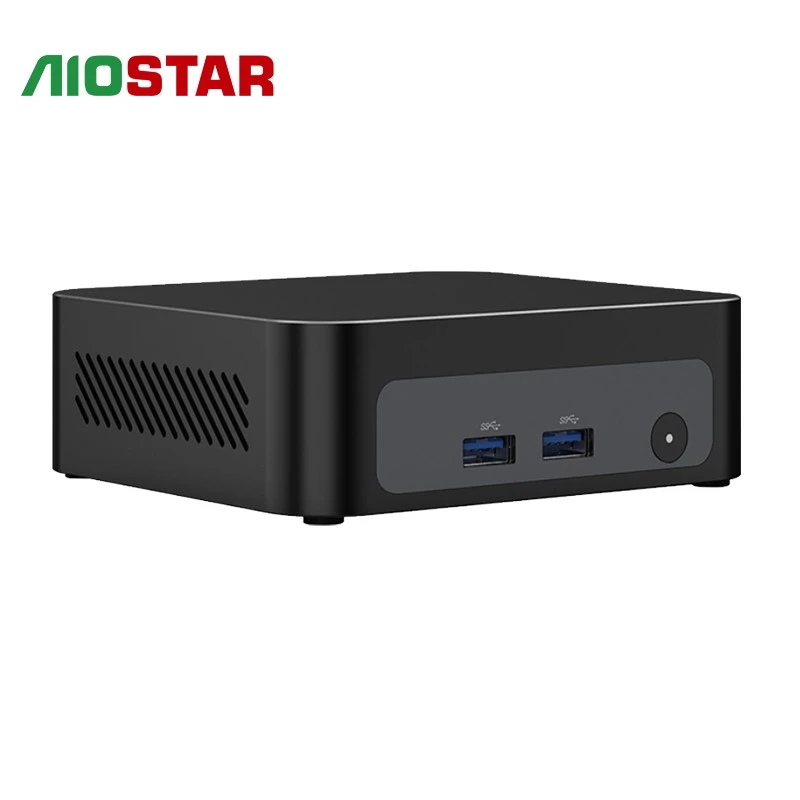

Designed for flexible deployment, this AMD mini PC supports dual DDR4 SO-DIMM memory, dual M.2 storage, two HDMI outputs, a full-function Type-C port, WiFi 6, Bluetooth 5.2, and Gigabit LAN. Wake-on-LAN, auto power-on, watchdog, and wall-friendly installation make it suitable for business, embedded, and industrial projects.
Specifications
|
Processor |
CPU |
Ryzen R7-5800U / R7-5825U / R5-7530U / R7-7730U |
|
|
Chipset |
AMD |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
8GB/16GB, 2×SO-DIMM, DDR4, up to 3200MHz |
|
Storage |
M.2 |
M.2 NGFF SATA+PCIE (2242 *1+2280 *1) |
|
Display |
Output |
Dual HDMI 1.4A interfaces, |
|
Network |
Chipset |
1×RJ45 1.0G LAN port(RTL8111H) |
|
I/O |
External Interfaces Internal Interfaces |

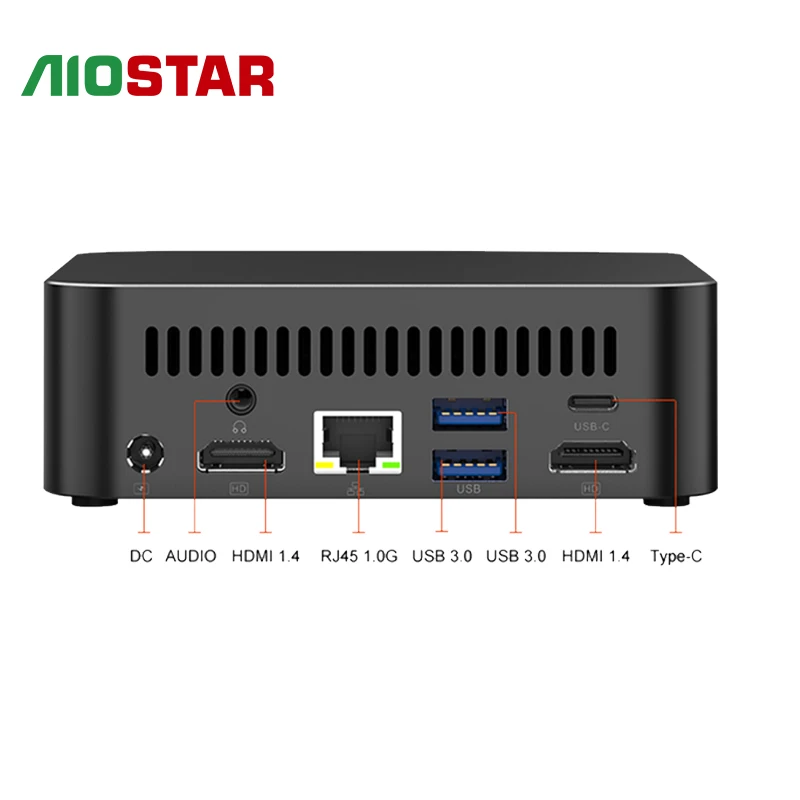

4×USB(front: 2×USB 3.1; rear: 2×USB 3.0) AC100–240V, 1×DC 19V power input(5.5×2.5mm) |
|
Power |
Power Supply |
DC 19V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
105×115×35mm Barebone unit ≈340g Power adapter + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCAR7U162STP |
R7-5800U / R7-5825U / R7-7730U 16G+256GSSD |
|
AOS-NUCAR5U162STP |
R5-7530U 16G+256GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure, and other fields.
F&Q
Q1: Which AMD processors are available for this NUC Mini PC?
A: It supports AMD Ryzen 7 5800U, Ryzen 7 5825U, Ryzen 5 7530U, and Ryzen 7 7730U processors. The processor can be selected according to the required performance and project budget.
Q2: Does this AMD NUC Mini PC support multiple displays?
A: Yes. It provides two HDMI Type-A interfaces that support synchronous or asynchronous dual-display output. It also includes a full-function Type-C port for compatible display and peripheral connections.
Q3: Can the memory and storage be upgraded?
A: Yes. It provides two DDR4 SO-DIMM slots supporting speeds up to 3200MHz and two M.2 storage interfaces, including one M.2 2242 slot and one M.2 2280 slot with SATA and PCIe support.
