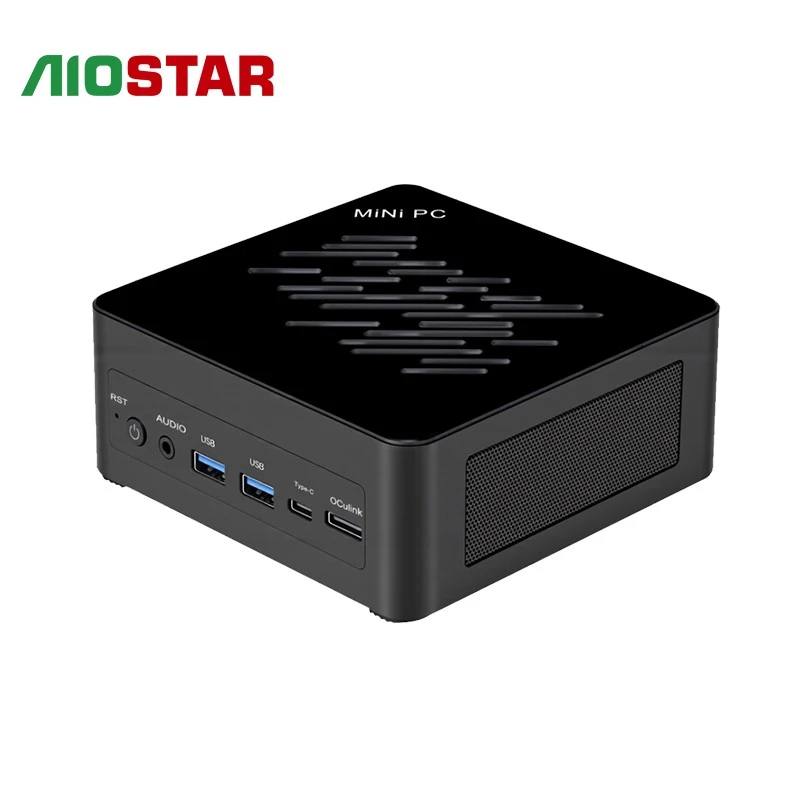

Built for flexible upgrades, this NUC Mini PC supports dual DDR5 memory slots, dual PCIe 4.0 NVMe SSDs, OCuLink expansion, USB4 Type-C, HDMI 2.1, DisplayPort 2.1, dual 2.5GbE LAN, WiFi 6, and Bluetooth. Wake-on-LAN, auto power-on, diskless boot, and watchdog functions enable reliable commercial and industrial deployment.
Specifications
|
Processor |
CPU |
R9 6900HX, R7 7840HS, R9 7940HS, R7-8745HS, R7-8845HS, R9-8945HS, R7-H255 |
|
|
Chipset |
AMD |
|
|
BIOS |
AMI 32Mbit, supports diskless boot, Wake-on-LAN, auto power-on, watchdog and other functions |
|
Memory |
Capacity |
2×SO-DIMM DDR5 slots (up to 5600MHz) |
|
Storage |
M.2 |
2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Display |
Output |
HDMI 2.1 + DP 2.1 |
|
Network |
Chipset |
2×RJ45 2.5G LAN ports (I266V) |
|
I/O |
External Interfaces Internal Interfaces |
2×USB3.0 / 2×USB2.0 2×M.2 2280 NVMe interfaces (PCIe 4.0×4) |
|
Power |
Power Supply |
DC 19V power input |
|
Watchdog |
Output Interval |
Interrupt, system restart 255-level timer interval |
|
Physical Parameters |
Dimensions Weight Accessories |
132×132×50.5mm Barebone unit ≈605g Power adapter + wall-mount bracket + individual packaging and user manual |
|
Environment |
Temperature Humidity Storage |
-20°C~60°C 5%~95%, non-condensing Temperature: -20°C~60°C / Humidity: 5%~95%, non-condensing |
|
Operating System |
Version |
Supports Windows 10, Windows 11 |
Ordering Information
|
Sales Model |
Description |
|
AOS-NUCARHS162STQ |
R9 6900HX,R7 7840HS,R9 7940HS,R7-8745HS,R7-8845HS,R9-8945HS,R7-H255 16G+256GSSD |
Application Fields
Suitable for intelligent transportation, industrial control, digital signage, education, restaurants, hotels, shopping malls, company meetings, government information disclosure, and other fields.
F&Q
Q1: Which processors are available for this AMD NUC Mini PC?
A: Available processor options include AMD Ryzen 9 6900HX, Ryzen 7 7840HS, Ryzen 9 7940HS, Ryzen 7 8745HS, Ryzen 7 8845HS, Ryzen 9 8945HS, and Ryzen 7 H 255.
Q2: Does this NUC Mini PC support external graphics expansion?
A: Yes. It includes an OCuLink interface for connecting compatible external graphics solutions and other high-bandwidth PCIe expansion devices.
Q3: Can the memory and storage be upgraded?
A: Yes. It provides two DDR5 SO-DIMM slots supporting speeds up to 5600MHz and two M.2 2280 NVMe interfaces using PCIe 4.0 ×4 for high-speed SSD expansion.
